Eyan Machine Tools Co. Ltd.

Taichung Hsien, Taiwan

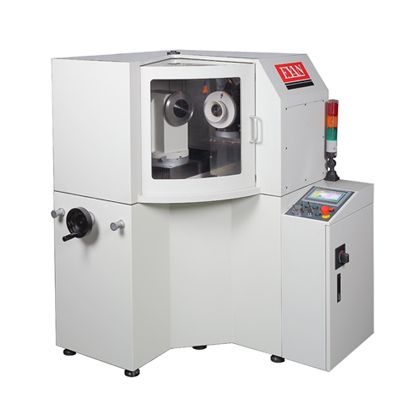

Cnc circular knives & slitter knives grinding machine (cvh 500d) circular knives grinder with precise snuciure design and user-friendly design can have further adjustments on forwarding cutting even after closing the splash guard. It is much safer and reduces noses greatly - a precise and environmental machine. Cvh500 cnc is an up-to-date circular knives grinder wilh the most advanced design in its appearance and structure. It also owns a number of patents from taiwan, u.s. And europe specification table: measurements standard accessoriesgrinding rangecircular knife diameter : 30 500 mm fully enclosed splash guard : 1 pcswivel angle : 90 coolant system : 1 setknife rotational speed : 175 rpm saw blade clamp 90 mm : 1 setz-axis ac servo motor : 400 w saw blade clamp 130 mm : 1 setx-axis to and from : 18 mm min working lamp : 1 setactual grinding wheel diameter : 120 mm 200 mm plane grinding wheel : 1 pcgrinding wheel inner diameter : 31.75 mm flange : 1 setgrinding wheel motor : 0.75 kw tool box : 1 setgrinding wheel rotation speed : 1000 4500 rpm lubrication system : 1 setcooling system motor : 16 hp -installation power : 2.0 kw -net weightgross weight : 990 1135 kg -packing damensions : 148*173*200 cm -
