Eyan Machine Tools Co. Ltd.

Taichung Hsien, Taiwan

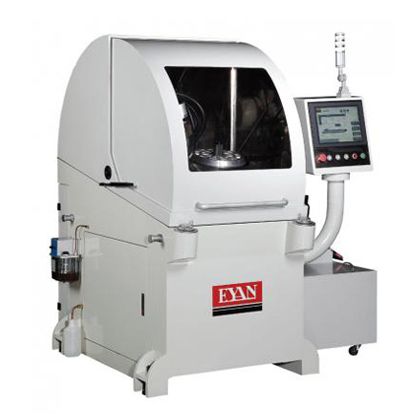

Cnc saw blade sharpening machine (ema-500 4a) ema series saw blade sharpening machines are cnc sawblade sharpening machines with four axes servo control. Fully automatic operations for sawblade outer diameter, number of teeth, sharpening amounts, cutting angles, back clearance angles, and up-down chamfer. Humanized two handwheels make re-sharpen old teeth easy to operate. The elegant, fully-enclosed splash guard is standard equipment. The guard prevents dust pollution during wet sharpening, reduces noise, and provides an excellent working environment. The new designed and special window provides widen vision and easy to see the grinded object. It is easy to open the guard and convenient to change the saw blade. The newly designed touch screen with patented graphical display which makes no more language barriers. Any language speakers can learn quickly. Add f & eco teeth type for friction saw blade. Ema models are the best choice for your working requirement. Specification table: grinding range 95-500 mm(optional 35-120 mm)(35- 120> chamfering range 160 - 500 mmnumber of teeth 10-998 teethsawblade thickness max.8mmcutting angle 0 30grinding speed 1-60 teeth minwheel diameter 200mmwheel bore 32mmwheel thickness max. 8 mmwheel motor 4.0kwwheel speed 2500-6000 rpmx-axis moto ac servomotorz-axis motor ac servomotorb-axis motor ac servomotory-axis motor ac servomotorcoolant pump motor 1.6 kwoil mist recycle device 0.55 kwmagnetic filler 25wpower require 8.4 kwnet weight 835 kgpacking gross weight 1325 kgpacking size 188 x 183 x 201 cm

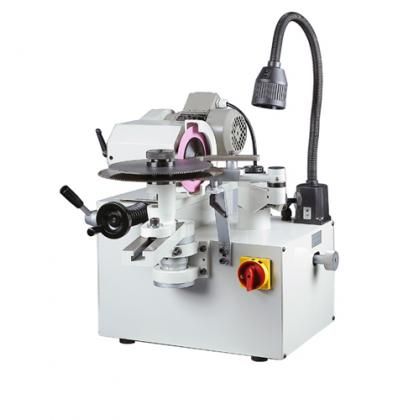

Saw blade sharpening machine (s300)superior innovation and brand new design a new generation design based on years practical experience and therefore create one profes-sional class friction saw blade sharpening machine. the patented vertical grinding direction allows you to operate it easy. brand new deign: the vertical type friction saw blade sharpening machine is made with the thinking of operator as top priority. All adjustment levers have been property arranged, which allows operator to adjust rather easily cutting angle, back dearance angle, teeth depth and pitch of saw blade. Therefore, grinding sharp saw blade became quick and precise. Patented saw blade thickness adjustment saw blade thickness is clamped by two synchronic movement mechanisms at the same time . It can help the saw blade in the center position. Therefore, no need to adjust manually the thickness of saw blade. Besides, as saw blade is clamped well , the grinding noise can be lowered. Manual speed variation the machine equipped with inverter which can control the speed of grinding. the grinding speed can be adjusted with the change of teeth pitch. Ooth profile cam industrial class specialized tooth-profile cam was designed by high accurate calculation & simulation computer system. This makes your saw blade grinding done even more simply, quickly, and accurately. grinding wheel head can swing up and down. Chamfer can be done without any need to changegrinding wheel then. carbide tungsten is welded onto the end part of pushing jaw, which can reduce the wearing of feeding jaw to minimal possible extent and can reach accurate feeding. all cast iron of this machine utilizes nodular cast iron (fcd-45) . And they have been temper-treated to ensure the accuracy and enhance wear resistance.

We are offering Cnc Saw Blade Sharpening Machine. Hss saw blade sharpener- the ultimate in sharpening machines. With quality construction, precision sharpening is simple and easy. Setup can be completed in just minutes. The elimination of time-consuming adjustment reduces labor costs. emc-620 cbn.cnc full automatic computer numerical control circular saw blade grinder is made by the innovated technology; it is full automatic cnc processing center controlled and is with precise structure, its speed is faster than other equipments of the same rank. emc-6200, the hss saw blade grinder, its foundation is made of spheroid graphite ductile iron fcd-45, that is with good vibration state damping and well movement performance, it may improve the finishing, and its thermal conductivity is low, so that the affection that caused by the environmental temperature change is little, and it does not distort. Therefore, it can maintain the stability of the machine and promote the precision and the service life. Price, moq, deliver time are negotiable, please contact us for correct quotation and product details.
