Eyan Machine Tools Co. Ltd.

Taichung Hsien, Taiwan

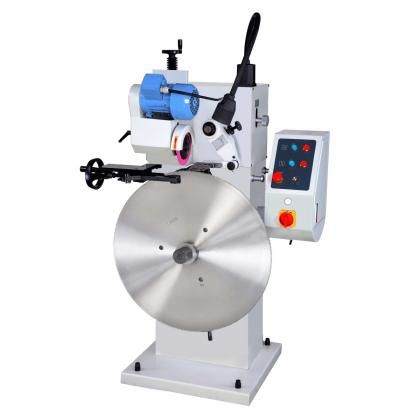

Friction saw blade sharpening machine (su-850)saw blade sharpening machine help you easily operate the machine by using the vertical grinding method. Saw blade sharpening machine adapts spheroid graphite ductile iron (fcd-45) and with the temper treatment to ensure accuracy and increase the wear resistance. The saw blade grinder skd11 is mainly made in high-carbon steel, it has been heat-treated and grinded. Besides, its pushing arm spring has been improved by using the rotary spring, so that flexibility fatigue rarely happens and ensures the accurate feed.Saw blade feeding support base is made of high-strength alloy of copper material, buried in the solid lubricant that is made by high technology; its high-load and high wear-resistant characteristics achieve the performance -- no oil supply requirement. The axis of the feed shaft is r30mm, and also has been heat treated and grinded. specifications standard accessorygrinding range: 350850 mm work light: 1 pcteeth pitch: 25 mm tool box: 1 setsaw blade thickness: 12 mm instruction manual: 1 copygrinding speed: 10 100 guide plate: 1 pccutting angle: -5 +15 grinding wheel: 10 pcsgrinding wheel diameter: 180 mm -grinding wheel motor: 0.75 kw -transmission motor: 0.37 kw -grinding wheel speed (50hz60hz): 38004500 rpm -net weight gross weight: 253 312 kg -package size: 85 x 113 x 176 cm

We are offering precision drill sharpener / drill grinder. Ey-32a precision drill sharpener is mainly applied to 1) cnc lathe, 2) cnc machining center, 3) die making.break through agaon in technology of drill sharpener, quick and precise1. Cam device: this machine comes with four cams ranging from no.1 to no.4. Simply change the cam when grinding drill, end mill cutter, chamfering cutter, tap, center drill and etc. 2. Drill positioning device: grind drill of different diameters by adjusting the graduation according to the desired diameter and placing any cutting edge of the drill parallel to the positioning device. This method applies to all others. 3. The first one created that moves in up-down vibration to sharpen drill bits. Use a chuck to clamp drill with up and down vibration by winding the handle. The angles will be changed automatically to sharpen front edge angles, debris angle, slice drills and still center point, all of which can be clamped and sharpened together in one process. It displays high efficiency and high precision sharpening drills. 4. Adjusting button for rake angle of drill bits: the adjusting button controls the size of rake angle of the drill. When sharper edge is desired, turn more of the number-controlled button to get a greater graduation reading so as to have a sharper edge ground. Price, moq, deliver time are negotiable, please contact us for correct quotation and product details.

We are offering End Mill Sharpener and Mill Grinder. end mill sharpening machine is mainly applied to 1) cnc lathe, 2) cnc machining center, 3) die making.break through agaon in technology of end mill sharpener/grinder, quick and precise 1. End mill positioning device: grind end mill of different diameters by adjusting the graduation, according to the desired diameter and placing any cutting edge of the end mill parallel to the positioning device. 2. Use a chuck to clamp end mill, just rotate the handle bar, and the angles will be changed to sharpen front edge angles, debris angle, slice bits and still center point, which can be clamped and ground together in one process. It displays high efficiency and high precision for sharpening drills.
