Circular Saw Blade Sharpener

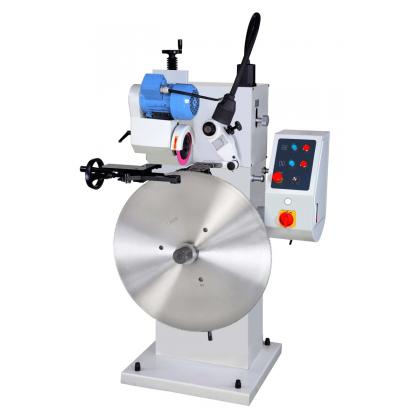

Friction saw blade sharpening machine (su-850)
saw blade sharpening machine help you easily operate the machine by using the vertical grinding method.
Saw blade sharpening machine adapts spheroid graphite ductile iron (fcd-45) and with the temper treatment to ensure accuracy and increase the wear resistance. The saw blade grinder skd11 is mainly made in high-carbon steel, it has been heat-treated and grinded. Besides, its pushing arm spring has been improved by using the rotary spring, so that flexibility fatigue rarely happens and ensures the accurate feed.
Saw blade feeding support base is made of high-strength alloy of copper material, buried in the solid lubricant that is made by high technology; its high-load and high wear-resistant characteristics achieve the performance -- no oil supply requirement. The axis of the feed shaft is £r30mm, and also has been heat treated and grinded.
specifications standard accessory
grinding range: φ350~φ850 mm work light: 1 pc
teeth pitch: 25 mm tool box: 1 set
saw blade thickness: 12 mm instruction manual: 1 copy
grinding speed: 10 ~ 100 guide plate: 1 pc
cutting angle: -5 ~ +15 grinding wheel: 10 pcs
grinding wheel diameter: ø180 mm -
grinding wheel motor: 0.75 kw -
transmission motor: 0.37 kw -
grinding wheel speed (50hz60hz): 38004500 rpm -
net weight gross weight: 253 312 kg -
package size: 85 x 113 x 176 cm
