Diaphragm Type Accumulator

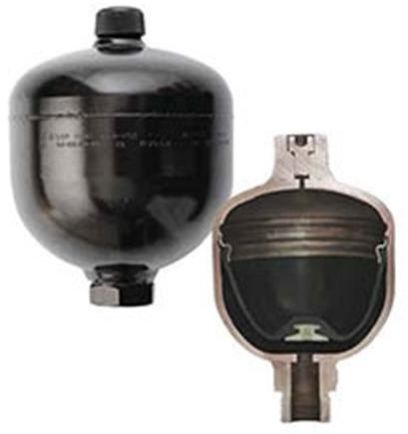

Operation of the Olaer gas loaded diaphragm accumulator is based on the considerable difference in compressibility between a gas and a liquid, enabling a large quantity of energy to be stored in an extremely compact form. This enables a liquid under pressure to be accumulated, stored and recovered at any time. The adaptation of a hydraulic shock absorber made up of a diaphragm accumulator improves driver comfort and offers immediate response times when driving over obstacles and the same flexibility for variable operating conditions. 0 < speed < 50 kph 3.5 < load variation < 100% Identical flexibility depending on your use. The same EC pressure directive (PED) compliant accumulator can be used in over 35 destination countries, thus facilitating their free movement. The technical characteristics are as follows: Minimum/maximum temperature allowable ( Celsius) : -20/+80 for standard nitrile elastomers for models between 0.5V1.4 Litre -10/+80 for standard nitrile elastomers for models 2 Litre and 0.32Litre 35/+80 for hydrin elastomers

Bladder Accumulators

The accumulator comprises a forged or welded steel shell, a rubber bladder and anti-extrusion system. Pressure: Maximum working pressure: (PS) = 40 bar. Operating pressure (OP): 14 to 80 bar. Volume: from 0.5 to 575 Litres Shell Material: Options include; alloyed steel, stainless steel, aluminium, titanium and composites. Bladder Materials: Various bladder materials available which are compatible with a wide range of fluids and temperatures. Anti-extrusion System: perforated bushing. Approvals: PED 2014/68/EU, ATEX, ASME VIII div 1, SELO, CUTR, DNV, BUREAU VERITAS MARINE, ABS, Germanischer Lloyds. Specials: For special constructions please consult Parker. Maximum pressure differential (P2/P0): 4:1 Nitrogen gas pressure : Never precharge accumulators at a pressure exceeding 20 bar at maximum working temperature with nitrogen purity > 99, 8% N2 class 2.8.

Piston Accumulators

Operation of the Parker Olaer gas loaded piston accumulator is based on the considerable difference in compressibility between a gas and a liquid, enabling a large quantity of energy to be stored in an extremely compact form. This enables a liquid under pressure to be accumulated, stored and recovered at any time. When fluid under pressure enters the fluid side of the accumulator, the piston is pushed towards the gas side and the Nitrogen gas is compressed. Parker Olaer piston accumulators can be supplied with a large variety of seals suitable for high and low pressures and temperatures as well as special fluids. This is part of the flexibility of the Piston Accumulator, materials in all components can be chosen to best fit the application.

ELECTRO HYDRAULIC TRAINER KIT

 LIST OF EXPERIMENTS

Following experiments can be carried out using the Hydraulic Trainer Kit Model F-02.

• Basic Hydraulic Circuit (Manual /Electrical- Linear Motion)
• Basic Hydraulic Circuit (Manual /Electrical- Rotary Motion)
• Load Control Circuit (Sequencing, Counter Balance)
• Flow Control Circuit (Meter – In)
• Flow Control Circuit (Meter – Out)
• Pressure Holding Circuit

ELECTRO HYDRAULIC TRAINER KIT WITH PLC

• LIST OF EXPERIMENTS
• Direct Operation Of Double Acting Cylinder.
• Direct Operation Of Hydraulic Motor.
• Speed Control Of Double Acting Cylinder – Using Metering-in And Metering-out Control.
• Speed Control Hydraulic Motor – Using Metering-in And Metering-out Control.
• Automatic Operation Of Double Acting Cylinder In Multi Cycles -using Pressure Sequencing Valve
• Operation Of A Double Acting Cylinder Using Solenoid Operated     Directional Control Valve.
•  Automatic Operation Of Two Double Acting Cylinder In Multi Cycles Using Solenoid Valves And Proximities In The Following Sequence

            A+B+A-Bb.

            A-B+A+Bc.

            A+B+B-Ad.

            A&B+A-B

• Direct Operation Of A Hydraulic Cylinder Using Solenoid Valve And  Latch Circuit.
• Direct Operation Of A Hydraulic Motor Using Solenoid Valve And Latch Circuit
• Operation Of A Hydraulic Cylinder Using And Logic Control.
• Operation Of A Hydraulic Cylinder Using Or Logic Control.
• On-delay Timer Control Of Hydraulic Cylinder
• Off-delay Timer Control Of Hydraulic Cylinder.
