Our Product / Services

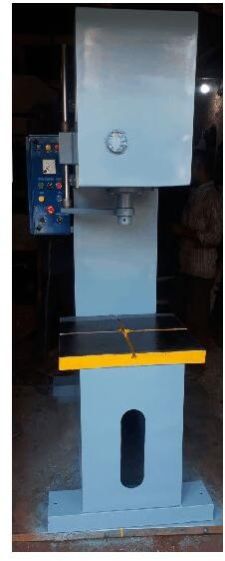

Our offered Product range includes C Frame Hydraulic Presses Manufacturer and Supplier in Maharashtra, C Type Press Machine, 25 TON C TYPE HYDRAULIC PRESS, C Type Hydraulic Press and C Frame Hydraulic Press Machine Manufacturer and Supplier in Maharashtra.
We Offer C-frame Type Presses in a Variety of Designs to Suit Varied Applications. These Presses Can Also Be Equipped With Removable Bolsters, Die Cushion, Automatic Feeding and Material Handling Systems for High-speed Production Applications.
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days
| Capacity | 60 ton |
| Stroke | 225 mm |
| Ram to Bed | 650mm |
| Working Table Size | 550mm X 600mm |
| Working height table | 750mm |
| Throat | 230mm |
| Hole in Table | 60mm |
| Small length | 460mm |
| Table Depth | 460mm |
| long length (optional) | 1050mm |
| Table width | 250mm |
| Hydraulic oil tank | 150 Liters |
| Hydraulic Cylinder | Double Acting type |
| T-slottingtable |
|
| Cylinder Dia Mtr | 178mm |
| Cylinder ID | 150mm |
| Ram Dia Mtr | 100mm |
| Height of Cylinder | 500mm |
| Working Pressure | Pressure 300 Kg / Cm2 suitable for 60 ton |
| Dimension | 600 X 500 X 600mm (L X W X H) |
| Motor | 7.5 HP 3 Phase (Siemens or Hindustan) |
| Consisting Of Drain Valve, Oil Tank, Oil Level Indictor, Oil filter cum breather | High Pressure Piston Pump, Pump Motor Camping, NRV pressure Gauge with Adaptor Along with Circuit Block |
| Machine OperatioN | With Semi-Automatic panel Board (Push button, Foot Switch, Limit Switch & Inches adjustment ) |
| All Boy Plate | 32mm (M.S Profile Cutting Plate ) |
| Weight of Machine | 3 to 3.5 tons |
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 30 TO 35 DAYS
| Capacity | 25 ton
|
| Stroke | 300mm
|
| Ram to Bed | 570mm
|
| Table height | 700mm |
| Bed size | 800 X 480mm |
| Table Depth | 240mm |
| long length (optional) | 800mm |
| Table width | 480mm |
| All body pleat thick | 20mm |
| T- slotting table | 1/2"
|
| Overall Dimension | 2200 (H) X 1100 (L) X 1260 (W)mm |
| Machine Of Weight | 1.2 to 1.5 ton Approx |
| Motor | 5 Hp 3 Phase 1440 RPM Make Hindustan Siemens |
| Oil Tank | 100 Liters |
| Operation | With panel push Button, Foot Switch, limit switch And Sensor |
| Pump | 1 High Pressure, Make polyhedron |
Additional Information:
Payment Terms : T/T
Packaging Details : WOODEN BOX
Delivery Time : 20 TO 30 DAYS

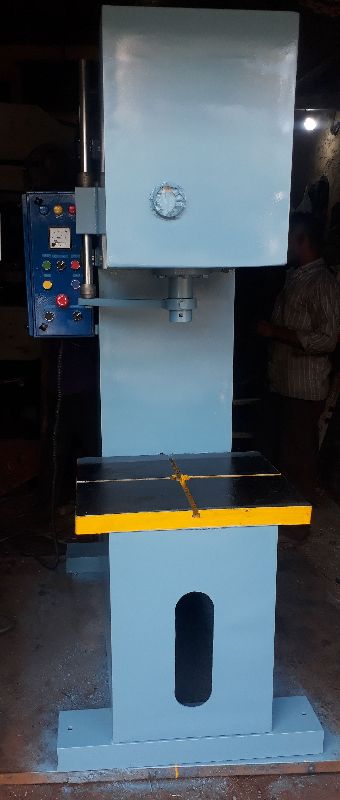

C Type Hydraulic Press Machine
Additional Information:
Payment Terms : T/T
Packaging Details : wooden box
Delivery Time : 45-60 DAYS
Technical Details
| Capacity | 3/8Inch to 1Inch | 1/2Inch to 2Inch | 1/2Inch to 3Inch | 1/2Inch to 4Inch | 2Inch to 6Inch |
| Pressure in Tons | 10 | 15 | 15 | 20 | 30 |
| Formers of C' Class Pipes |
3/8Inch, 1/2Inch 3/4+&1Inch |
1/2Inch, 3/4Inch, 1 1.1/4Inch, 1.1/2Inch, 1.1/4Inch, 1.1/2Inch & 2Inch |
1/2Inch, 3/4Inch, 1Inch, 1.1/4Inch, 1.1/2Inch, 2Inch, 2.1/2Inch, & 3Inch |
1/2Inch, 3/4Inch, 1Inch, 1.1/4Inch, 1.1/2Inch 2Inch, 2.1/2Inch, 3Inch & 4 |
2Inch, 2.1/2Inch 3Inch, 4Inch 5Inch & 6Inch |
| Extension Pc. | -X- | -X- | Yes | Yes | Yes |
| Standard Accessories |
Two Dolly Blocks with Pins and three leg stand |
Two Dolly Blocks with Pins and on Castor Wheels |
|||
We Offer C-frame Type Presses in a Variety of Designs to Suit Varied Applications. These Presses Can Also Be Equipped With Removable Bolsters, Die Cushion, Automatic Feeding and Material Handling Systems for High-speed Production Applications.
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days
