Our Product / Services

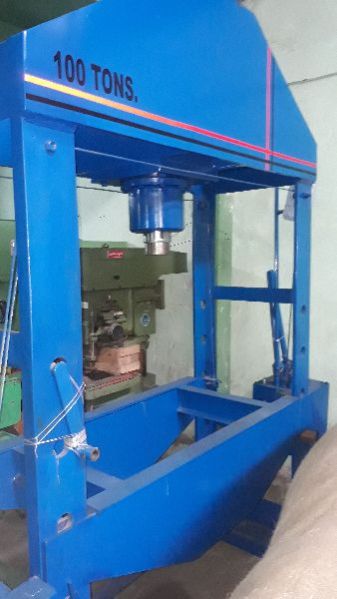

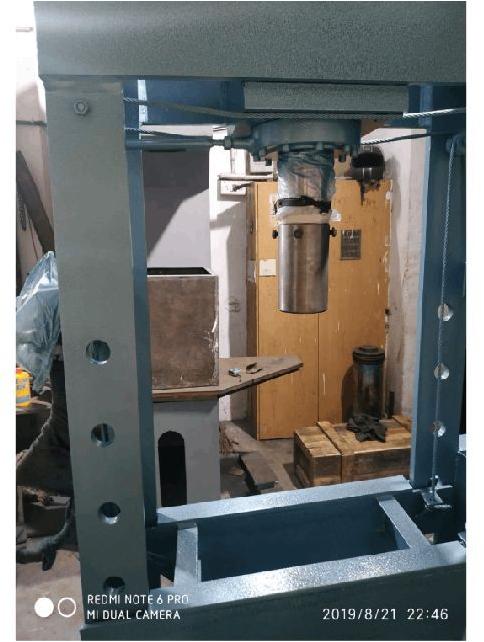

Our Complete range of products are 100 Ton Power Operated Hydraulic Press, Hydraulic Press Brakes Exporters Manufacturers Suppliers in Mumbai, 20 Ton Hand Operated Hydraulic Press Machine, Hand Operated Hydraulic Press Machine and 60 Ton Hand Operated Hydraulic Press Machine.
Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days

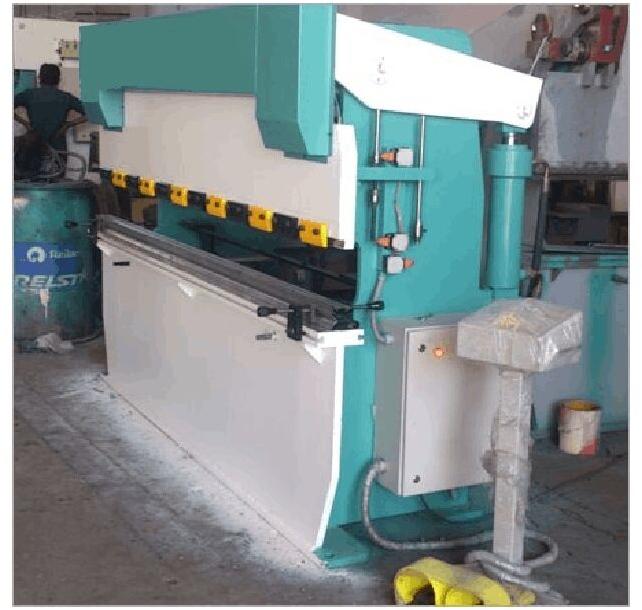

Hydraulic Press Brake Machine Has a Facility to Program the Various Jobs With Complex Bending Sequence. The Program Gives Facility to Bend at Different Bending Degrees, Different Back Gauge Positions and at Different Open Positions.
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days
Quotation for 20 Ton Hand Operated Hydraulic Press
| Capacity | 20 TON |
| Between Column Length width size | 750 X 250mm ( L x W) |
| Between Ram To Bed size | 180 X 800 mm |
| Ram stroke | 180mm |
| Ram Dia | 50mm |
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden box
Delivery Time : 7 to 10 days

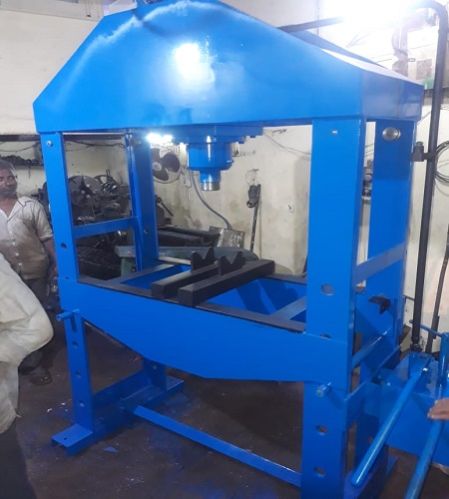

Hand Operated Hydraulic Press :
Additional Information:
Payment Terms : T/T
Packaging Details : WOODEN BOX
Delivery Time : 7 to 10 days
Technical Details
| Tons | Between Column Length x breadth mm x mm |
Between Ram to Bed Min. Max. mm x mm |
Travel of Ram mm |
|---|---|---|---|
| 5 | 600 x 175 | 75 x 600 | 125 |
| 10 | 625 x 200 | 75 x 600 | 140 |
| 15 | 650 x 200 | 75 x 600 | 150 |
| 25 | 850 x 325 | 180 x 910 | 180 |
| 40 | 950 x 375 | 180 x 910 | 190 |
| 50 | 1000 x 415 | 180 x 950 | 200 |
| 60 | 1050 x 450 | 180 x 975 | 205 |
| 75 | 1150 x 525 | 180 x 975 | 220 |
| 100 | 1200 x 625 | 180 x 975 | 235 |
| 150 | 1300 x 700 | 180 x 975 | 300 |
60 Ton Hand Operated Hydraulic Press
| Capacity | 60 TON |
| Between Column Length width size | 1050 X 450mm (L x W) |
| Between Ram To Bed size | 180 X 950 mm |
| Ram stroke | 215mm |
| Ram Dia | 95mm |
| Body Plate in mm | 20mm |
| Wight of Machine | 700 to 750kg |
| Machine Size | 1700X 790X2300(LXWXH) |
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 25-30DAYS
Hydraulic Scrap Bailing Machine
Additional Information:
Payment Terms : T/T
Packaging Details : wooden box
Delivery Time : 25-30DAYS
If you are looking for a hydraulic Tyre Bailing machine in India, you are in the right place. Our company Kiran Hydraulics is the best. This Machine is specially designed for Tyre Bailing for limited quantity Hysan. is the leading manufacturer and exporter of Vertical Balers for Tyres in India.
Our manufactured Vertical Tyre Baling Press Machine is widely demanded in the market for its high performance and low maintenance. Our offered Vertical Baler is fabricated under the guidance of ingenious professionals using premium quality components and ultra-modern technology in tandem with set market standards.
All Single Box Hydraulic Baling Press Machine models are supplied with an instruction manual. Our all press is Quality assured, Cost-effective, and Low maintenance. These machines are available in different bale sizes.
We are considered as a prime manufacturer and supplier of fine grade Hydraulic tyre bailing machine. Offered machine is highly demanded in the construction, automobile and manufacturing industries. Provided machine is well suited to be used to compact material with high rebound force into dense bales like tyres.
Order our machines and get them delivered to your doorstep today.
| Main cylinder | 80 Ton |
| Side Cylinder | 100 Ton |
| Force on Lead | 30 Ton |
| Bale Extracting cylinder | 10 Ton |
| Type Of Cylinder | Double Acting Cylinder |
| Bailing Chamber | 1000 x 500 x 500 mm (L x W x H ) |
| Stroke Length Adjustable | 1100mm |
| Bale Size | 200 to 200 x 200mm (L x W x H) |
| Weight Of Bale | 40 to 45 Kg |
| Operation Of the Machine | Auto Cycle Though panel board with Push Button |
| Motor | 10 HP 3 Phase 1440rpm |
| Oil | Hydraulic Oil-68 |
| Pump | Made of Yuken, Polyhedron |
| Working Pressure | 300 Kg |
| Oil Tank | 400 LTRS |
| Cycle Time | 70 - 90 Sec (Approx) |
| Approx. Weight Of Machine | 5.0 to 5.5 Ton (Approx) |
| Ram Movement | Horizontal Type Down Stroke |
| Hydraulic Valves Power pack Manufacturer | Yuken, Polyhedron |
| Heat Exchanger ( Optional) | Water Cooling |
| Loading of material | Manual |
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 30 TO 45 DAYS
