Our offered Product range includes Plate Bending Machine, Pyramid Type Hydraulic Plate Bending Machine Supplier from Maharashtra, 3 Roller Hydraulic Plate Rolling Machine and Hydraulic Plate Rolling Machine.
Kiran Hydraulics is the best plate-bending machine manufacturer. We are a prominent organization engaged in manufacturing, supplying and exporting Plate Rolling Machines. These are widely used for industrial purposes owing to their features such as superior performance, safe operations and longer functional life. Our clients can avail of these machines at highly competitive prices as per their requirements.

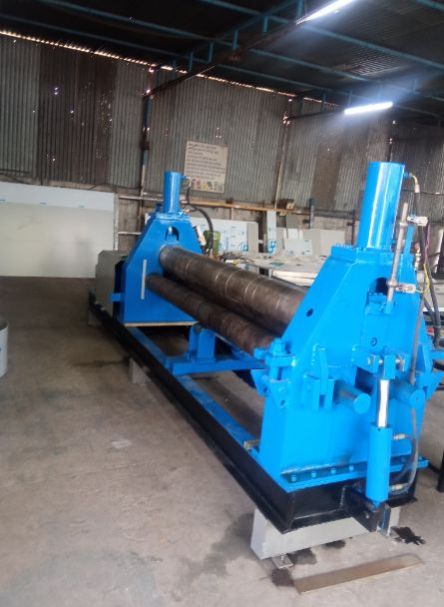

Roll Bending Machine is widely used in the industry for bending plates of different thickness and sizes. It uses a set of three or more cylindrical rolls to bend the plate. The upper roller is fixed, while the lower roller is movable. The side rollers are used to support the lower roller and guide it during the bending process. The machine can be operated manually or automatically.
Automatic machines are more expensive but offer higher productivity. Roll bending machine is used to create circular, cylindrical or conical shapes from flat metal sheets. It is widely used in the shipbuilding, pipeline, and boiler industries. To learn more about the roll bending machine.
Contact us and get the best plate-bending machine manufacturers in India.
We Offer a Wide Array of Excellent Quality 3 Roll Hydraulic Plate Bending Machine. Manufacturer and Supplier of Hydraulic Plate Bending Machine From Mumbai, India.
1. Performance
2. Reliability
3. Quality
4. Technology
5. Experience
6. Service
Additional Information:
Payment Terms : T/T
Packaging Details : Standard Export Packaging
Delivery Time : 20 TO 30 Days
vMake :-
Model:- KHPR 2500
Machine Size:- 2500mm Width X 12mm MS Plate
Top Roll Dia :- 240mm (+/-3)
Bottom Roll Dia :- 190mm (+/-3mm)
vMotor Details :-
Motor :- 15HP, RPM 960, Horizontal Foot Mounted, IE2, IP-55
Hydraulic Motor :- 5 HP RPM 1440
Make Motor :- SIEMENS /HINDUSTAN/ABB
vGear Box Details:-
Gear Box Type :- Worm Reduction
Make :- Premium
Model:- U-600
Ratio :- 30:1
Center Height :- 6
Top roll attached in two cylindered 50 ton
vOther Details :-
Guide Roller :- Provided
Side Support :- Yes
Extension Roll :- Yes
External Gears:- 7 Gear Attachment
Top Roll Hydraulic
Cylinder 2Nos Size : - 40 ton
Panel/switch :- Push Button Station
Lubrication Sump :- Yes
Packing :- Poylthene Wrapping
Foundation And GA Drawing:- Provided
Scale Pointer:- Provided
Operation Manual:- Provided
vMaterial of Construction :-
Top Roll :- EN8/EN9
Bottom Roll :- EN8/EN9
Side Screw 1Nos :- EN8/EN9
7Gear MOC :- New Forging or Bar Stock
MS Structure And Plate:-IS2062(Main Supplier Sail/RINL/ESSAR/JSPL)
7 Gears:- New forging And machining
Painting :- As per Customers requirement
Site Installation:- Installation, Level Check And Trail Test
Machine Weight:- 3.5 to 4.0 tons
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box
Delivery Time : 40 to 45 Days
plate bending machine
Additional Information:
Payment Terms : T/T
Packaging Details : WOODEN BOX
Delivery Time : 60- 75 DAYS
