Our Products
Our offered Product range includes Steel Iron Worker, Ring Turning Machine, General Purpose Bench Top Reactors, High Pressure-High Temperature Reactors and Micro Reactor Systems.
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Case Packing
Delivery Time : four weeks
Iron Worker Machine for Steel Metal Cutting, Punching, Shearing, Round Square Bar Cutting of Channels, Angles, T Section.
This is a heavy duty Steel Fabricated Body mechanical motorised Iron Worker machine.
The machine is ideal for most steel fabricators engaged in mild steel fabrication involving working with Steel Channels, Angles, T section and for punching operations besides the usual flat steel sheet cutting as well as Round and Square Bar Cutting.
The machine is supplied complete with suitable 10 HP, three phase AC electric motor, push button ON/OFF starter and having cutting capacity as noted under:
We can offer you our best quality, heavy duty steel fabricated body three roll pyramid type plate bending machines as per your requirements.
We can supply you both mechanical and hand operated plate bending machine.
Machine is supplied with centralized lubrication system.
Heavy duty steel fabricated housing amply proportioned to withstand maximum strain.
Rolls are of forged EN-8 material and run in collar type gun metal bushes.
Base is of heavy duty girders.
Drive through a series of hob cut steel gears and worm reduction gear box.
Screw jack is provided to keep the top roll in horizontal position when trunion is retracted to facilitate removal of formed shells.
The photo shows our MASTER standard 2500mm x 25mm capacity bending roller fitted with 30.0 HP three phase AC electric motor, Siemens make ON/OFF Push Button Starter with Siemens make Reverse/Forward switch. We can supply you machine to bend sheets upto 32mm Plate.

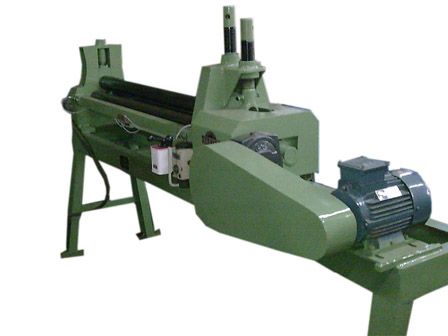

This is steel fabricated body three roll motorised bending roller.
The machine is supplied complete with stand of suitable height. The drive is through series of properly hardened steel gears. This machine is available in various sizes and is suitable to work with mild steel sheets of upto 1500 mm length x 3.0 mm thickness in mild steel.
Manually Operated Motorised Draw Bench Machine suitable for wire and pipe drawing operations.
This is an excellent quality heavy duty five feet length motorized gear box driven draw bench.
This machine is ideal to draw soldered hollow tubes of copper, gold and silver as well as to draw wire to obtain precise diameter wire.
It isequipped with heavy duty chain and is fitted with single phase AC drive electricals for longer life and maintenance free operation. The machine uses standard diamond and carbide drawing dies. It is fitted with electrical control panel complete with speed controller and light indicators. Italso fitted with both voltage and currrent drawing meter to show excess currrent draw in case of excessive load due to hardjobs to prevent damage to the machine.
This machine is widely used by manufacturers of hand made gold and silver chains and bracelets. This machine helps in obtaining a solid copper base Gold cover wire by winding and drawing through this machine a solid copper wire surrounded by suitable width gold strip. The solid wire obtained through this machine is then used to make various size and shape of Links used in bracelet making and then the inside copper is removed and hollow light weight gold bracelet is obtained.
The machine is also equipped with finely designed self adjusting jobholding vice to grip the wire or tube for proper holding. The machine issturdy and easy to use.

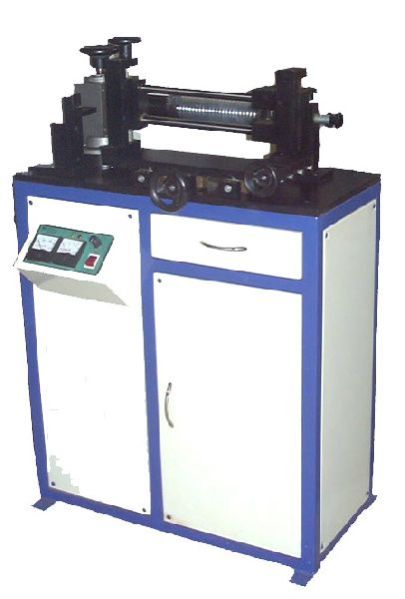

This floor model Hollow Tube making machine is a motorised model tube forming machine ideal for making hollow gold and silver rings and bracelets. Gold or Silver strip of metal is fed through the hollow drawing die to get the required shape of hollow tube depending on the shape of the drawing die. One can draw hollow round, oblong or heart shape hollow pipes which is wound onto the mandrel of required diameter.
This hollow tube drawing machine is supplied with suitable drive Electric motor suitable to run on 220 volt single phase supply fitted to special gear box drive with electric control panel box to allow variable speed control.
Extremely accurate Strip cutting machine is also offeredwith circular knives made with special steel.This machine is also available with motor drive for motorised operation with on/off switch and V belt.
These jewellers' hand presses are available in six sizes. These are solid body heavy presses with 25 mm one inch hole in ram. The presses are supplied with wheel & handle and die fixing clamps. Suitable size automatic die holder is also supplied with each press. Also available are Cutting, Embossing & Coining Dies.
| We can supply different kinds of design rolls forworking with our bangle grooving machine. Suchfew samples are shown here. Different shapes with multiple half rounds with different surface texture designs are possible. |
This is a straight sided, single action press having steel plate fabricated construction duly stress relieved, with 8 point gibbling of slide, fitted with pneumatically operated combined single disc friction clutch and brake, motorized automatic lubrication with re circulation arrangement and manual slide adjustment. It features inter-locking of functions and dual solenoid valve to ensure "FAIL SAFE" operations. The variable speed drive for wide range and quick selection of speed together with above features makes this press extremely productive, reliable and safe.
The press is supplied complete with electricals, comprising electric motor, control panel, die area light, preset production counter, anti-jam releasing device, electro-pneumatic safety controls. It is available in 25, 40, 63, 100 and 160 Tons capacity. Please ask for further details on High Speed Roll Feeder, Straightner, and Decoiler available as optional extra equipment.
This is steel fabricated body three roll motorised bending rollers. The machine is supplied complete with stand of suitable height. The drive is through series of properly hardened steel gears. This machine is available in various sizes and is suitable to work with mild steel sheets of upto 1500 x 3.0 mm. For higher capacities, three roll pyramid type plate bending machine is ideal.

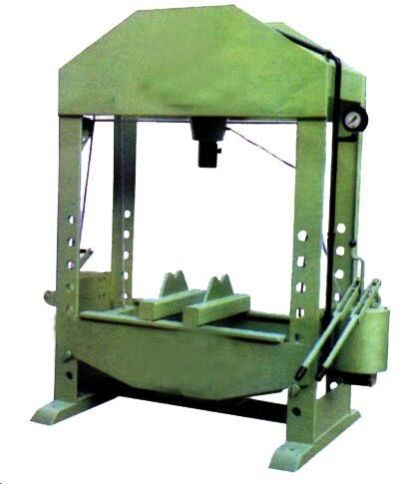

Two types of Hydraulic Presses are available. Hand Operated Hydraulic Presses and Motorised Hydraulic Presses. These presses are All Steel fabricated body construction Hand or Motorised Hydraulic Presses. Both Presses suitable for embossing, pressing, drawing, broaching, straightening, bending, riveting, breaking, jointing, opening etc.These are provided with two stage hand pump and useful in all type of industries
The Low pressure pump is used for rapid advance of position at low pressure. The High pressure cylinder is provided with a bronze lining and is used for slow advance at high pressure. Motorised models are supplied with suitable 440 volts 3 phase AC electric motor & starter.
This is a universal 3 D pantograph milling and engraving machine.
It's a robust, accurate and reliable machine with a pantograph arm length of 400 mm and with reduction ratios from 1 : 1.5 to 1 : 10. The main spindle is fitted with high precision bearings to provide twelve speeds from 1, 200 to 13, 000 rpm. Swivelling points of the pantograph arm run in needle roller bearings making tracing very accurate.
The machine is supplied with electric motor with starter, machine lamp, foot operated start-stop switch, endless cord belt, spindle collets of 3, 4, 5 & 6mm size, cutter setting bar and necessary spanners. Optional access. include Versatile single lip cutter grinder, rough milling attachment, set of letters, rotary table etc
