Our Products

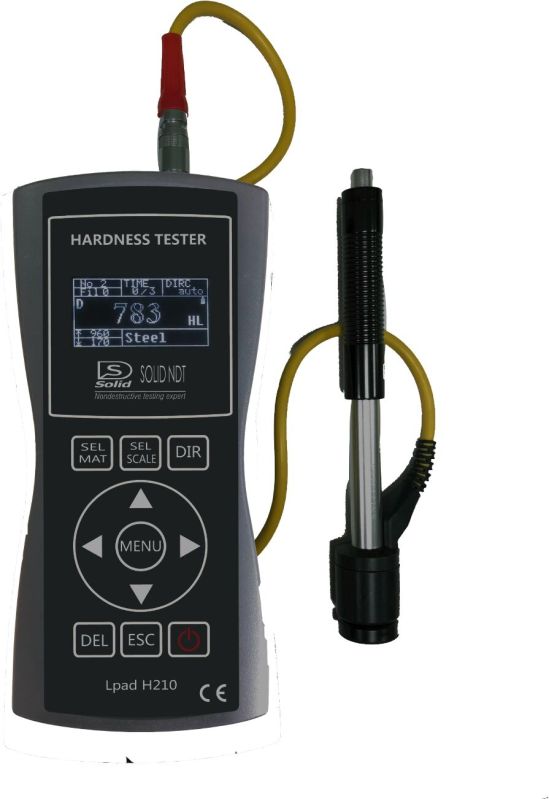

Our Complete range of products are Handheld Leeb Hardness Tester Leen H210, Pen Type Leeb Hardness Tester, Portable Hardness Tester, LS253 Leeb Hardness Tester Probe MI253-DC and Portable Leeb Hardness Tester (MI-251D).
1. Measurement Range
\n\n
• Hardness Scales:
\n\n
HLD: 170 - 960
\n\n
HRC: 17.9 - 69.5
\n\n
HB: 19 - 683
\n\n
HV: 80 - 1042
\n\n
HS: 30.6 - 102.6
\n\n
HRA: 59.1 - 88
\n\n
HRB: 13.5 - 101.7
\n\\\\n
\n2. Impact Directions: Up, down, horizontal, slanting up, slanting down
\n\n
3. Measuring Materials
\n\n
• Steel and cast steel
\n\n
• Alloy tool steel
\n\n
• Stainless steel
\n\n
• Gray cast iron
\n\n
• Nodular cast iron
\n\n
• Cast aluminum alloy
\n\n
• Copper-zinc alloys (brass)
\n\n
• Copper-tin alloy (bronze)
\n\n
• Pure copper
\n\n
• Forged steel
\n\n
4. Standards Compliance
\n\n
• ASTM A956
\n\n
• DIN 50156-1
\n\n
• GB/T 17394-1998
1. Measurement Range
\n\n
• Leeb (HLD): 170–960• Brinell (HB): 19–651• Rockwell B (HRB): 13.5–101.7• Rockwell C (HRC): 17.9–69.5• Rockwell A (HRA): 59.1–88• Vickers (HV): 80–1042• Shore (HS): 30.6–102.6
\n\n
2. Applicable Materials
\n\n
• Steel and cast steel• Alloy tool steel• Stainless steel• Gray cast iron• Ductile iron• Cast aluminum alloys• Copper-zinc alloy (brass)• Copper-tin alloy (bronze)• Pure copper• Forged steel
\n\n
3. Measurement Directions: 360° measurement — usable in any direction
\n\n
4. Hardness Scales Supported
\n\n
• Leeb (HL)• Brinell (HB)• Rockwell (HRC, HRB, HRA)• Vickers (HV)• Shore (HS)
\n\\\\n
\n5. Accuracy & Repeatability
\n\\\\n
\n• Equipped with D-type impact device• Ensures precise indication error and stable repeatability
\n\n
6. Software & Calibration
\n\n
• Supports upper and lower limit setting• Includes software calibration function for display value adjustments
\n\n
7. Data Storage Capacity: 373–2688 results, depending on test settings (impact times: 32 to 1)
\n\n
8. Battery Life: Up to 360 hours without backlighting

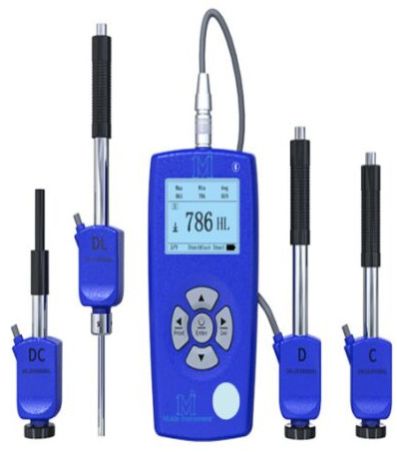

1. Measuring Range:
\n\n
• Leeb Hardness (HLD): 170–960
\n\n
• Vickers Hardness (HV): 83–976
\n\n
• Brinell Hardness (HB): 30–651
\n\n
• Rockwell Hardness:
\n\n
-HRC: 17.6–68.5
\n\n
-HRB: 13.5–100
\n\n
-HRA: 60–85.8
\n\n
• Shore Hardness (HS): 26.4–99.5
\n\n
2. Probe: Impact device D / Impact device DC / Impact device DL / Impact device C
\n\n
3. Hardness Scales Supported: HL, HV, HB, HS, HRA, HRB, HRC
\n\n
4. Resolution: 1 HL
\n\n
5. Accuracy: ±12 HL, ±6 HL (typical)
\n6. Repeatability: 6 HL (factory standard)
\n\n
7. Display: 240 × 16 dot matrix LCD
\n\n
8. Power Supply: Battery Type: 2 × AA alkaline dry batteries
\n\n
9. Host Size: 142 × 72 × 28 mm
\n\n
10. Probe Size: 148 × 31 × 25 mm
\n\n
11. Weight: 247 g
\n\n
12. Working Temperature Range: -10°C to 50°C, 0–85% RH (no condensation)
\n\n
13. Storage Temperature Range: -10°C to 60°C, 0–85% RH (no condensation)
\n\n
14. Main Features: Suitable for testing the hardness of inner holes and narrow parts with short size
1. Measuring Range:
\n\n
• HLD: 170–960
\n\n
• HB: 19–651
\n\n
• HRB: 13.5–101.7
\n\n
• HRC: 17.9–69.5
\n\n
• HRA: 59.1–88
\n\n
• HV: 80–1042
\n\n
• HS: 30.6–102.6 (customizable)
\n\n
2. Impact Directions: Up, Down, Horizontal, Slanting
\n\n
3. Tensile Strength: 374 to 2652 N/m²
\n\n
4. Supported Materials: Steel, Stainless steel, Cast iron, Aluminum alloys, Copper alloys
\n\n
5. Hardness Scales: HB, HRB, HRC, HRA, HV, HS
\n\n
6. Display: 128 × 64 LCD
\n\n
7. Memory Capacity: Stores up to 600 groups (32 readings per group)
\n\n
8. Power Supply: 3V (2 × AA batteries)
\n\n
9. Size: 125 × 71 × 27 mm
\n\n
10. Weight: 0.3 kg
\n\n
11. Battery Life: Up to 200 hours (with backlight off)

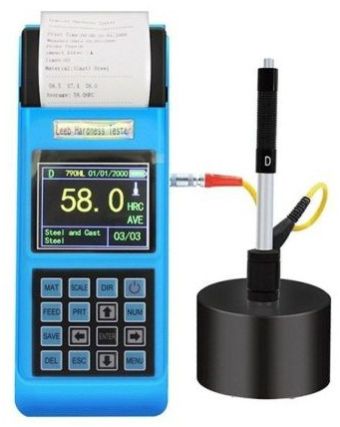

1. Display: 128 × 64 dot matrix LCD, displaying all functions and parameters2. Testing Angles: Can be used at any angle, even upside down3. Forged Steel Support: When using D/DC impact device, reads HB value directly without manual table reference4. Wide Measuring Range: Suitable for all metallic materials5. Hardness Scales: HRB, HRC, HRA, HV, HB, HS, HL, and three strength values6. Impact Devices: Seven impact devices available for special applications7. Automatic Recognition: Identifies the type of impact device automatically8. Memory Capacity: Stores 600 groups of data, including single measured values, mean values, impact direction, material, and hardness scale9. Upper & Lower Limits: Pre-settable with automatic alarm when exceeding limits10. Battery Status: Displays remaining battery capacity and charge status11. User Calibration Function: Allows for calibration as needed12. USB Port: Supports PC multi-function data processing software13. Printer: High-speed thermal printer for immediate and permanent data printing14. Power Source: NI-MH rechargeable battery with built-in charge circuit
Key Features
\n\n
• Utilizes advanced digital probe technology
\n\n
• Built-in direction sensor for enhanced accuracy
\n• Supports multiple hardness scales for versatility
\n\n
• Offers QC and statistical analysis modes
