We are leaders in the market for providing best range of Iot Indoor Air Quality Monitoring System, 102mm Air Quality Monitor, CO2 Air Quality Monitor, PM10 Outdoor Air Quality Monitor and PM2.5 Indoor Air Quality Monitor
• WiFi Tuya & Bluetooth: Connectivity for remote control
• Multiple Air Quality Measurements: CO2, Humidity, Temperature, TVOC, PM2.5, PM1.0
• RS485 Output: For industrial applications
• Thermostat Control: Managed via Tuya app
• Custom Function: Lora / 2.4G
• Control Method: Tuya app
• CO2: 400 – 5000 ppm
• Working Temperature: 0°C – 50°C
• Working Humidity: 0% – 95% (non-condensing)
• Support: API, ODM
• Display: Large 7-inch screen
• RS485 / Relay Control: For advanced control integration
• WiFi Tuya & Bluetooth: Seamless connectivity for remote control
\n\n
• CO2 Measurement Range: 400 – 5000 ppm
\n\n
• Smoke Alarm: 0.1% db/m – 0.3% db/m
\n\n
• Humidity Range: 5% – 95% (±5%)
\n\n
• Temperature Range: -20°C 60°C (±2°C)
\n\n
• Thermostat Control: Managed through Tuya app
\n\n
• Support: API for integration
\n\n
• Battery Type: Lithium battery (1400 mAh)
\n\n
• Charging Voltage: Type C USB 5V 1A
\n\n
• Sensor Service Life: > 10 years
\n\n
• Working Temperature: 0°C – 50°C
\n\n
• Working Humidity: 0% – 95% (non-condensing)
• Detecting Items: CO2, HCHO, Temperature, TVOC, Humidity
\n\n
• CO2 Measurement Range: 350 – 2000 ppm
\n\n
• TVOC Measurement Range: 0.000 – 2.000 mg/m³
\n\n
• HCHO Measurement Range: 0.000 – 1.000 mg/m³
\n\n
• Temperature Measurement Range: 1°C 99°C / 33.8°F 210.2°F
\n\n
• Humidity Measurement Range: 0 – 99% RH
1. Detected Pollutants
• Gases: SO, CO, NO, O
• Particles: PM2.5, PM10, TSP
• Environmental Factors: Temperature, Humidity
2. Monitoring Method
• Type: Continuous, automatic, real-time
3. asurement Principle
• Particles: Light scattering technique
• Gases: Electrochemical, Infrared, or PID sensors
4. Measurement Details
- Paticulate Matter (PM) Range: 0-1000 µg/m³ (Response Time: 60s, Resolution: 1 µg/m³)
- Sulfur Dioxide (SO) Range: 0-1000 ppb (Response Time: 45s)
- Carbon Monoxide (CO) Range: 0-200 ppm (Response Time: 45s)
- Nitrogen Dioxide (NO) Range: 0-1000 ppb
- Ozone (O) Range: 0-1000 ppb (Resolution: 1 ppb)
5. Fault Alarm
• Feature: Real-time display of system errors
• Display: LCD Screen with History Records saving
\n\n
• Buzzer Alarm: On/Off functionality
\n\n
• Temperature Unit: Switchable between Celsius and Fahrenheit
\n\n
• PM2.5 Sensor Technology: Laser Scattering
\n\n
• HCHO/TVOC Technology: Semiconductor sensor
\n\n
• Temperature: Temperature and Humidity Sensor
\n\n
• AQI Detection Range: 0 – 500
\n\n
• PM2.5 Detection Range: 0 – 999 µg/m³
\n\n
• HCHO Detection Range: 0.001 – 1.999 mg/m³
\n\n
• TVOC Detection Range: 0.001 – 9.999 mg/m³
\n\n
• Battery Type: Rechargeable Li-battery (1200 mAh)
• PM2.5 Detection Range: 0 – 999 µg/m³
\n\n
• CO2 Detection Range: 400 – 5000 ppm
\n\n
• HCHO Detection Range: 0.001 – 1.999 mg/m³
\n\n
• TVOC Detection Range: 0.001 – 9.999 mg/m³
\n\n
• Display: 4.3-inch LCD screen with History Records saving
\n\n
• Buzzer Alarm: On/Off functionality
\n\n
• Temperature Unit: Switchable between Celsius and Fahrenheit
\n\n
• CO2 Technology: Infrared (NDIR)
\n\n
• PM2.5 Sensor Technology: Laser Scattering
\n\n
• HCHO/TVOC Sensor Technology: Electrochemical sensor
\n\n
• Temperature and Humidity Sensor
\n\n
• 24-hour Real-time Monitoring
•PM2.5 technology: Laser Scattering
\n\n
•HCHO/TVOC technology: Semiconductor Sensor
\n\n
•AQI Detection Range: 0–500
\n\n
•PM2.5 Detection Range: 0–999 µg/m³
\n\n
•HCHO Detection Range: 0.001–1.999 mg/m³
\n\n
•TVOC Detection Range: 0.001–9.999 mg/m³
\n\n
•Rechargeable Li-battery 2000mAh

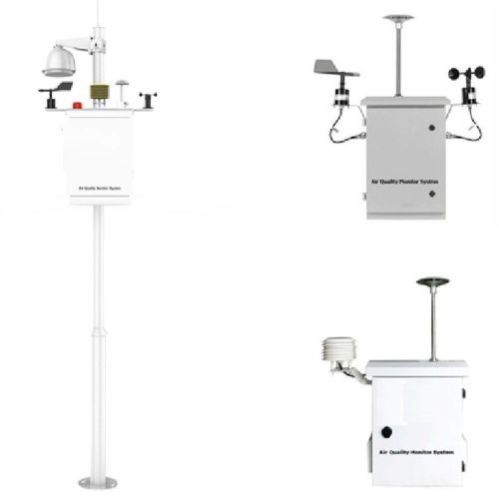

1. Enclosure
• Features: Waterproof, dustproof, rustproof
• Installation: Outdoor, GPRS transmission
2. Temperature & Humidity
• Temperature Range: 0-120°C
• Accuracy: ±0.3°C
• Humidity Resolution: 0.1% RH
\n
3. Particle Detection
• Method: Light scattering
• Range: 0-1000 µg/m³ (optional)
4. Gas Detection
• 4.1 NO (Nitrogen Dioxide): 0-500 nmol/mol
• 4.2 CO (Carbon Monoxide): 0-10 µmol/mol
• 4.3 SO (Sulfur Oxides): 0-500 nmol/mol
• 4.4 O (Ozone): 0-500 nmol/mol
• Accuracy: ±2% FS for all gases
5. Wind Speed
• Range: 0-45 m/s
• Accuracy: ±0.3 m/s
6. Wind Direction
• Range: 0-360°
• Accuracy: ±3°
7. Barometric Pressure
• Range: 10-1100 hPa
• Accuracy: ±0.3 hPa
8. Functions
• Features: Real-time monitoring, query capabilities
• Temperature Unit: Switchable between Celsius and Fahrenheit
\n• PM2.5 Sensor Technology: Laser Scattering
\n\n
• HCHO/TVOC Sensor Technology: Electrochemical sensor
\n\n
• CO2 Technology: Infrared (NDIR)
\n\n
• Temperature and Humidity Sensor
\n\n
• 24-hour Real-time Monitoring
\n\n
• AQI Detection Range: 0 – 500
\n\n
• PM2.5 Detection Range: 0 – 999 µg/m³
\n\n
• CO2 Detection Range: 400 – 5000 ppm
\n\n
• HHO Detection Range: 0.001 – 1.999 mg/m³
\n\n
• TVOC Detection Range: 0.001 – 9.999 mg/m³
