Mukta Instruments

Bangalore, Karnataka

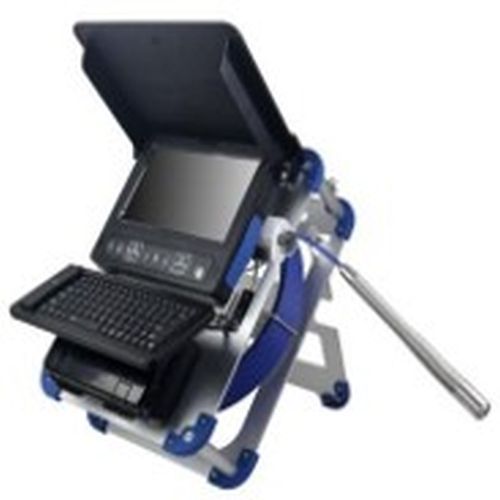

Introducing the Mukta Instruments 23mm Pipe Inspection Camera from India. This sleek black camera boasts a high-resolution of 1280 720 pixels for crystal-clear images. Featuring a self-levelling camera, a 10.1-inch HD display, and a 30m cable length, this tool is perfect for professional inspections.

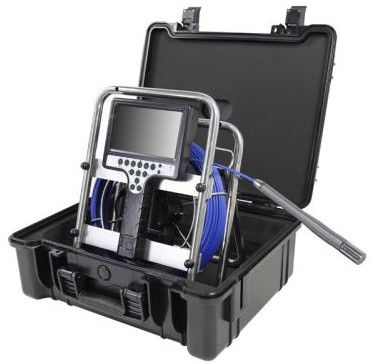

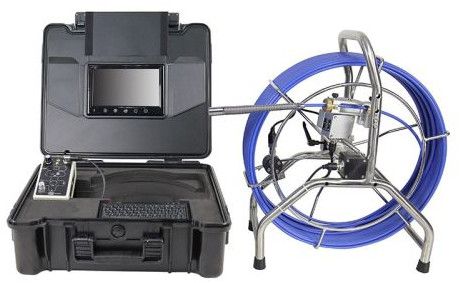

Introducing the MI-A 50mm Pipe Inspection Camera by Mukta Instruments. This high-quality camera in sleek black color is made in India. With a 23mm diameter and optional standard camera head, it features a 7-inch display for clear viewing. Capture videos and images with ease, storing them on SD cards for convenient access and sharing.



\n



\n

Optional Function: 512hz Sonde, 33KHz transmitter, Self Leveling, self-leveling camera head with 512hz sonde

\n



\n

Guide rings: 8-901 and 8-923 for 23mm head

\n



\n

Ball guides: For 14mm and 18mm camera heads

\n



\n

Storage: 16GB SD card + USB SD card reader

\n



\n

Battery: Rechargeable battery

\n



\n

Operating Time: Up to 6 hours

\n



\n



Illumination: 9 high light white LEDs, 15 high-brightness white LEDs

\n



\n

Guides Included: Ø46 mm and Ø80 mm plastic guides

\n



\n

Display: 7”, 10’’ LCD color screen

\n



\n

Functions: Image rotation, brightness control

\n



\n

Recording: One-push video & photo capture

\n



\n

Storage: 16GB SD card + USB SD card reader

\n



\n

Optional Function: 512hz Sonde, Self Leveling, 512Hz Sonde and Self-leveling

\n



\n

Audio: Built-in microphone for local recording

\n



\n

Text Input: English keyboard for on-screen text

\n



\n

Overlay: On-screen date and time

\n



\n

Battery Type: Rechargeable

\n

Operating Time: Up to 6 hours continuous use

\n



\n

System Protection: Fully waterproof when case is closed

\n



\n

Push Rod: 20m, 30m, 40m fiberglass, φ4.8mm, φ5.2mm, Ø6.8 mm

\n



\n

Navigation: Handles 90° bends in Ø50mm, Ø32mm pipes,

\n



\n

Distance Counter: On-screen cable measurement

\n



\n

Brake System: Smart braking for rod control

Camera Material: Stainless steel, IP68 waterproof

\n



\n

Lens Cover: sapphire glass

\n

Lighting: 4 high-intensity white LEDs, 9 high-intensity white LEDs, 15 high-intensity white LEDs

\n



\n

Ball Guide: Ø28, Ø46 mm, Ø80 mm

\n

Functions: Image rotation, One-push video/photo recording, On-screen date and time, LED brightness control

\n



\n

Audio: Built-in microphone for local recording

\n



\n

Video Output: Video-Out port for TV connection

\n



\n

Battery: Rechargeable

\n



\n

Operating Time: Up to 7 hours

\n



\n

Pipe Navigation: Capable of passing 90° bends in Ø33mm, Ø45mm pipes

\n



\n

Optional Function: standard, 512hz Sonde, 33KHz transmitter, Self Leveling, self-leveling camera head with 512hz sonde

\n



\n

Storage: 16GB SD card + USB SD card reader

\n



\n

Measurement: On-screen meter counter standard

Packing List:

\n



\n

1. Control box with DVR, battery pack, and keyboard

\n



\n

2. Metal frame with cable reel and camera

\n



\n

3. Camera support brackets (Φ25mm, Φ46mm, Φ78mm depending on model)

\n



\n

4. Connection cables and screwdriver

\n



\n

5. User manual

\n



\n

Display: 9-inch DVR monitor with video recording

\n



\n

Capable of passing 90° bends: Φ50mm pipes (21mm camera), Φ32mm pipes (12.8mm cameras)

\n



\n

Material: Waterproof camera head with LED lights, Compact, heavy-duty metal frame and reel

\n

Optional function: 512Hz Transmitter, Self-levelling Camera, 13.3-inch DVR Monitor, Wireless 2.4G 5-inch Monitor

Packing List:

\n



\n



\n

\n
1. \n

   Control box with DVR, battery pack, and keyboard

   \n
\n
2. \n

   Camera supports (Φ25mm, Φ46mm, Φ65mm, Φ78mm, Φ105mm depending on model)

   \n
\n
3. \n

   Connection cables and screwdriver

   \n
\n
4. \n

   Heavy-duty metal frame with integrated cable reel and camera

   \n
\n
5. \n

   User manual

   \n
\n

\n



\n

Display: Standard 9-inch DVR screen with recording and playback functionality

\n

Capable of passing 90° bends: 32mm with 12.8mm cameras, 50mm with 21mm cameras (5.3mm cable), 80mm with 21mm or 29mm cameras (6.8mm cable)

\n



\n

Material: Waterproof camera heads with LED lighting, Sturdy metal frame with built-in cable reel

\n



\n

Optional function: 512Hz Sonde Transmitter, Self-Levelling Camera, 13.3-inch DVR, Wireless 2.4G 5-inch Monitor

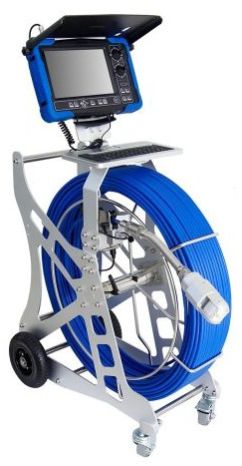

Introducing the Mukta Instruments 60mm Pipe Inspection Camera from India. This high-quality camera features a 23mm camera diameter, 10.1" HD display, and 30 meters cable reel. With a resolution of 19201080 and optional self-levelling function, it ensures precise and efficient inspections. The blue color adds a touch of style to its functionality.
