Our Products
We offer the best product range of Ultrasonic Thickness Gauges, Ultrasonic Thickness Gauge, Ultrasonic Thickness Gauge MI211, Ultrasonic Thickness Gauge-MI213 and Digital Coating Thickness Gauge.

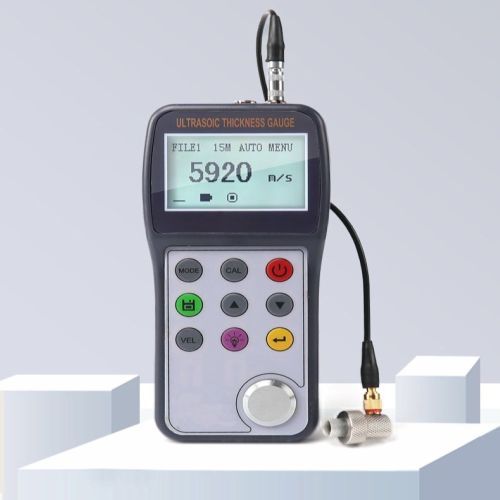

1. Measuring Accuracy:
\n\n
• ±0.005mm (for thickness under 3mm)
\n\n
• ±0.01mm (for thickness under 20mm)
\n\n
2. Data Storage: 500 values of saved data
\n\n
3. Dimensions (L × W × H): 153 × 67 × 26mm
\n\n
4. Weight: 220g

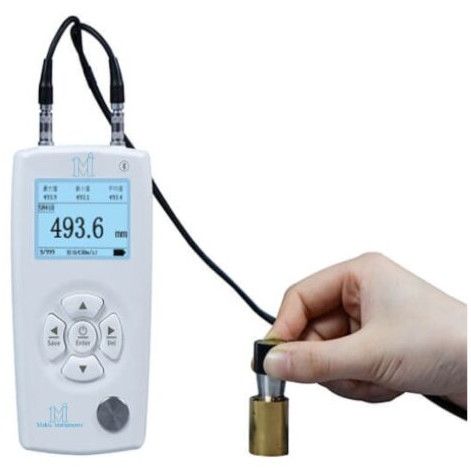

1. Measuring Range: 0.8–600 mm (for 45# steel)
\n\n
2. Resolution:
\n\n
• 0.8–10 mm: 0.001 mm
\n\n
• 10–100 mm: 0.01 mm
\n\n
• 100–600 mm: 0.1 mm
\n\n
3. Accuracy:
\n\n
• 0.8–10 mm: ±0.05 mm
\n\n
• 10–600 mm: ±0.5% of reading
\n\n
4. Sound Velocity Range: 1000–9999 m/s
\n\n
5. Display: 240 × 160 dot matrix LCD
\n\n
6. Unit Options: mm / inch
\n\n
7. Power Supply: 2 × 1.5V AA alkaline batteries
\n\n
8. Host Size: 142 × 72 × 28 mm
\n\n
9. Weight: About 230 g
\n\n
10. Operation Temperature Range: -10°C to 50°C, 0–85% RH (No condensation)
\n\n
11. Storage Temperature Range: -10°C to 60°C, 0–85% RH (No condensation)
\n\n
12. Main Features:
\n\n
• Large measuring range and high resolution
\n• mm and inch units optional
\n\n
• 5 MHz dual-element transducer probe
\n\n
• Automatic gain switchable
\n\n
• Built-in sound velocity settings for multiple materials

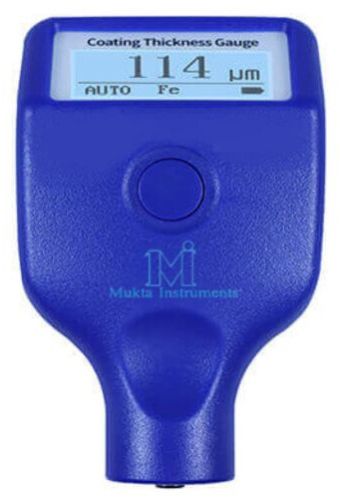

Minimum Curvature:
\n\n
-Convex Radius: 1.5 mm
\n-Concave Radius: 25 mm
\n\n
Minimum Substrate Thickness:
\n\n
-Ferrous: 0.4 mm
\n\n
-Non-Ferrous: 0.4 mm
\n
Substrate Compatibility: Dual-use for Ferrous (FE) & Non-Ferrous (NFE) bases
1. Probe Tip: Ruby fixed2. Measuring Principle:-Ferrous: Hall Effect-Non-ferrous: Eddy Current3. Probe Type: Integrated probe4. Measuring Range: 0.0 - 5000μm5. Resolution:-0.1μm: 0μm - 99.9μm-1μm: 100μm - 999μm-0.01mm: 1.00mm - 5.00mm6. Accuracy: ≤±(3%H+2μm), H is the standard value7. Unit: μm / mil8. Measuring Interval: 0.5s9. Minimum Measuring Area: Ø = 25mm10. Minimum Curvature:-Convex: 5mm-Concave: 25mm11. Minimum Substrate Thickness:-Fe: 0.2mm-NFe: 0.05mm12. Display: 128×48 dot matrix LCD13. Power Supply: 2pcs of 1.5V AAA alkaline battery14. Operation Temperature Range: 0 - 5015. Storage Temperature Range: -20 - 6016. Gauge Size: 101 × 62 × 28 mm17. Weight (with battery): 79g18. Main Features• Three-color and rotatable display screen• Identify iron galvanized body• Type-C interface charging, ultra-low power consumption• Switchable between five languages

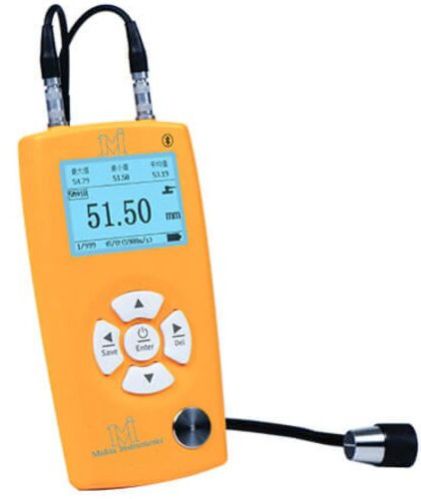

1. Measuring Range: 0.8–350 mm (for 45# steel)
\n\n
2. Resolution:
\n\n
• 0.8–10 mm: 0.001 mm
\n\n
• 10–100 mm: 0.01 mm
\n\n
• 100–350 mm: 0.1 mm
\n\n
3. Accuracy:
\n\n
• 0.8–10 mm: ±0.05 mm
\n\n
• 10–350 mm: ±0.5% of reading
\n\n
4. Main Features:
\n\n
• High resolution
\n\n
• mm and inch units optional
\n\n
• 5 MHz dual-element transducer probe
\n\n
• Automatic gain switchable
\n\n
• Built-in sound velocity settings for multiple materials
Lower Limit (Steel Pipes):
\n• 5MHz probe: Ø20 mm × 3.0 mm
\n\n
• 7MHz probe: Ø15 mm × 2.0 mm
\n
Working Time: More than 50 hours (with LED backlight off)
