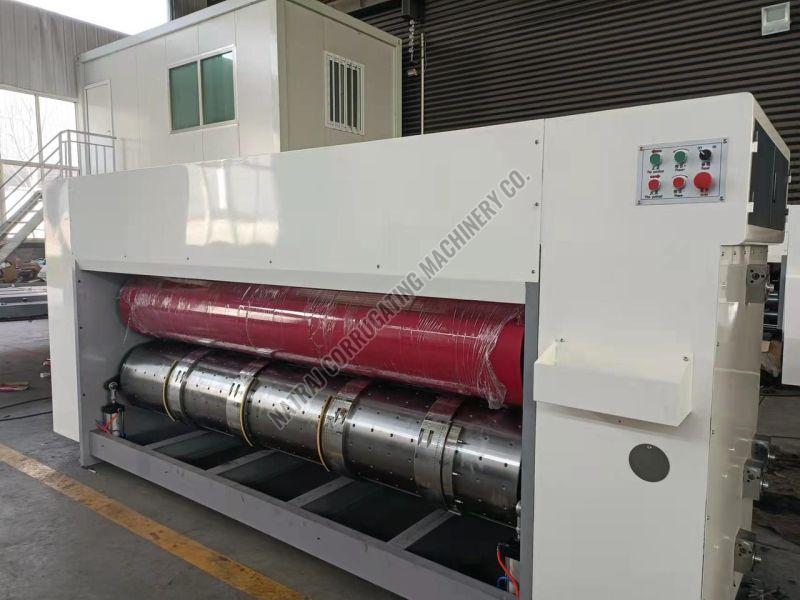

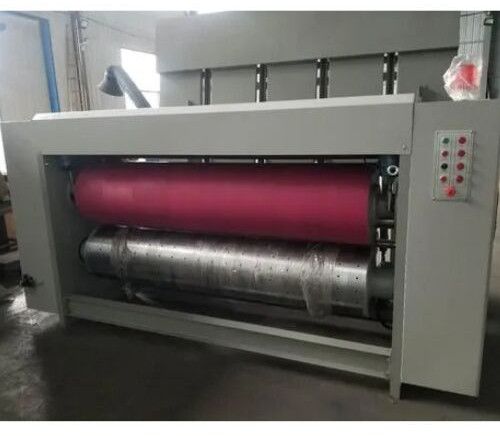

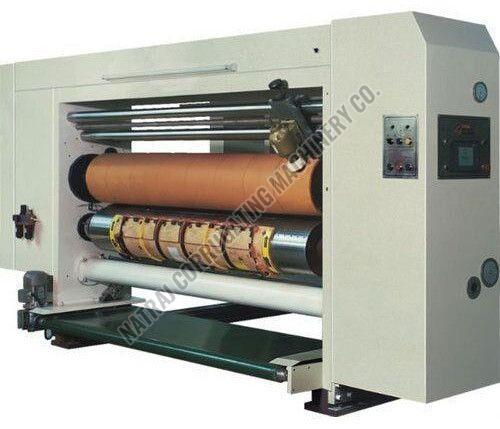

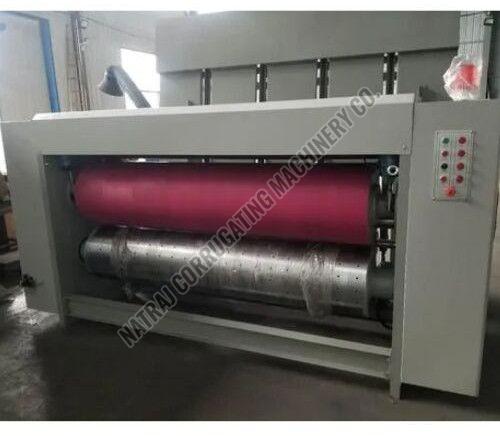

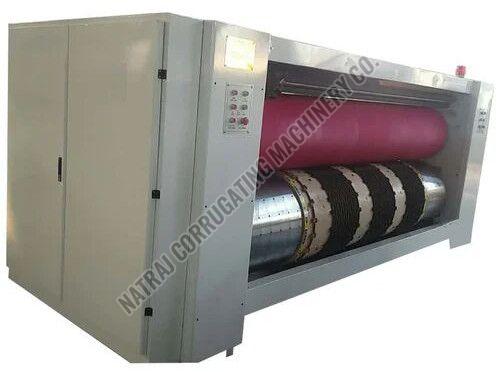

Adopts straight-through processing chain of semi-automatic

Feeder with compact structure easy operation die-cutting

Characteristics of good affect

The motor is frequency motor the speed range between

20-80 per minute to run

Machine uses light, electricity, gas, safe, and effective joint

Control will enable the carton a die-forming

Transmission gear with high precision quality steel, using hand

Pump oil lubrication system that can reduce noise, increase the

Service life of gears

Pneumatic feed system with automatic lifting device (feed roller

When the first rise in the template to stop the subsequent decline

In feed roller when the template to ensure that the correct die each)

Mechanical drive anvil roller superior force, axial movement 35mm

And is equipped with radial differential device allowing the rubber

Roller wear evenly distributed and significantly increased roller life

With speed compensation device, do not the operator to automatically

Adjust the roller speed to ensure that each batch of carton dimensions

Exactly the same

Phase adjustment agencies (electrical adjustment) the static 360

Degree electric adjustment quick and convenient

Application:

• Designed for precision creasing, trimming, slotting, and punching of corrugated boards.

• Efficiently handles hole punching and interlocking operations.

Material Compatibility:

• Suitable for corrugated boards ranging from:

  • 3-ply, 5-ply, up to 13-ply

• Capable of die-cutting:

  • E flute corrugated boards

  • Gaskets

  • Rubber soles

Key Features:

• Delivers high production output with consistent accuracy

• Operates in both automatic and manual modes for flexibility in various production scenarios

• Equipped with an integrated control panel for easy and safe operation

Advantages:

• Robust design for long-term industrial use

• Versatile performance across a broad range of materials and thicknesses

• Enhances production efficiency while maintaining die-cutting precision

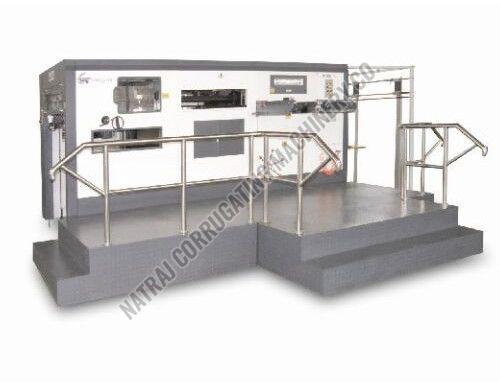

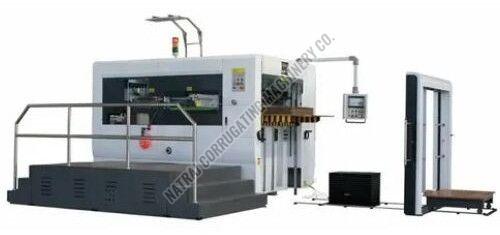

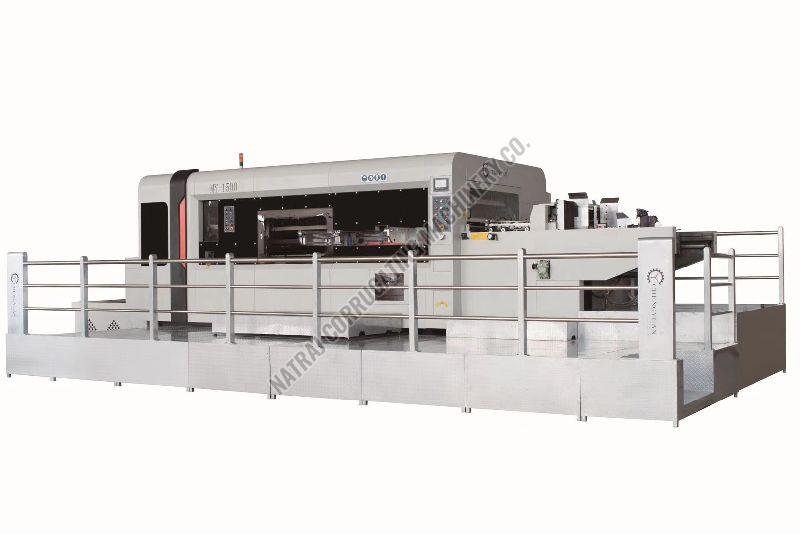

rnn-1500 is special equipment applying to die-cutting of advanced colored boxes made of paper. The machine combines several advantages ver many other die-cutters + both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step less speed variation the machine has a lot of sensors and safe-ensuring devices to guarantee the safety to operator and of environment frontal and back pressure can be adjusted separately. It is convenient to stop the machine by hand. It can also realize die cutting without clipper margin.

model rnn-1650mm

die die-cutting ways manner platen

maximum sheet size max. Paper size 1500 * 1200mm

minimum sheet size min. Paper size 650 * 450 mm

max cutting size max. Die-cutting size 1450 * 1190 m

maximum cutting pressure max. Die-cutting pressure 300n / c

machinability paper thickness thickness 1-8mm

maximum speed max. Die-cutting speed 4000sheets / h

feeder pile pile height 1400mm maximum height max. Feeding (above the level)

the maximum delivery pile height max. Delivery pile height 1400mm (above the level)

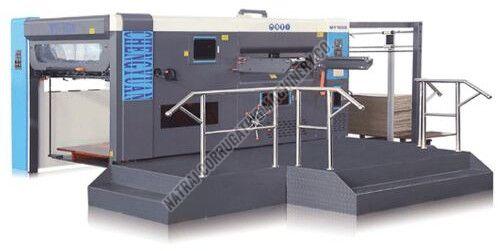

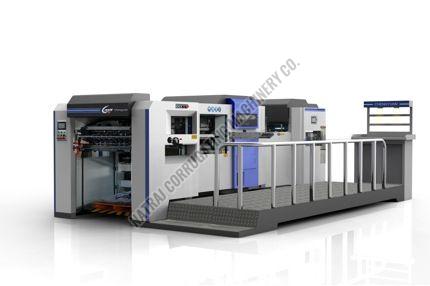

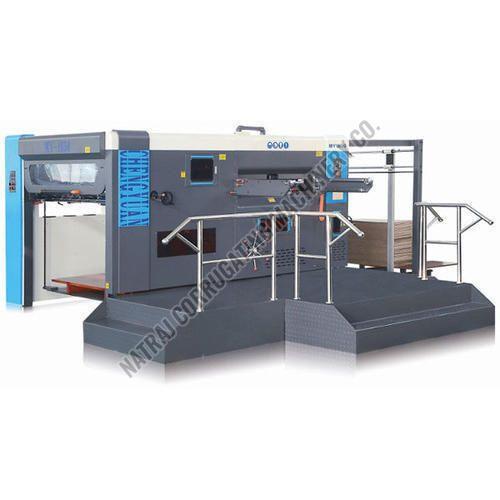

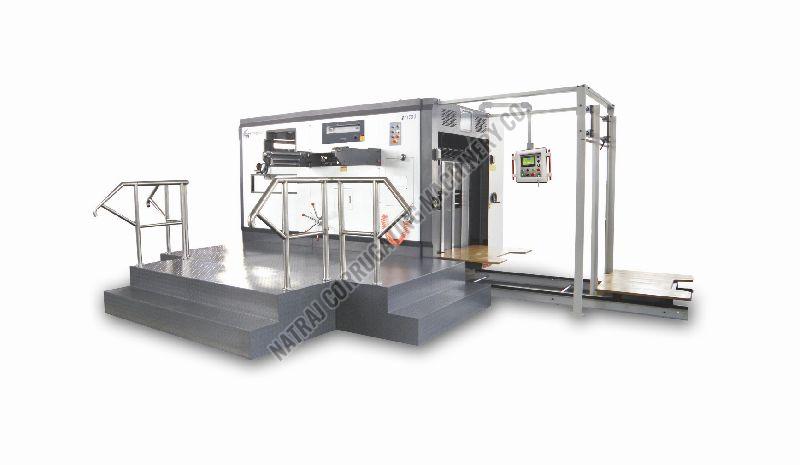

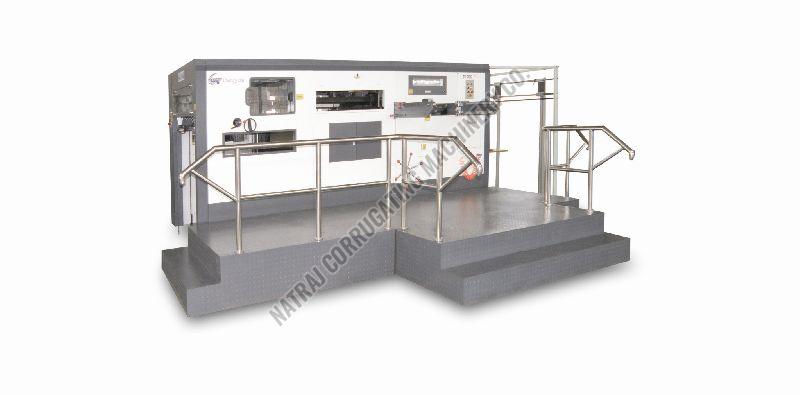

this machine is a special equipment applying to die-cutting of advanced colored boxes made of paper. This machine combines several advantages over many other die cutters both at home and abroads. Gripper bars with high intensity are applicable to all kind of cardboard, paper board and corrugated paper. Frontal, back and side registeration mechanism ensure great precision of die-cutting. Other parts are adopted such as intermittent mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the displayof trouble shooting. Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has lot of sensors and safe -ensuring devices to guarantee the safety of operatorand environment. Pressure is to be adjusted. It can also realize die cutting without clipper margin. All these performances make the machine prominent in high quality and low price among similar products.

model my-1050 my-1080

max. Die cutting speed : 6500 sheets/h 6500 sheets/h

max. Paper size : 1060x760mm 1080x780mm

min. Paper size : 400x370mm 400x370mm

paper type : 120-2000g/m2 120-2000g/m2

max. Die cutting pressure : 300n/cm2 300n/cm2

total power : 20 kw 18 kw

total weight : 16 t 17 t

dimentsions : 5810x2310x2250mm 5810x2310x2250mm

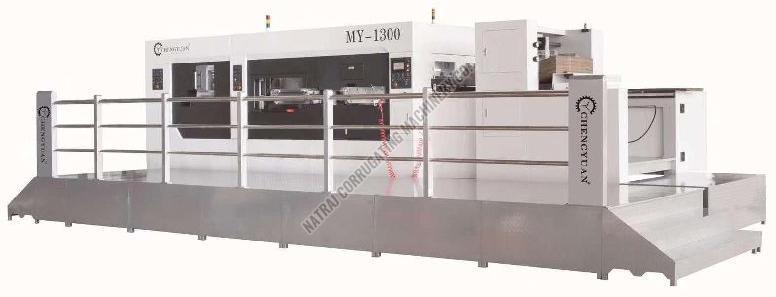

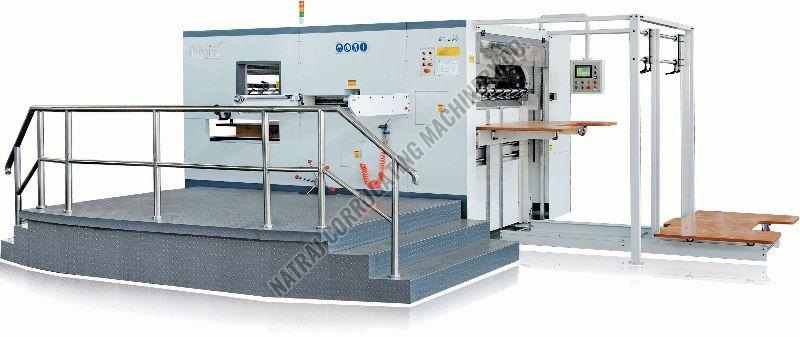

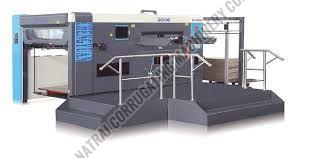

flat bed die cutting machine :-

RNN-1500 is special equipment applying to die-cutting Of advanced colored boxes made of paper. The Machine Combines several advantages ver many other die-cutters + Both at home and abroad. Gripper bars with high intensity Are applicable to all kinds of cardboard, paperboard and Corrugated paper. Frontal, back and side registration Mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism With high precision, air clutch, pneumatic locking Mechanism, programmable controller and man-Machine Interface. The interface can display various digital Information of Machine such as working speed, amount Of paper processed, total running time, etc it is easy to Eliminate troubles according to the display of trouble Shooting. Transducer is adopted to control the main Motor in achieving stepless speed variation the Machine has a lot of sensors and safe-ensuring devices To guarantee the safety to operator and of environment Frontal and back pressure can be adjusted separately. It is convenient to stop the Machine by hand. It can Also realize die cutting without clipper margin
