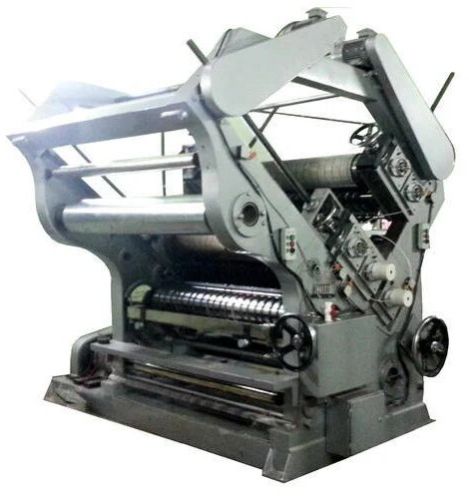

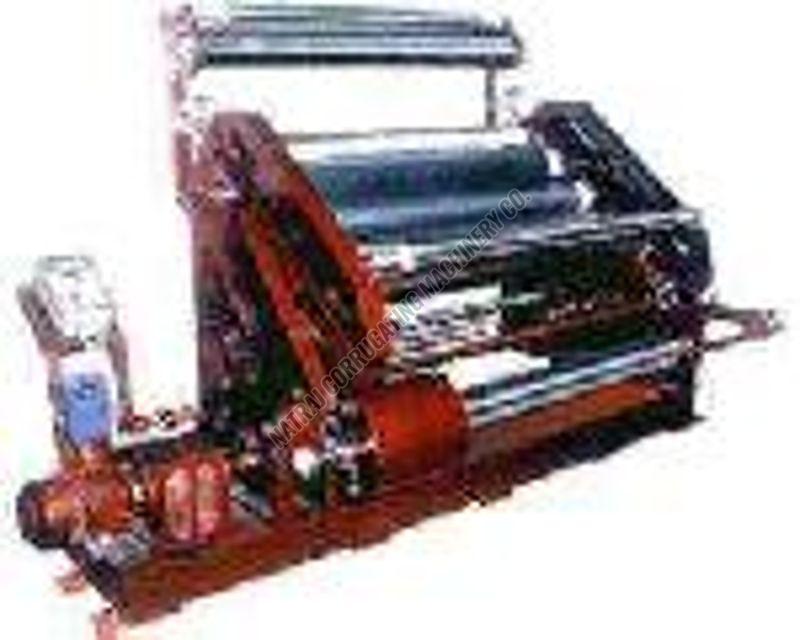

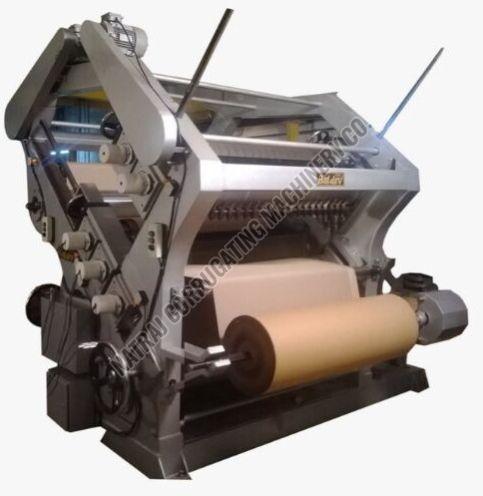

This Heavy-Duty High-Speed Single Face Corrugating Machine is designed for efficient, precise, and high-volume production of corrugated board. Built with double profile capability and available in both fingerless and finger-type designs, it enables manufacturers to produce two flute profiles (e.g., B & C, C & E) by simply shifting roller setssaving space, time, and cost.

rn

Ideal for modern corrugated box plants, this machine features robust construction, fast changeover, and efficient heating and gluing systems.

rnrn Key Features:rn

rn
• rn

  Double Profile Design
  Equipped with two sets of corrugating rollers
  Allows quick switching between flute types without changing machines

  rn
rn
• rn

  Available in Fingerless & Finger-Type Versions
  Fingerless: vacuum suction system ensures clean flute formation and reduced maintenance
  Finger-Type: traditional design with proven reliability

  rn
rn
• rn

  Bearing Mounted for Smooth Operation
  Ensures stable high-speed running and minimizes vibration

  rn
rn
• rn

  Hydraulic Lifting System
  For smooth and safe roller positioning and pressure adjustment

  rn
rn
• rn

  Motorized Heavy-Duty Reel Stand
  Self-loading design suitable for paper reels up to 5 feet diameter

  rn
rn

rnrn Additional Features:rn

rn
• rn

  2 Pre-Heaters for proper paper conditioning before corrugation

  rn
rn
• rn

  Stainless Steel Glue Tank corrosion-resistant and easy to clean

  rn
rn
• rn

  S.S. Tubular Heaters energy-efficient and reliable heating system

  rn
rn
• rn

  Length Counter for tracking output and production control

  rn
rn
• rn

  High-Speed Capability built for continuous heavy-duty operation

  rn
rn

rnrn Technical Highlights (Customizable by Size):rn

rn
• rn

  Working widths: typically 1400 mm 2500 mm

  rn
rn
• rn

  Flute profiles: B, C, E (any two as per requirement)

  rn
rn
• rn

  Heating method: Electric (S.S. heaters) or optional steam/oil

  rn
rn
• rn

  Reel stand capacity: Up to 5 feet dia. reels

  rn
rn
• rn

  Mounting: Heavy-duty bearing mounted

  rn
rn

rnrn Applications:rn

rn
• rn

  Corrugated board production for 3-ply and 5-ply lines

  rn
rn
• rn

  Suited for high-speed box making plants and converters

  rn
rn

Key Features

rn

rn

rn
1. rn

   360 Electric Phase Adjustment

   rn
   rn
   • rn

     Enables full-range (360) phase adjustment for slotting precision.

     rn
   rn
   • rn

     Manufactured in Taiwan for high reliability and durability.

     rn
   rn
   rn
rn
2. rn

   Brake Motor & Monitoring System

   rn
   rn
   • rn

     Equipped with a showdown brake motor for controlled stopping.

     rn
   rn
   • rn

     Integrated coded pulse monitor ensures high accuracy in movement detection and positioning.

     rn
   rn
   rn
rn
3. rn

   Advanced Control Interface

   rn
   rn
   • rn

     Microcomputer display allows real-time operation visualization.

     rn
   rn
   • rn

     Features memory storage for repeat jobs and automatic zero return for phase positioning.

     rn
   rn
   rn
rn
4. rn

   Synchronized Slotting Adjustment

   rn
   rn
   • rn

     Slotting adjustment is synchronized with the main system, improving operational efficiency and accuracy.

     rn
   rn
   • rn

     Live adjustment capability saves time during job changes.

     rn
   rn
   rn
rn
5. rn

   Automatic Lubrication System

   rn
   rn
   • rn

     Adopts a spray-type self-lubrication system.

     rn
   rn
   • rn

     Ensures consistent lubrication of moving parts, reducing maintenance needs and extending machine life.

     rn
   rn
   rn
rn

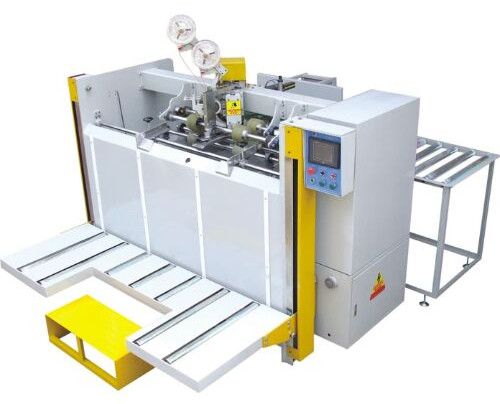

Manual Double servo drive with high precision is applied to reduce mechanical transmission so that less mechanical failure shall happen.

rn

1) Taiwan touch screen is applied for operation, settings of stitching distance, number of stitches, varieties of stitches are easy.

rn

2) Siemens PLC control system is applied.

rn

3) Bottom die and blade are of Japanese tungsten material (wear-resistant)

rn

4) Whole stitching head are imported from Taiwan, made out of special die steel.

rn

Specifications of the machine:-

rn

rn
• TY-SF1800
rn
• Mechanical speed: 300-500 stitches/min
rn
• Power: 2KW
rn
• Stitching wire: No. 17 and 18
rn
• Dimension: 2460X550X1950MM
rn
• Weight: 580kg
rn

rn

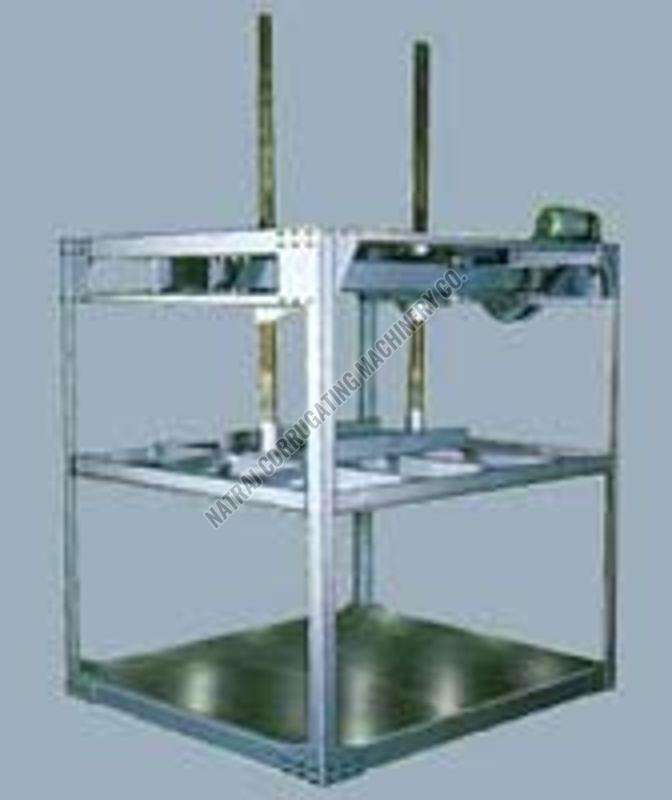

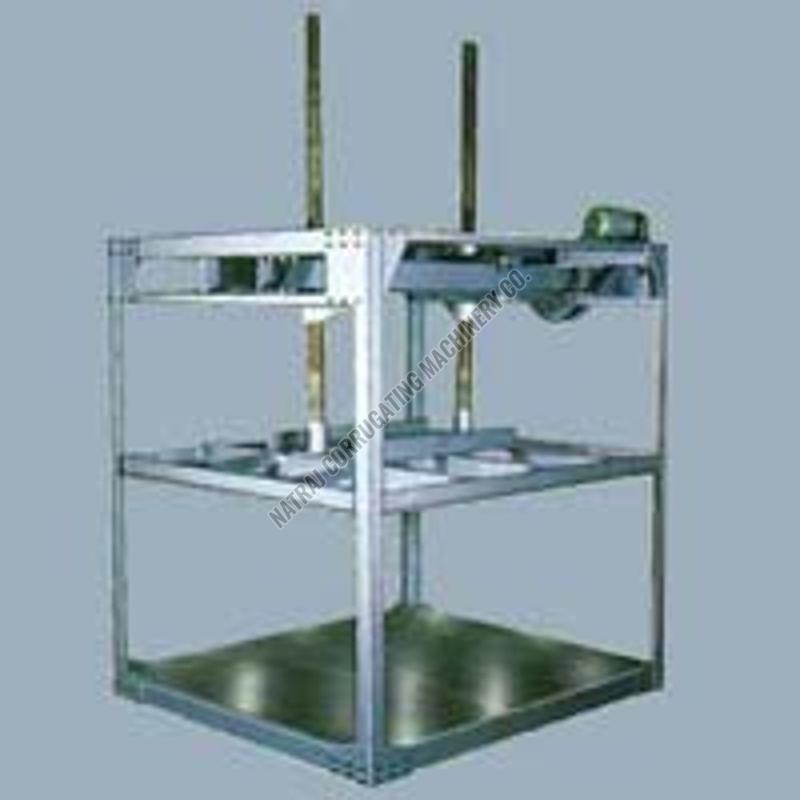

The Super Natarja Sheet Pressing Machine is a heavy-duty, fully motorized unit designed to compress and bond corrugated sheets after pasting. It is widely used in corrugated box manufacturing units to ensure proper adhesion and flatness of 2-ply, 3-ply, or 5-ply sheets before further processing.

rn

Built with rugged components and stable design, it provides consistent pressing force while protecting the sheet surface.

rnrn Key Features:rn

rn
• rn

  Heavy-Duty Motorized Operation
  Fitted with a reliable 2 HP motor for smooth and uniform pressing
  Ensures even pressure distribution across the sheet stack

  rn
rn
• rn

  Wooden Platen Construction (Top & Bottom)
  Mounted on durable wooden plates that prevent sheet damage
  Ideal for gentle yet firm compression of freshly glued sheets

  rn
rn
• rn

  Steel Base Frame with Waterproof Ply Support
  Robust steel platform structure enhances machine stability
  Waterproof ply offers resistance to glue, water, and moisture

  rn
rn
• rn

  Complete with Electricals
  Ready-to-run with complete motor and wiring assembly

  rn
rn

rnrn Specifications:rn

rn
• rn

  Motor Power: 2 HP

  rn
rn
• rn

  Platform Material: Steel frame with waterproof ply

  rn
rn
• rn

  Platen Material: Solid wood (top & bottom)

  rn
rn
• rn

  Operation: Fully motorized (no manual intervention)

  rn
rn

rnrn Applications:rn

rn

rn
• rn

  Used in sheet pasting operations in corrugated board manufacturing

  rn
rn
• rn

  Presses and flattens 2-ply, 3-ply, and 5-ply corrugated boards

  rn
rn
• rn

  Prevents warping, improves bonding and reduces drying time

  rn
rn

Key Features

rn

rn
1. rn

   High-Speed Bearing Mounted Design

   rn
   rn
   • rn

     Ensures smooth and stable operation at higher speeds.

     rn
   rn
   • rn

     Minimizes vibration and wear, increasing machine life.

     rn
   rn
   rn
rn
2. rn

   Corrugating Rollers

   rn
   rn
   • rn

     Comes with one set of narrow flute rollers for fine corrugation quality.

     rn
   rn
   • rn

     Roller Diameters:

     rn
     rn
     • rn

       Upper Roller: 203 mm

       rn
     rn
     • rn

       Center Roller: 223 mm

       rn
     rn
     • rn

       Pressure Roller: 229 mm

       rn
     rn
     rn
   rn
   rn
rn
3. rn

   Heating System

   rn
   rn
   • rn

     Integrated tubular heater with control panel for consistent and controlled heat application.

     rn
   rn
   rn
rn
4. rn

   Reel Stand

   rn
   rn
   • rn

     Includes a manual reel stand, suitable for various roll sizes.

     rn
   rn
   • rn

     Motorized operation with Variable Frequency Drive (VFD) for adjustable speed control.

     rn
   rn
   rn
rn
5. rn

   Control Panel

   rn
   rn
   • rn

     Centralized control system for easy operation, temperature control, and speed regulation.

     rn
   rn
   rn
rn

Key Featuresrn

rn

rn
1. rn

   Certified Preheat Roller System

   rn
   rn
   • rn

     Preheat rollers are manufactured in compliance with national pressure vessel standards.

     rn
   rn
   • rn

     Supplied with pressure container certificate and inspection certificate to ensure safety and compliance.

     rn
   rn
   rn
rn
2. rn

   High-Precision Rollers

   rn
   rn
   • rn

     All rollers undergo precision grinding and are treated with hard chrome plating.

     rn
   rn
   • rn

     This provides:

     rn
     rn
     • rn

       Low surface friction

       rn
     rn
     • rn

       High durability

       rn
     rn
     • rn

       Smooth and consistent paper feeding

       rn
     rn
     rn
   rn
   rn
rn
3. rn

   Electrically Adjustable Preheat Angle

   rn
   rn
   • rn

     Motorized angle adjustment allows the operator to rotate and set the paper preheating area within a full 360 range.

     rn
   rn
   • rn

     Enables precise temperature control based on paper type and production needs.

     rn
   rn
   rn
rn

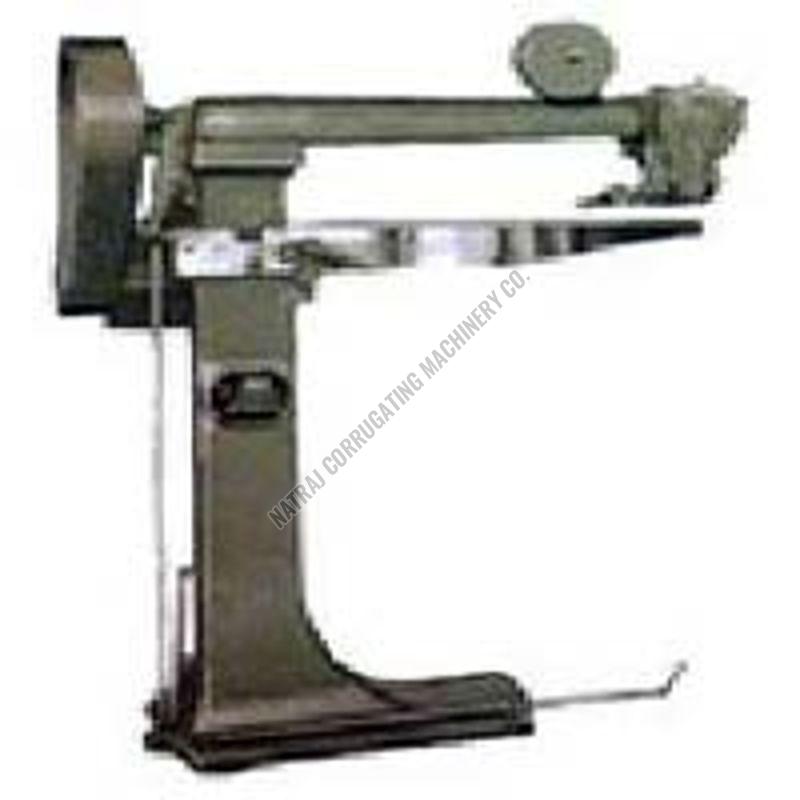

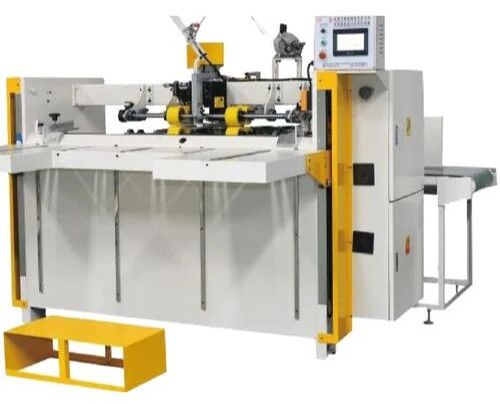

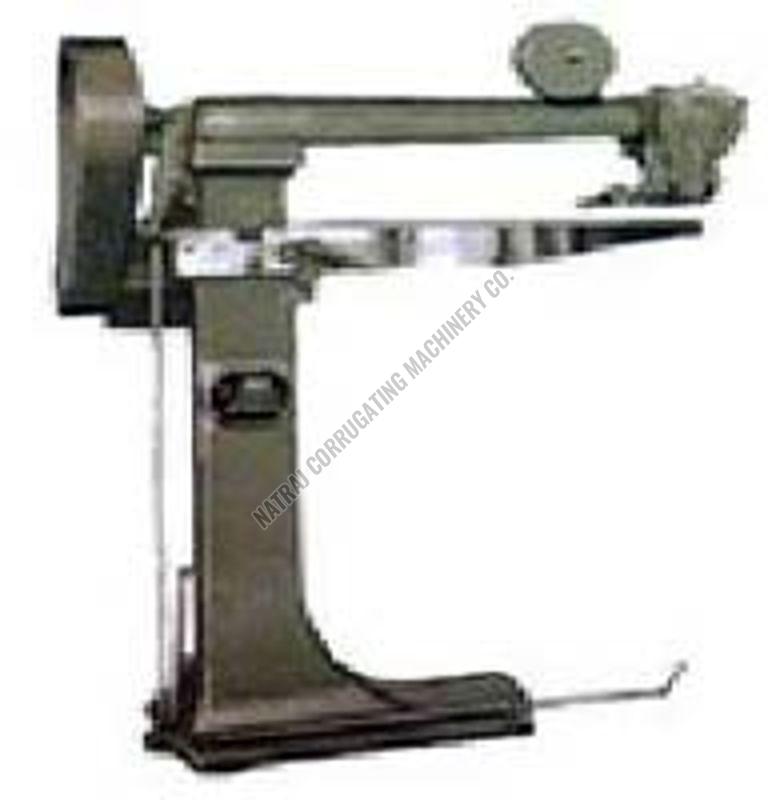

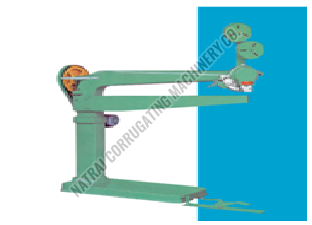

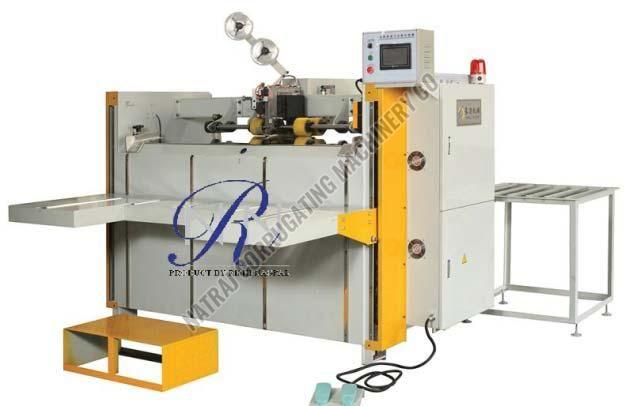

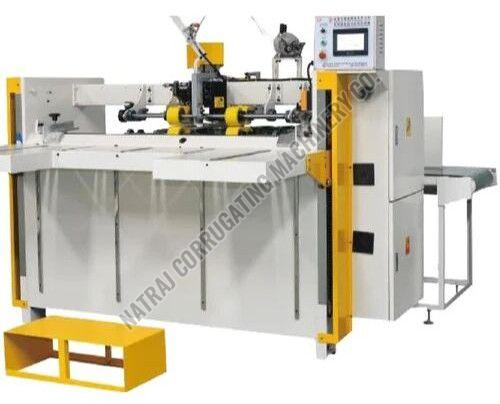

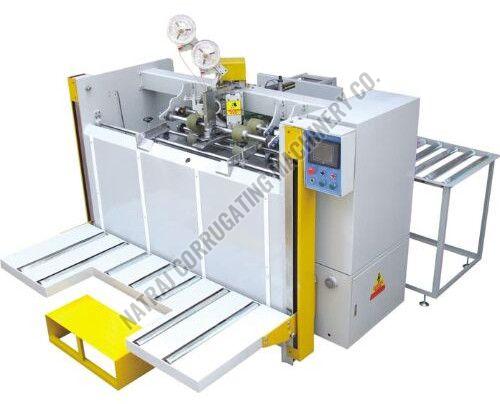

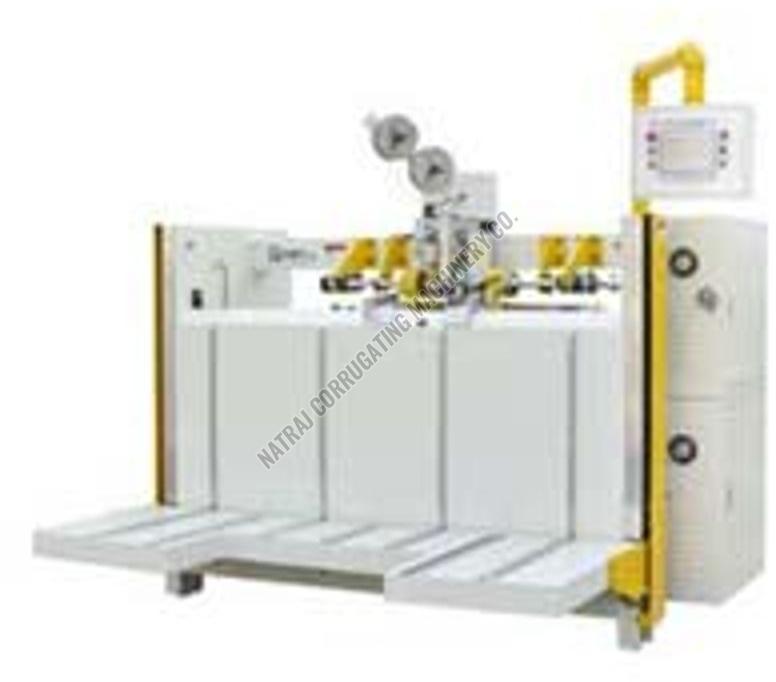

We are offering stitching machine.double head stitching suitable box stitching machine , available in single and double head , .

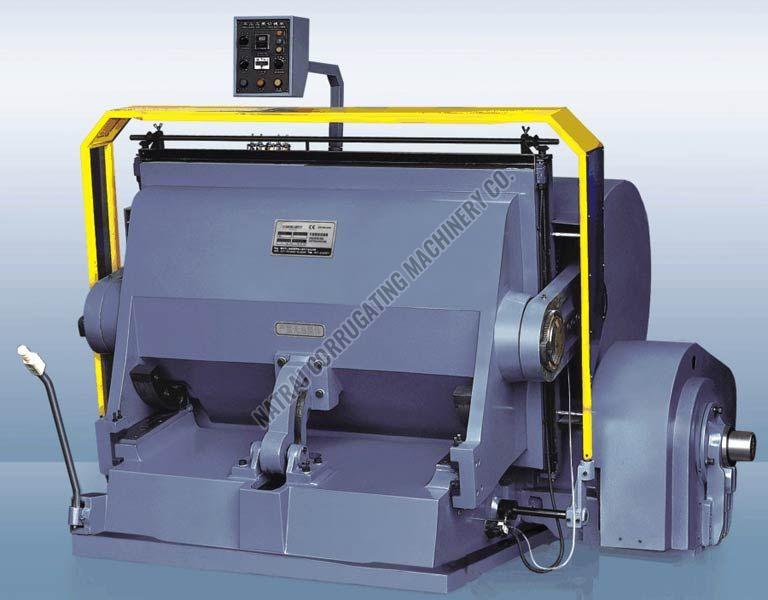

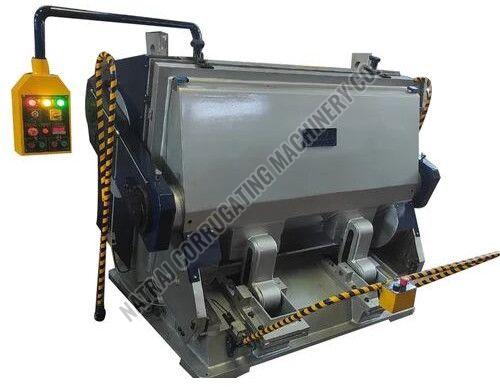

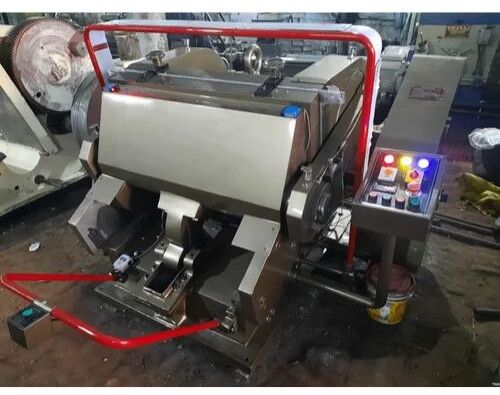

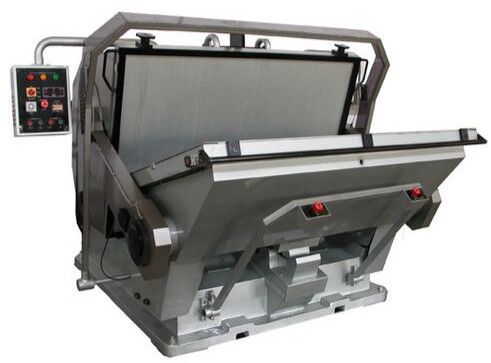

We are offering Automatic Die Punching Machine. SPECIFICATION: Model JSF-1150 Automatic Cutter and Creaser Size of Cutting Plate 1150x850mm Maximum Sheet Size 1090x790mm Minimum Sheet Size 520x360mm Thickness of Material Card board:0.2-3mm Plastic board:0.2-2mm Corrugated board: up to 7.8mm Maximum Speed 2100shr (depend on job) Machine Weight 9000kg Dimension L5900xW2100xH2000mm Power 12kw

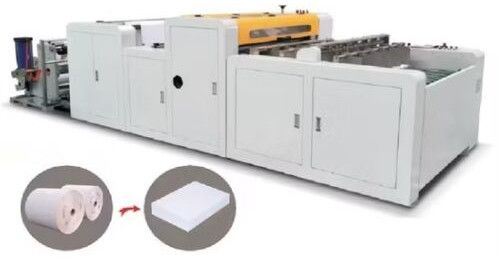

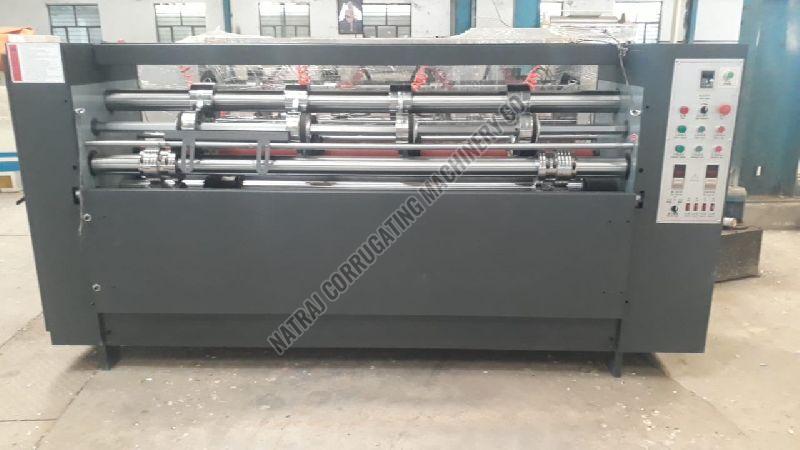

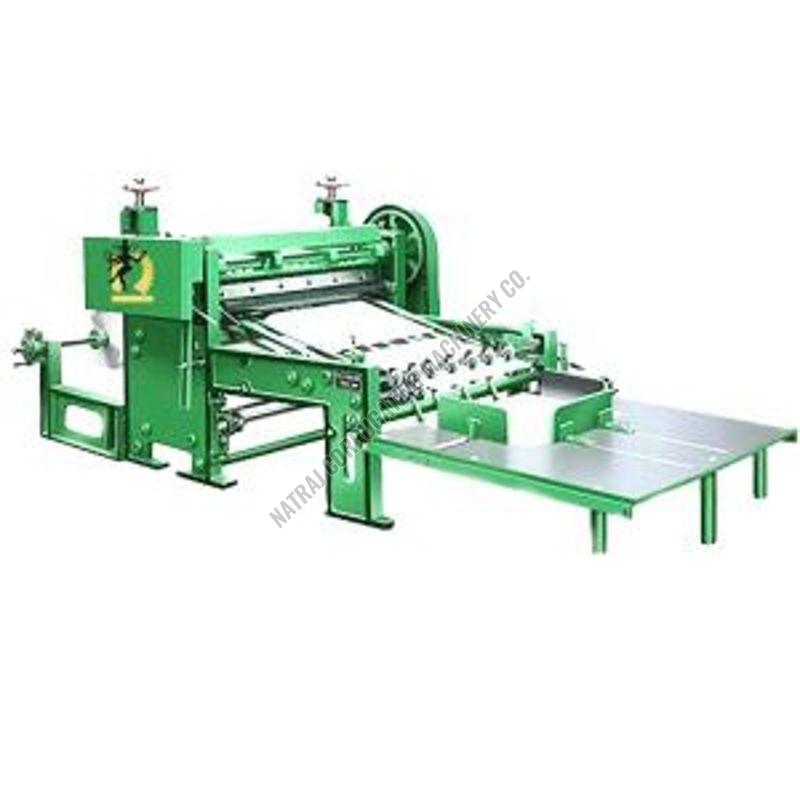

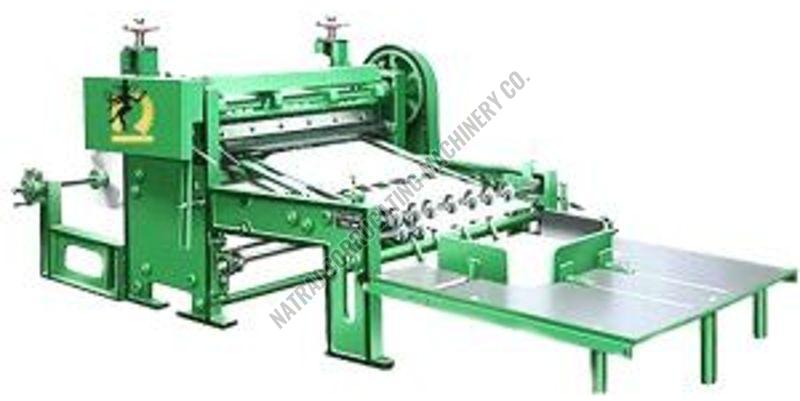

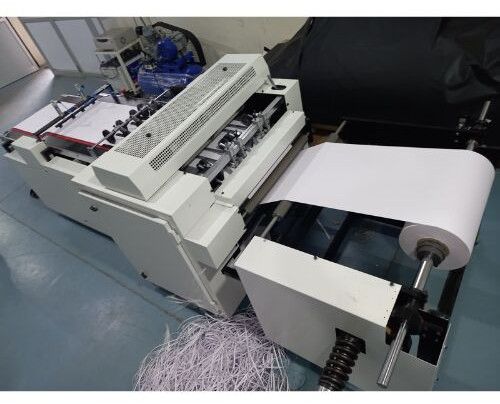

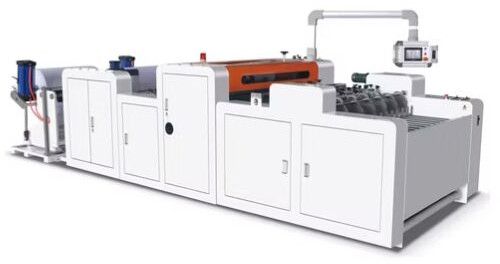

We are offering sheet cutting machine.paper reel to sheet cutter for paper& 2 ply cutting with 4 edge technology blades, gear model with variable ac drive.

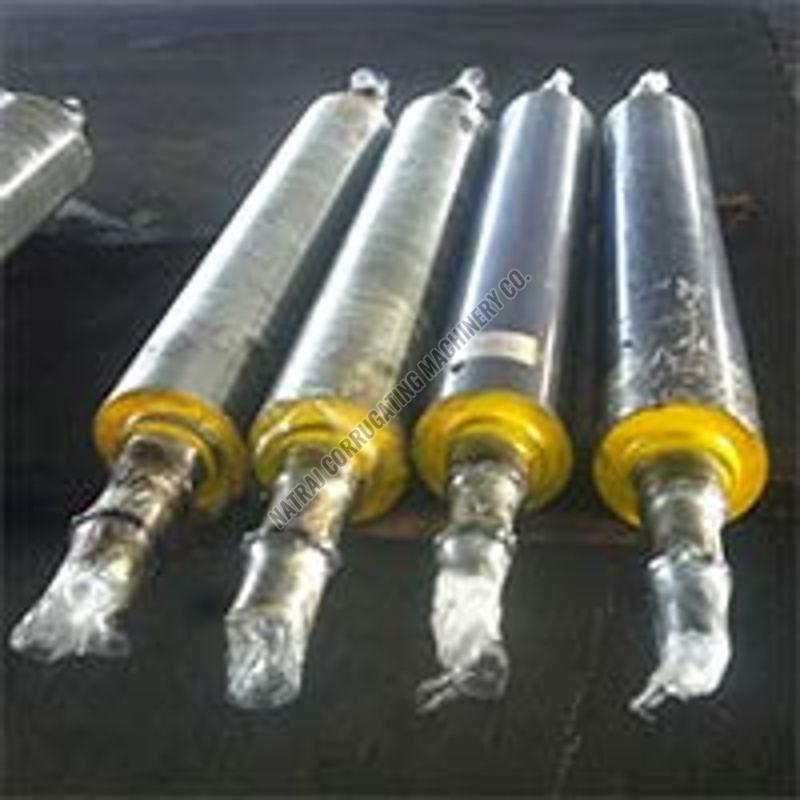

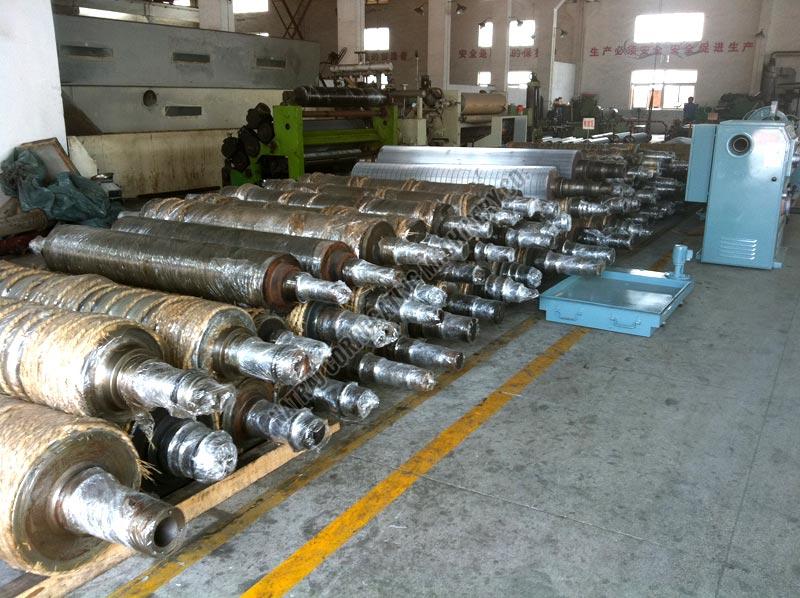

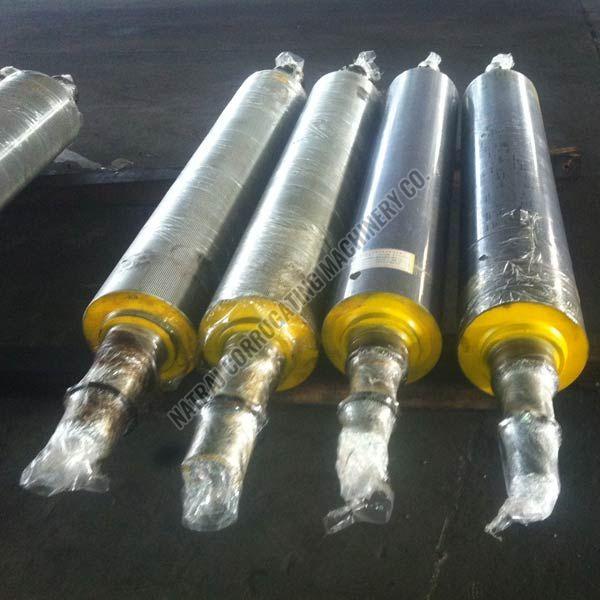

We are offering new and refurbish corrugating rollers with hard chroming, Roller Refluting & Roller plating available in stocks.

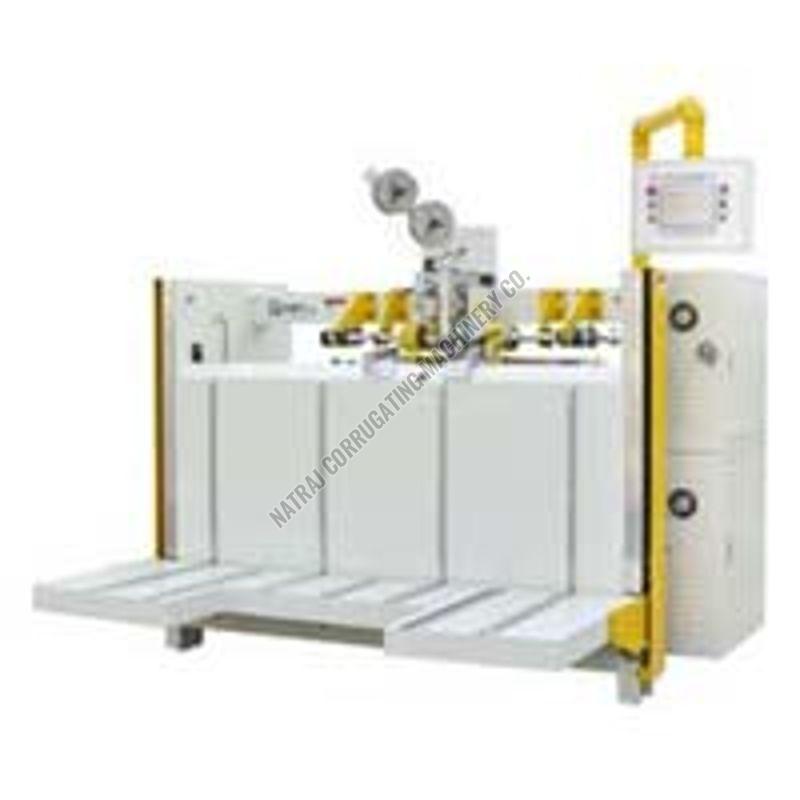

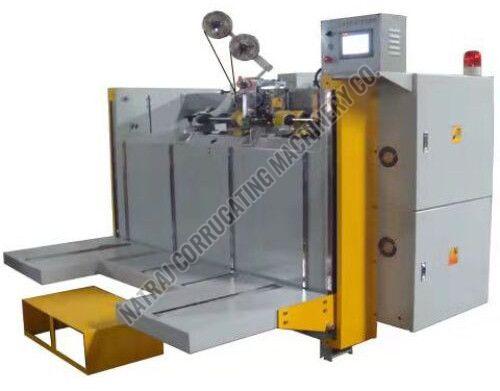

Key Features & Advantages

rn

rn
1. rn

   Imported Dual Servo Drive System

   rn
   rn
   • rn

     Ensures high precision and stable performance.

     rn
   rn
   • rn

     Reduces reliance on mechanical transmission, effectively lowering failure rates and maintenance needs.

     rn
   rn
   rn
rn
2. rn

   User-Friendly Touch Screen Interface

   rn
   rn
   • rn

     Easy control of:

     rn
     rn
     • rn

       Nail spacing

       rn
     rn
     • rn

       Number of nails

       rn
     rn
     • rn

       Nail types

       rn
     rn
     • rn

       Tailgate positioning

       rn
     rn
     rn
   rn
   • rn

     Allows for quick and convenient job switching.

     rn
   rn
   rn
rn
3. rn

   Advanced Control System

   rn
   rn
   • rn

     Integrated Siemens PLC for reliable and intelligent system management.

     rn
   rn
   • rn

     Provides consistent performance and programmable settings.

     rn
   rn
   rn
rn
4. rn

   Quality Pneumatic Components

   rn
   rn
   • rn

     Air compressor sourced from Taiwan for long-lasting and stable operation.

     rn
   rn
   rn
rn
5. rn

   Versatile Nailing Options

   rn
   rn
   • rn

     Supports:

     rn
     rn
     • rn

       Single nail

       rn
     rn
     • rn

       Double nail

       rn
     rn
     • rn

       Reinforced (strengthened) nailing

       rn
     rn
     rn
   rn
   • rn

     Capable of handling:

     rn
     rn
     • rn

       Single screw

       rn
     rn
     • rn

       Double-screw (2 middle nails) setups

       rn
     rn
     • rn

       Covered and uncovered cardboard boxes

       rn
     rn
     rn
   rn
   rn
rn
6. rn

   Safety & Quality Features

   rn
   rn
   • rn

     Nail line alarm system prevents missing nails and poor-quality stitching by alerting the operator to errors.

     rn
   rn
   • rn

     Avoids defective products due to incomplete nailing.

     rn
   rn
   rn
rn
7. rn

   Labor-Saving Operation

   rn
   rn
   • rn

     Requires only two operators for the full process:

     rn
     rn
     • rn

       Feeding semi-finished products

       rn
     rn
     • rn

       Stitching

       rn
     rn
     • rn

       Bundling

       rn
     rn
     rn
   rn
   • rn

     Reduces labor costs and increases operational efficiency.

     rn
   rn
   rn
rn

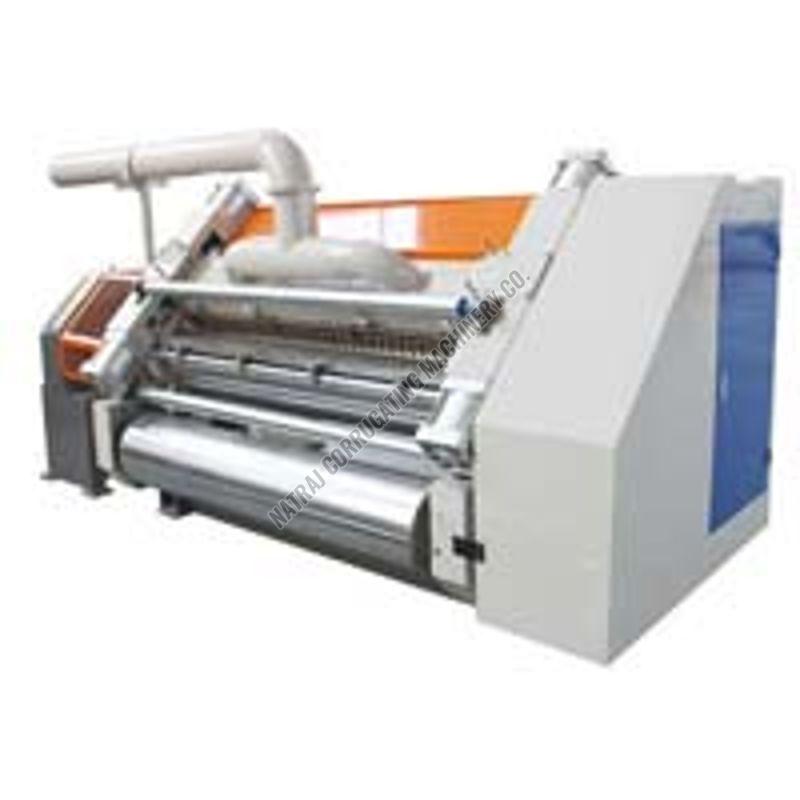

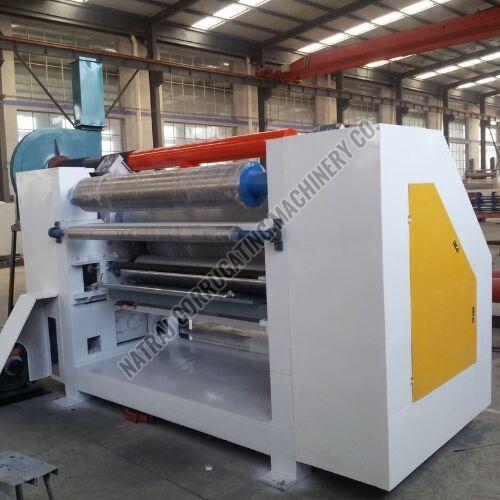

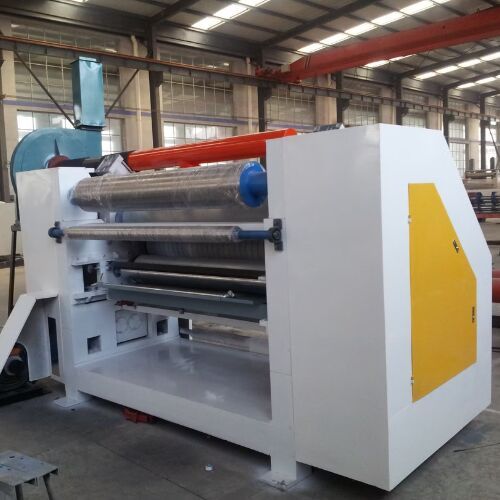

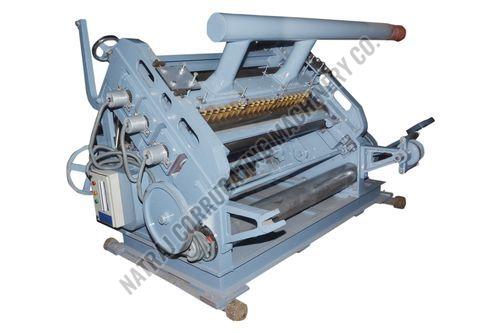

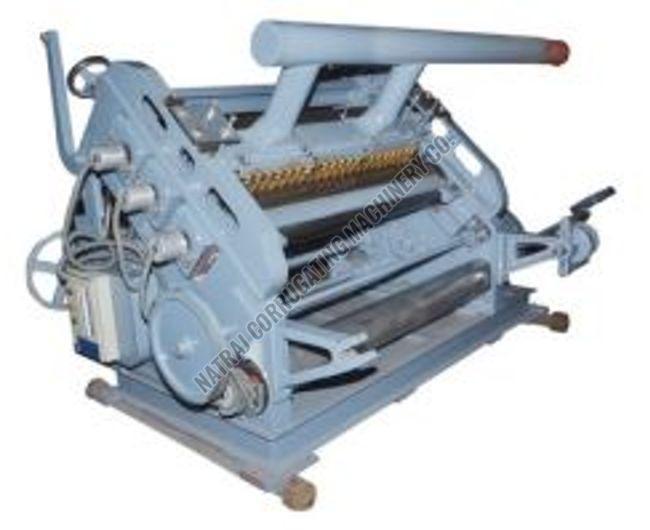

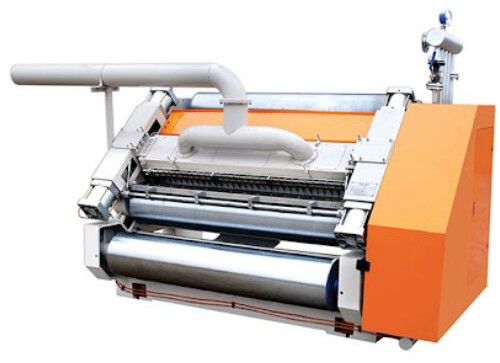

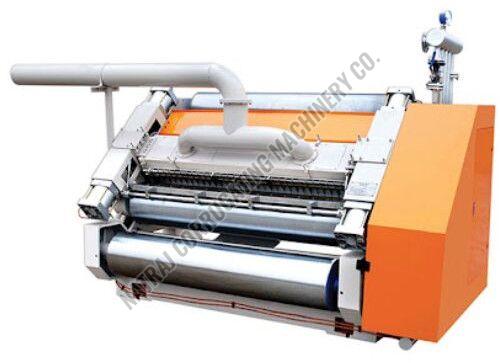

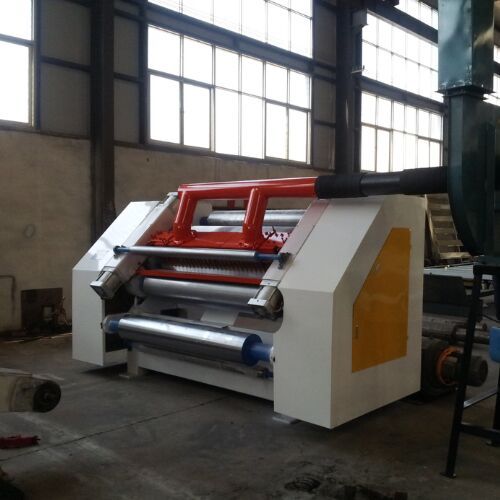

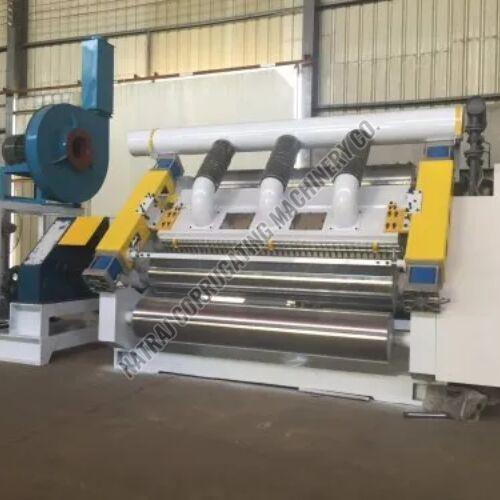

This Fingerless Type Single Facer is an advanced corrugating unit designed for high-speed, continuous production of corrugated board in fully automatic carton and box manufacturing lines. Using vacuum suction technology, it offers excellent flute formation, stable feeding, and high operational precision.

rn

Engineered for durability and efficiency, this unit is ideal for large-scale production environments demanding consistent output and low maintenance.

rnrn Structural & Key Features:rn

rn
• rn

  Vacuum Suction System
  High-pressure strong blower with silencer
  Ensures stable paper hold and flute accuracy
  All controls consolidated in a central operation cabinet (1.5m away from host)

  rn
rn
• rn

  Heavy-Duty Frame & Base
  Cast iron wallboards (thickness: 130 mm) for vibration-free performance
  Built with universal joints for alignment and durability

  rn
rn
• rn

  Corrugated Rollers
  Material: 48CrMo alloy steel
  Treated with quenching + laser hardening
  Roller Diameter: 280 mm
  Surface hardness: HRC 60+, finely ground finish for high flute quality

  rn
rn
• rn

  Pressure Roller
  Diameter: 284 mm, surface ground and chrome-plated
  Constructed from 45# carbon steel, quench-hardened
  Pneumatically controlled up/down movement with cushioning devices

  rn
rn
• rn

  Glue Application System
  Pneumatic glue engagement/disengagement
  Glue roller diameter: 215 mm, engraved 25-line textured pit design
  Chrome-plated rollers with scraping roller for clean glue control

  rn
rn
• rn

  Bearings
  All high-temperature bearings from Wafangdian, suited for demanding corrugation use

  rn
rn
• rn

  Preheating Roll
  Made from seamless steel pipe (300 mm) by Tiangang
  Connected using metal hose for safety and durability

  rn
rn

rnrn Applications:rn

rn
• rn

  Used in 3-ply and 5-ply automatic corrugated board lines

  rn
rn
• rn

  Ideal for high-speed, large-volume corrugated sheet production

  rn
rn
• rn

  Suitable for A, B, C, E or customized flute profiles

  rn
rn

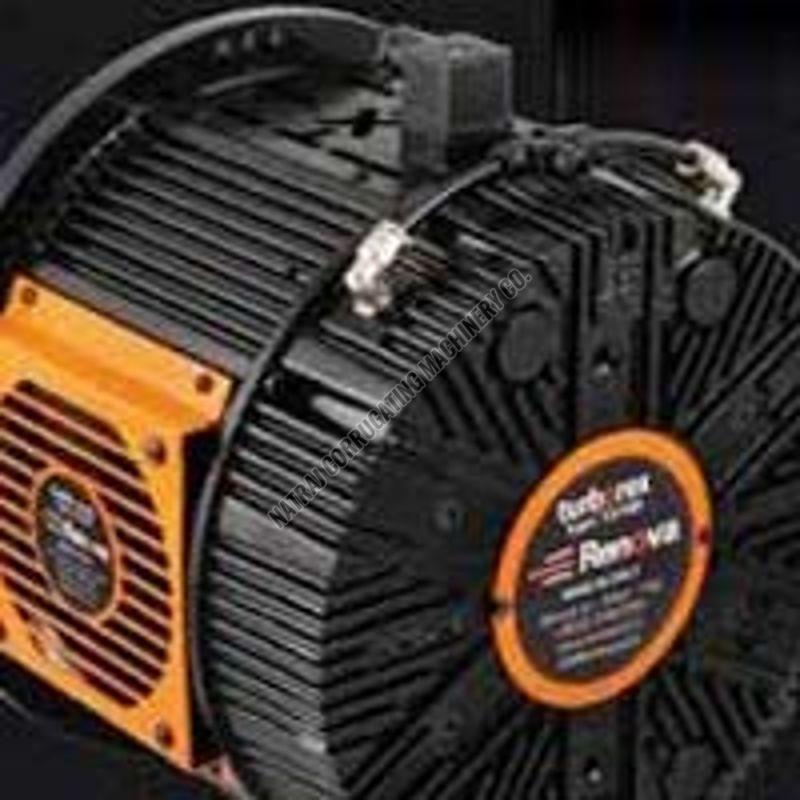

Reliable Braking Components for Smooth and Safe Operation

rnrn Product Overview:rn

We offer high-quality S-Brakes specially designed for use in corrugated board and box making plants. These brakes play a crucial role in tension control, roll handling, and machine safety, ensuring smooth performance across various stages of the corrugation and converting process.

rnrn Key Features:rn

rn
• rn

  Precision Tension Control
  Maintains accurate web tension during paper feeding and unwinding.

  rn
rn
• rn

  Durable Build
  Made from robust, heat-resistant materials for long life and consistent performance under continuous operation.

  rn
rn
• rn

  Smooth Operation
  Reduces machine jerks, misfeeds, and downtimeideal for high-speed automatic lines.

  rn
rn
• rn

  Easy Maintenance & Installation
  Designed for compatibility with most corrugating and converting machines.

  rn
rn

rnrn More Spare Parts Available:rn

We also supply a wide range of spares for corrugated board and box making plants, including:

rn

rn
• rn

  Cut-Off Blades

  rn
rn
• rn

  Crush Less Wheels

  rn
rn
• rn

  Slotter Knives & Creasing Rolls

  rn
rn
• rn

  Corrugating Rolls

  rn
rn
• rn

  Glue Wheels & Belts

  rn
rn
• rn

  Bearings, Sensors, and more

  rn
rn

rnrn Best Value Pricing:rn

All spare parts are available at competitive prices with reliable after-sales support and fast delivery.

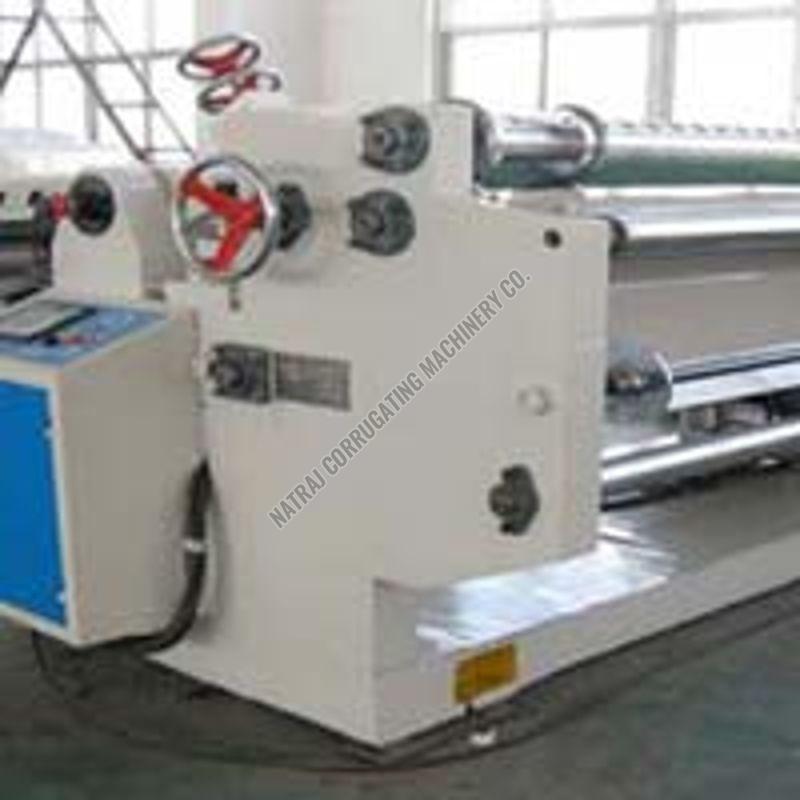

Functionality

rn

rn
• rn

  Designed for slitting and cutting fixed-length, single-side corrugated cardboard.

  rn
rn
• rn

  Ideal for high-end color print packaging due to:

  rn
  rn
  • rn

    Short order changeover time

    rn
  rn
  • rn

    High slitting and cutting precision

    rn
  rn
  • rn

    Fast operational speed

    rn
  rn
  • rn

    Minimal cardboard wastage during order changes

    rn
  rn
  rn
rn

rn

Control System

rn

rn
• rn

  Equipped with a PLC-based touch screen to provide real-time production monitoring for operators.

  rn
rn
• rn

  Features a 7-inch color touch screen with an independent man-machine interface for ease of operation.

  rn
rn
• rn

  Multi-group order memory is supported by the onboard computer system.

  rn
rn

rn

Drive System

rn

rn
• rn

  Uses a variable-frequency speed reduction motor to minimize failure due to mechanical wear.

  rn
rn
• rn

  Powered by a high-efficiency variable-frequency motor and advanced servo driver for enhanced performance.

  rn
rn

rn

Cutting Mechanism

rn

rn
• rn

  High-speed steel platen blade:

  rn
  rn
  • rn

    High hardness and long service life

    rn
  rn
  • rn

    Ensures high cutting quality and blade protection

    rn
  rn
  rn
rn
• rn

  Adjustable seamless precision gear for:

  rn
  rn
  • rn

    Accurate blade edge meshing

    rn
  rn
  • rn

    Excellent straightness of cuts

    rn
  rn
  rn
rn

rn

Application

rn

rn
• rn

  Suitable for use in color printing factories requiring high-efficiency and high-precision production.

  rn
rn

rn

Technical Parameters

rn

Product Overview

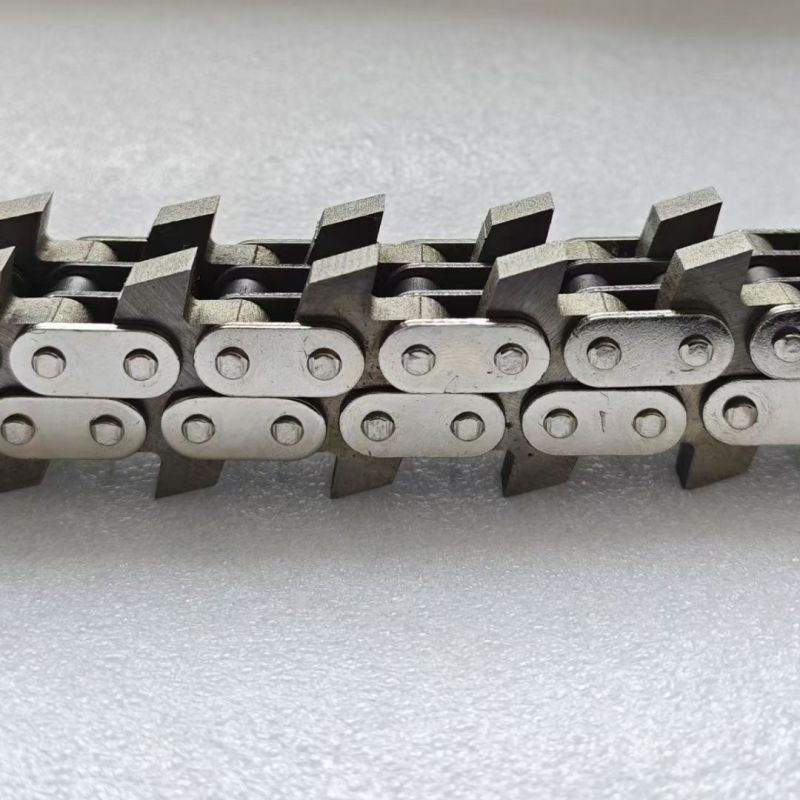

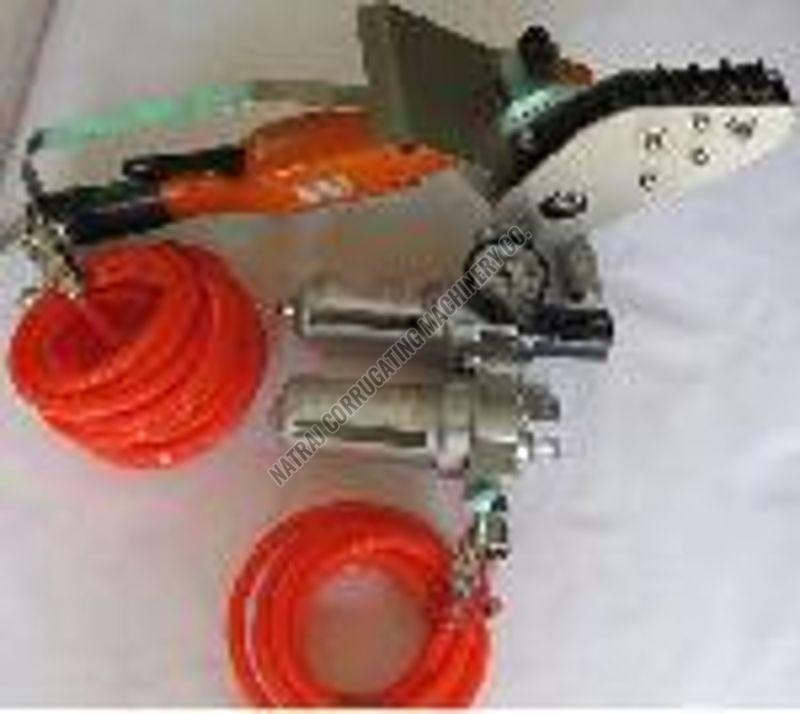

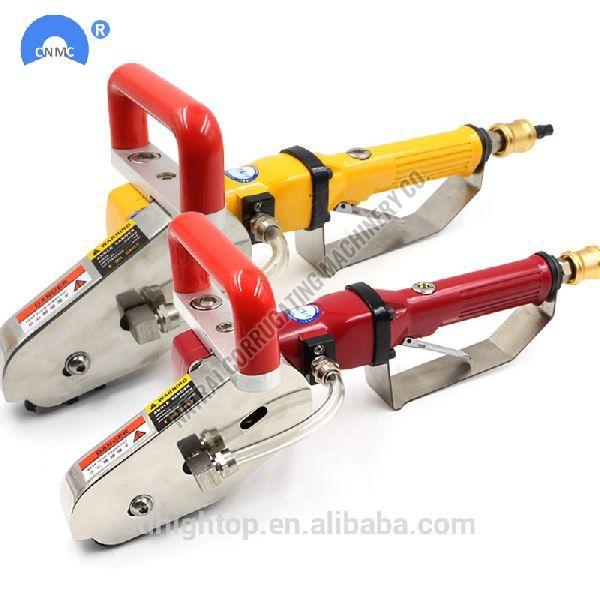

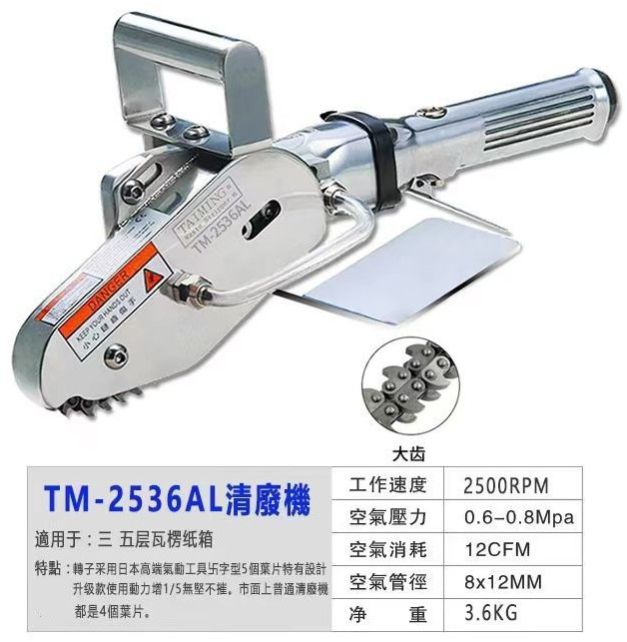

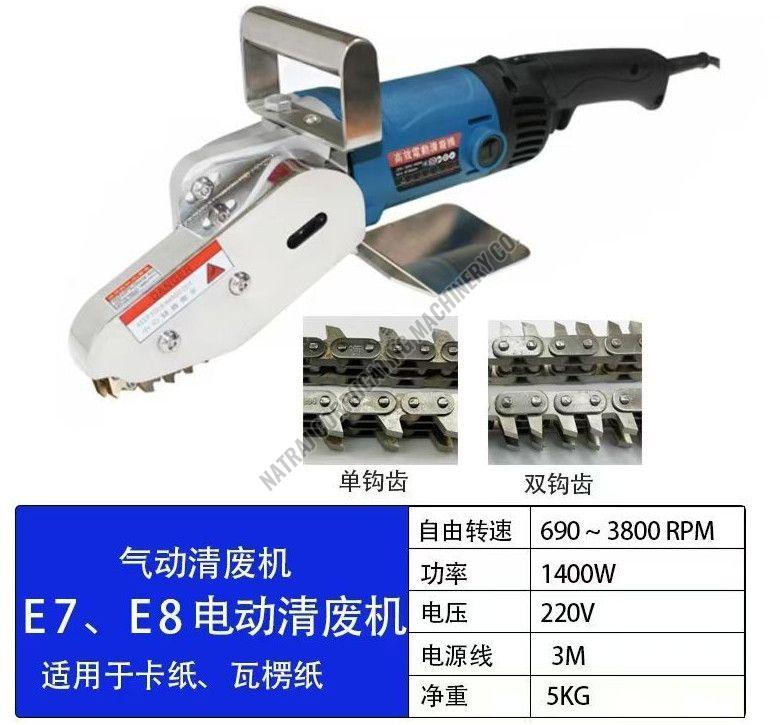

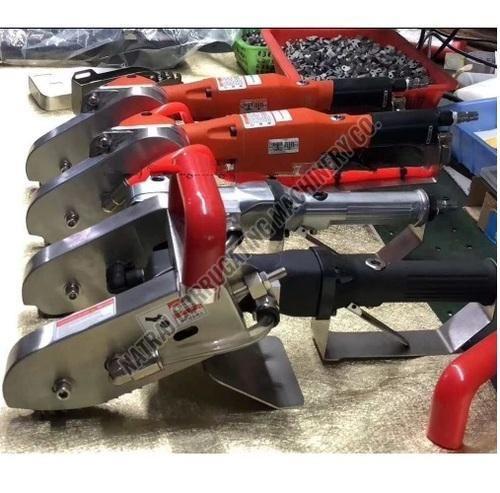

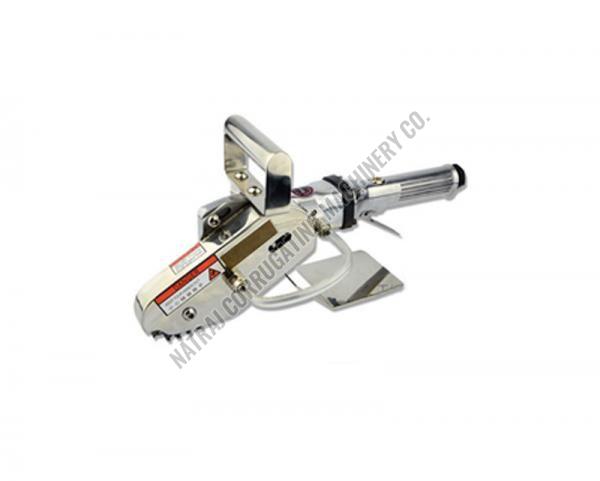

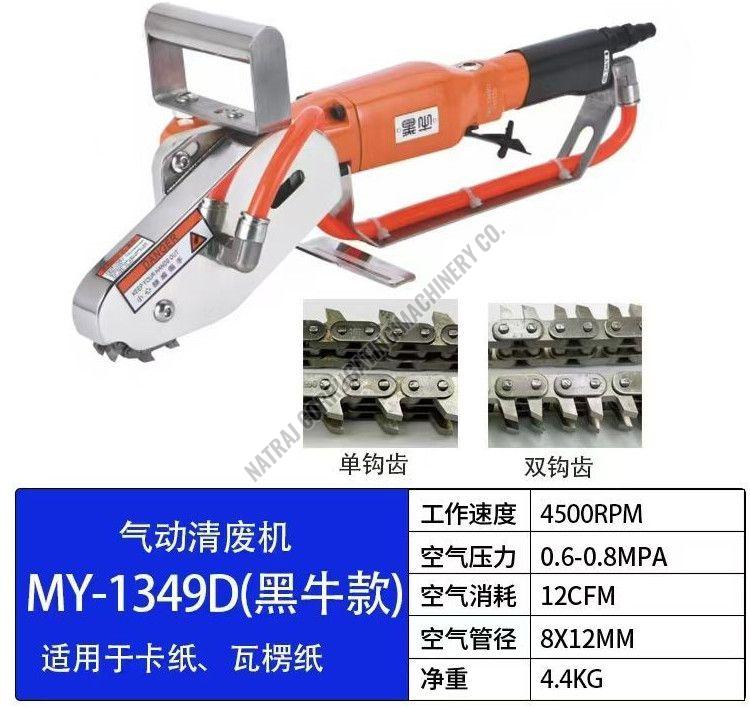

We offer a high-efficiency Waste Paper Stripper designed specifically for die-cut boxes. This tool is essential in the finishing process, helping to quickly and cleanly remove waste paper left over from the die-cutting process.

Key Features

• Effective Waste Removal
  Efficiently removes all waste material stuck to the board, ensuring clean and precise edges on finished boxes.

• Ideal for Die-Cut Applications
  Specially designed for use with die-cut corrugated and cardboard boxes.

• Time-Saving & Labor-Reducing
  Significantly reduces manual effort and time required for waste removal, improving overall production efficiency.

• Durable & Easy to Operate
  Built for long-term use with a robust design, and simple enough for operators of all skill levels.

We offer waste stripper machine for waste removal of die cut boxes , pnemetic machine , maintenance free, w]easy operation , easily remove duplex and corrugated board waste

We offer a high-quality Semi-Automatic Sheet Pasting Machine, designed for precision gluing of sheets in the corrugated box manufacturing process. Equipped with hard chrome-plated gum rolls and pipes, this machine ensures smooth and even glue application, long service life, and low maintenance.

\n\n Key Features:\n

\n
• \n

  Hard Chrome-Plated Gum Rolls & Pipes

  \n
  \n
  • \n

    Provides rust resistance, longer durability, and uniform glue application

    \n
  \n
  • \n

    Easy to clean and maintain

    \n
  \n
  \n
\n
• \n

  Fully Motorized Operation

  \n
  \n
  • \n

    Ensures consistent speed and accurate gum transfer

    \n
  \n
  • \n

    Enhances productivity and reduces manual effort

    \n
  \n
  \n
\n
• \n

  Semi-Automatic Design

  \n
  \n
  • \n

    Simple and user-friendly

    \n
  \n
  • \n

    Ideal for small to mid-scale corrugation plants

    \n
  \n
  \n
\n
• \n

  High-Precision Pasting

  \n
  \n
  • \n

    Ensures proper bonding of 2-ply, 3-ply, and 5-ply corrugated sheets

    \n
  \n
  • \n

    Reduces gum wastage and ensures fast drying

    \n
  \n
  \n
\n

\n\n Application:\n

\n
• \n

  Used in the production of corrugated boxes, cartons, and board lamination

  \n
\n
• \n

  Suitable for sheet-to-sheet gluing during box assembly processes

  \n
\n

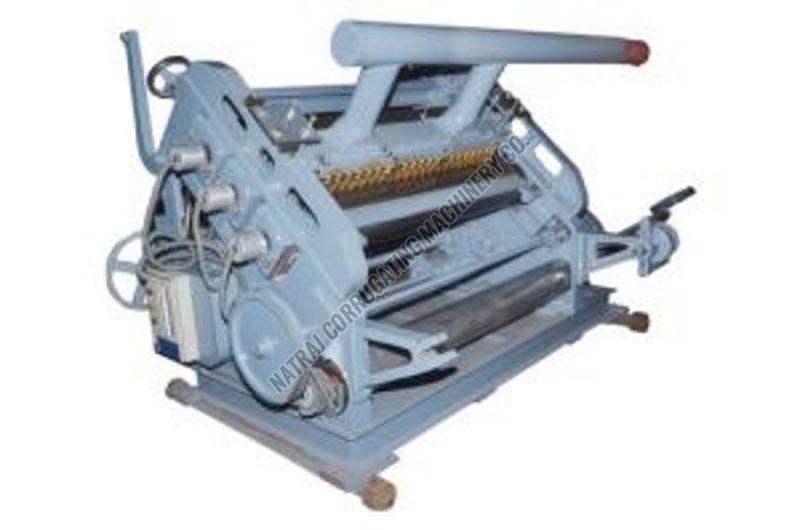

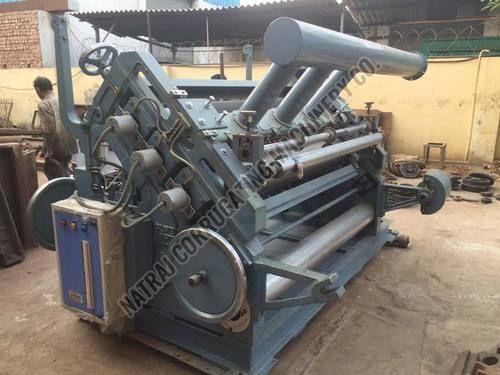

We are offering nagpal single facer fingerless oblique type corrugation. Single facer finger less oblique type corrugation , with hydraulic lifting mill roll stand complete with all accessorie

The Super Natraja Oblique Type Fingerless Corrugation Machine is an effective and efficient solution for manufacturing high-quality corrugated board. Designed with an oblique type frame and fingerless vacuum suction system, it delivers superior flute formation, reduced wastage, and higher productivity.

rn

This machine is a trusted choice for modern corrugated board and box making plants looking for reliable output and long-term durability.

rnrn Key Features:rn

rn
• rn

  Oblique Type Construction
  Rigid structure ensures smooth and vibration-free operation
  Easy maintenance and longer machine life

  rn
rn
• rn

  Fingerless Vacuum Suction Design
  No fingers required to transfer paper
  Offers greater production precision, less wear and tear, and reduced downtime

  rn
rn
• rn

  High-Speed Performance
  Suitable for continuous, heavy-duty operation
  Excellent flute formation across various paper grades

  rn
rn
• rn

  Custom Sizes Available
  Offered in a range of working widths to suit your production capacity
  Pricing is dependent on machine size and configuration

  rn
rn

rnrn Applications:rn

rn

rn
• rn

  Ideal for 3-ply and 5-ply corrugated board manufacturing

  rn
rn
• rn

  Used in packaging, box making, and carton converting plants

  rn
rn

Efficient Gluing for Carton Boxes & Paperboard Compact, Versatile, Cost-Saving

rnrnProduct Overview:rn

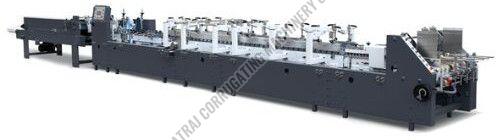

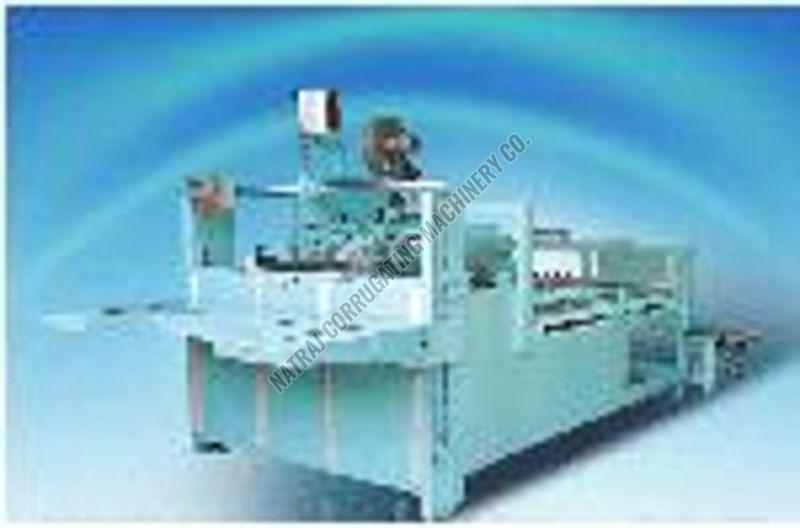

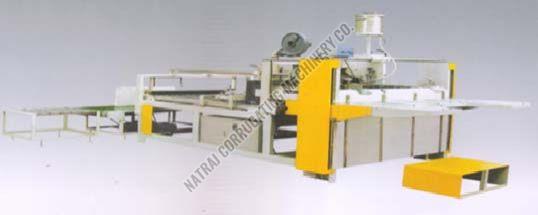

We offer a semi-automatic folder gluer designed for folding and gluing carton boxes, paperboard, and color boxes, including non-standard and special designs. It bridges the gap between manual labor and large automatic gluing systems, offering high flexibility, low operating cost, and ease of use ideal for short runs and small to medium-scale box manufacturers.

rnrn Key Advantages:rn

rn
1. rn

   Wide Range of Applications

   rn
   rn
   • rn

     Suitable for standard cartons, irregular boxes, color printed boxes, and cardboard boxes

     rn
   rn
   • rn

     Optional spray gun set enables gluing of lock-bottom and cover boxes

     rn
   rn
   rn
rn
2. rn

   Strong Adhesion Even on Laminated Board

   rn
   rn
   • rn

     Equipped with patented sanding heads that remove UV film or lamination in the glue area, ensuring strong and reliable bonding

     rn
   rn
   rn
rn
3. rn

   Glue Savings

   rn
   rn
   • rn

     Uses only one-third the glue compared to manual application reducing costs significantly

     rn
   rn
   rn
rn
4. rn

   Low Labor Requirement

   rn
   rn
   • rn

     Easy to operate, no skilled worker needed

     rn
   rn
   • rn

     Capable of producing 15, 000 to 25, 000 boxes per day with minimal supervision

     rn
   rn
   rn
rn
5. rn

   Superior Folding Quality

   rn
   rn
   • rn

     Produces smooth, neat, and square boxes, even with window-cut designs or irregular shapes that most auto-gluers cant handle

     rn
   rn
   rn
rn
6. rn

   Compact & Mobile Design

   rn
   rn
   • rn

     Occupies just 4 square meters

     rn
   rn
   • rn

     Easily movable with a pallet jack ideal for workshops with limited space

     rn
   rn
   rn
rn

rn Ideal For:rn

rn

rn
• rn

  Carton box manufacturers with diverse order types

  rn
rn
• rn

  Plants with limited floor space

  rn
rn
• rn

  Jobs requiring frequent changeovers and short runs

  rn
rn
• rn

  Businesses wanting a cost-effective upgrade from manual gluing

  rn
rn

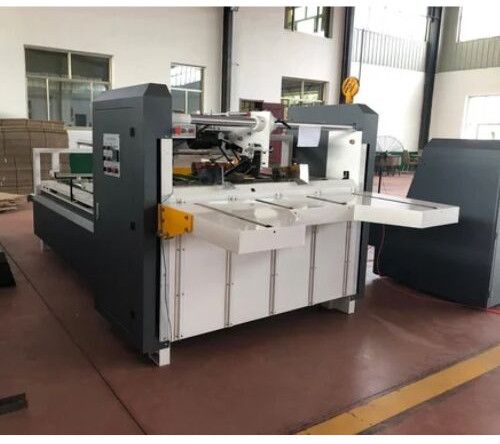

The Nagpal 2-Piece Joint Stitching Machine is specially designed for stitching large and small corrugated boxes, particularly 2-piece box designs that require strong, precise joints. Ideal for heavy-duty packaging applications, this machine is widely used in high-volume box manufacturing units.

\n\nKey Features:\n

\n
• \n

  Suitable for Both Large & Small Boxes
  Versatile design allows for secure stitching of extra-large 2-piece cartons as well as regular-sized corrugated boxes.

  \n
\n
• \n

  Heavy-Duty Structure
  Built to handle thick corrugated sheets and high workloads with ease.

  \n
\n
• \n

  Accurate Stitching Mechanism
  Ensures consistent, tight stitches for durable box assembly.

  \n
\n
• \n

  Easy Operation
  Simple control system allows for quick adjustments and smooth stitching cycles.

  \n
\n
• \n

  High Efficiency
  Designed to improve productivity in box finishing lines, reducing manual effort.

  \n
\n

\n\nApplications:\n



\n

\n
• \n

  Two-piece corrugated boxes

  \n
\n
• \n

  Heavy-duty packaging cartons

  \n
\n
• \n

  Large-format export boxes

  \n
\n
• \n

  Box flaps and joint stitching after gluing

  \n
\n

Nagpal Natraja wide Range of corrugated board and box making machinery. Corrugation machine comes in many variant vertical , obligue high speed, Double Profile High Speed. Pneumatic high speed etc.

rn

rn

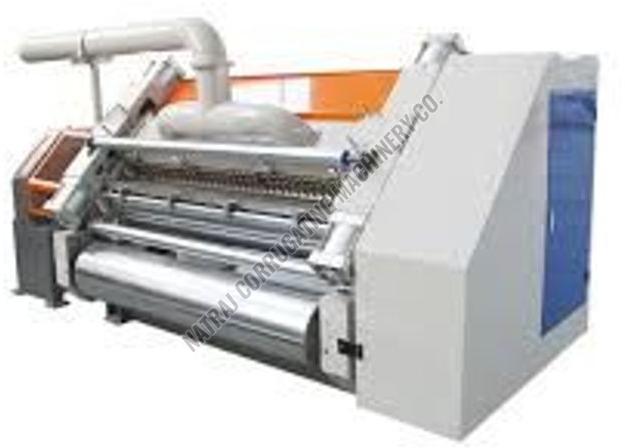

Semi Automatic Corrugated Box Making Machine with twin shaft motorized reel stand, has more production capacity than Vertical Type Corrugation Machine. The approximate output of the machine is 80 RFT per minute. This machine is with one pre heater also

RNN india unit of Mr Rishi Nagpal grand son of Late Mr Madan Lal Nagpal ji Founder of Nagpal Natraja Brand India's first company for providing service to corrugating box factory with providing chinese engineer for onsite visit and problem solutions. CNC Flute Grinding machine with hard chrome and tungsten coating facility

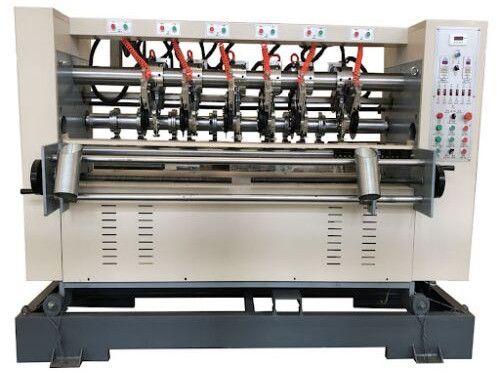

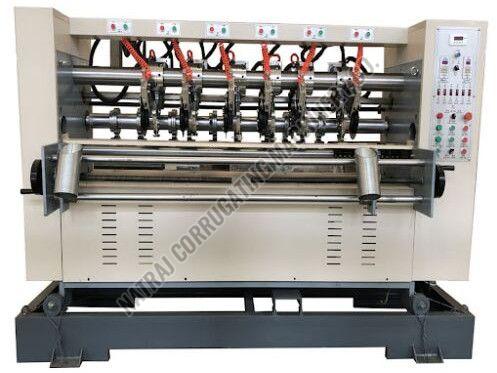

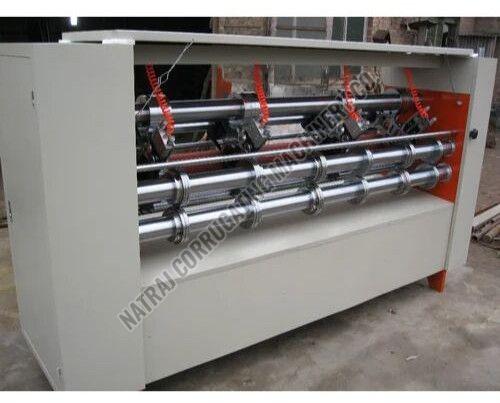

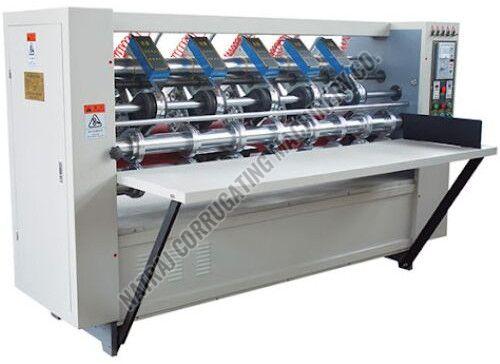

We offer Automatic Thin Blade Cardboard Slitter Scorer. Automatic positioning of slitter sets and scorer setsautomatic order change, order change time.

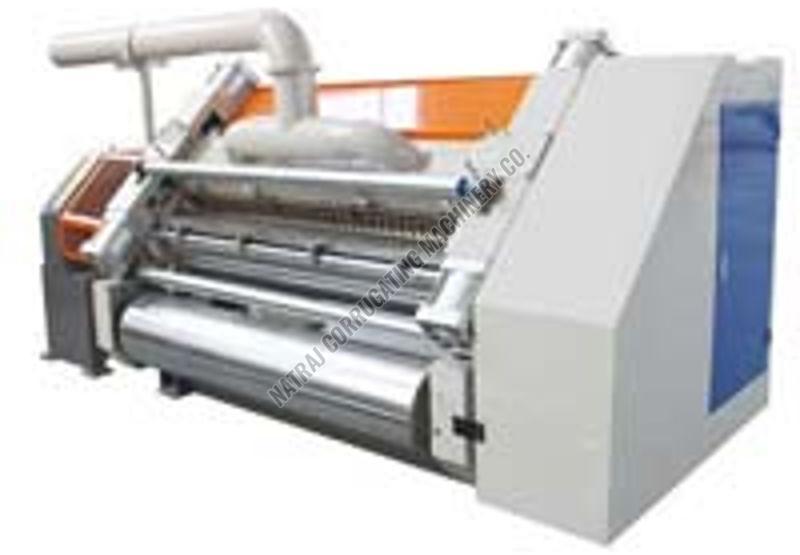

We are offering nagpal single facer oblique type corrugation machine. A.) alloy forged (narrow) flute (b-flute) rollers die od center 234mm, upper 229 mm, pressure: 254mm approx b.) hard chrome plated gum pipes c.) hard chrome plated gum rolls d.) s.s. Tubular heaters with control panel----------------------------------------------- 36kw e.) 1 nos hard chrome pre heaters with 4 kw heaters f.) heavy duty hydraulic lifting self loading reel stand with power pack -------------------------------------------------------------------------------- 2hp g.) ac frequency drive with control panel (bchmitsubhismbosch) h.) pressure roll made of graded ci casting. I.) standard tool with tool box. J.) motor (siemensngefabbkiloskercromptonbbl) (motor load.

this corrugation machine has considerable increase in efficiency & production over the oblique type machine. it is provided with hydraulic self-loading twin shaft reel stand. the up and down movement of upper flute roller is operated mechanically by screw system and manual locking is provided

a] a] one set of alloy steel en-19 grade flute roll fitted with roller bearings and heavy duty bearing blocks

b] upper roll dia 240mm

c] center roll dia 250 mm

d] pressure roll dia 240 mm

e] gum tray

f] reel stand self-loading hydraulic:-1.5 kw

finished and hard chrome plated.

Product Overviewrn

This upgraded corrugation machine is engineered for significantly enhanced efficiency and production output compared to traditional oblique type machines. Designed with user convenience and precision in mind, it comes equipped with advanced mechanical and hydraulic features to ensure consistent performance and ease of operation.

rnrnKey Featuresrn

rn
• rn

  Increased Efficiency & Output

  rn
  rn
  • rn

    Improved design allows for higher speed and better productivity than oblique corrugators.

    rn
  rn
  • rn

    Ideal for high-volume corrugated board manufacturing.

    rn
  rn
  rn
rn
• rn

  Hydraulic Self-Loading Twin Shaft Reel Stand

  rn
  rn
  • rn

    Facilitates quick and effortless reel loading.

    rn
  rn
  • rn

    Increases production uptime and reduces manual effort.

    rn
  rn
  rn
rn
• rn

  Mechanically Operated Flute Roller Adjustment

  rn
  rn
  • rn

    The up and down movement of the upper flute roller is managed via a mechanical screw system.

    rn
  rn
  • rn

    Manual locking provided for operational safety and precision.

    rn
  rn
  rn
rn

rnrnAdvantagesrn

rn
• rn

  Enhanced operational control and safety

  rn
rn
• rn

  Less downtime due to fast reel loading

  rn
rn
• rn

  Improved corrugation consistency

  rn
rn
• rn

  Ideal for plants looking to upgrade from oblique models

  rn
rn

rn

rn

rn

This corrugation machine has considerable increase in efficiency & production over the oblique type machine. It is provided with hydraulic self-loading twin shaft reel stand.

ONE SET OF ALLOY STEEL EN-19 GRADE FLUTE ROLL FITTED WITH ROLLER BEARINGS AND HEAVY DUTY BEARING BLOCKS

A)Upper Roll dia 240mm

B)Center Roll dia 250 mm

C)Pressure Roll dia 240 mm

D)Gum Tray

E)Reel Stand Self-loading Hydraulic:-1.5 KW

Gum Roller M.S Solid Material & Pasting Roller M.S Pipe Material. Both Are Finely Ground & finished and hard chrome plated

F)A]3 Nos. Main Heater 4 KW and one Pre-heater

Stainless Steel Electric Heaters with Industrial PlugAndSocketsMountedOnMachine-13KwEachAndOne Pre-Heater-03 Kw X 3= 39 KW- Make Electro )

(NOTE:-IF ADD GAS Previous system39-KW-ELC LOAD WILL LEES

Electric Motor

MAIN MOTOR :-3.7 KW

ISI Mark Electric Motor (Crompton Havells Motor & ABB motor (as per availability)

D] Vacuum Jacket System with Blower & silencer(7.5 KW ) For 52) (62&72 inch 10 KW)

VFD Drive delta & Crompton ((as per availability)

Worm Reduction Gear Box

Heavy Duty Main Body with Robust Construction

The Up And Down Movement of Upper Flute Roller is Operated Mechanically by Screw System And Manual Locking is Provided

LPG & PNG Previous system also available in corrugation machine- price Extra(as per customer recruitment.

This corrugation machine has considerable increase in efficiency & production over the oblique type machine. It is provided with hydraulic self-loading twin shaft reel stand.

ONE SET OF ALLOY STEEL EN-19 GRADE FLUTE ROLL FITTED WITH ROLLER BEARINGS AND HEAVY DUTY BEARING BLOCKS

A)Upper Roll dia 240mm

B)Center Roll dia 250 mm

C)Pressure Roll dia 240 mm

D)Gum Tray

E)Reel Stand Self-loading Hydraulic:-1.5 KW

Gum Roller M.S Solid Material & Pasting Roller M.S Pipe Material. Both Are Finely Ground & finished and hard chrome plated

F)A] 3 Nos. Main Heater 4 KW and one Pre-heater

Stainless Steel Electric Heaters with Industrial Plug AndSocketsMountedOn Machine- 13KwEachAnd One Pre-Heater-03 Kw X 3= 39 KW- Make Electro )

( NOTE:-IF ADD GAS Previous system 39-KW-ELC LOAD WILL LEES

Electric Motor

MAIN MOTOR :-3.7 KW

ISI Mark Electric Motor (Crompton Havells Motor & ABB motor (as per availability)

D] Vacuum Jacket System with Blower & silencer(7.5 KW ) For 52) (62&72 inch 10 KW)

VFD Drive delta & Crompton ((as per availability)

Worm Reduction Gear Box

Heavy Duty Main Body with Robust Construction

The Up And Down Movement of Upper Flute Roller is Operated Mechanically by Screw System And Manual Locking is Provided

LPG & PNG Previous system also available in corrugation machine- price Extra(as per customer recruitment

We offer rnn-corrugation cardboard semi automatic gluer.Specifications effective width1800, 2200, 2500mmmax. Speed150, 200, 250, 300mmincutting length4009999mmcutting precision1mm features ac servo cutting system automatic synchronization of cardboards speed; fixed length cut off as its basic function; automatic order change; italian branded permanent magnet synchronous ac servo motor and german branded servo controller adopted for high efficiency and precision cutoff. optional color mark tracking system is used if preprinted liner paper is put into production.Vf control of feed-in and feed-outvariable frequency motor and inverter control used for cardboards feed-in and feed-out. Timing belt transmission; pu wheels used for cardboard pressing at feeding; automatic synchronization of conveying speed and cardboard real speed.(optional) color mark tracking systemoptional color mark tracking system is used if preprinted liner paper is put into production. touch-screen monitorstandard 5.7 touch-screen monitor and friendly hmi on operator console is used for on-site operating. superior working conditionsindividual sealed control cabinet; equipped with industrial air-conditioning system; dust-free, constant temperature and humidity working conditions ensures longer life-span of electrical components.Stability and reliabilityhigh-quality alloy straight knife and raw materials, strict heat treatment, high-precision mechanical processing, ensures stable operation of equipment on the long run.Use of international branded electrical, pneumatic components, standard parts, ensures high reliability and long service life.High automationhigh-automatic running and control, improve the efficiency, save labors, and reduce labor intensityce approvalour products are designed and constructed strictly according to ce standards and have obtained ce approval via sgs.

We are offering punching machine.rnCreasing and cutting machine is special equipment forrncreasing and cutting ordinary cardboard corrugatedrnbored plastic and leather in general applicable to printingrnpackaging decoration and plastic in dustries. Machine isrncharacterized by compact strrctute, fine workmanship, rnbig pressure, high precision and easy and reliable operation, etc.rnFeaturesrnsliding bearing are made of high quality alloy cooper, rnthus to get effect of anti-frietion and shake reducingrnflywheel is with big moment of force and large pressurernhigh strength due tone piece casting by using top-rankingrn material for machine bodyrnhigh strength duo to integral casting with high quality steelrnsingle plate electromagnetic clutch is sensitive and reliable safety.rnAll series of machine can be selected with air clutchrnsingle pressing, continuous pressing, adjustable delayrn pressing availablernoperational height is reasonable arranged. The opening anglern of moving bed is optimumrnreliable performance of safety protection systemrninner and outer movable frame can be fitted, automaticrnoil pump matching

This machine saves crucial space & time in the factory by incorporating any 2 type of flutes in a single machine thereby facilitating immediate and trouble free change of flutes by a hydraulic system. .

rn

Heavy Duty High Speed Corrugating Machine with hydraulic self-loading Reel stand Double - Profile With Two Set of Rolls.

rn

Double Profile Paper Corrugation Machineused for high rate of production fortwo ply corrugated sheetsor rolls and enhanced efficiency withInternational quality and standardwith modern demands of today\'s corrugators.

rn

This Double Profile Paper Corrugation Machine is compact size easy to operate saves precious space in factory economical labor saving and less maintenance required. This machine comes with two set of Rolls. Electric Heaters are provided for perfect lamination of the board

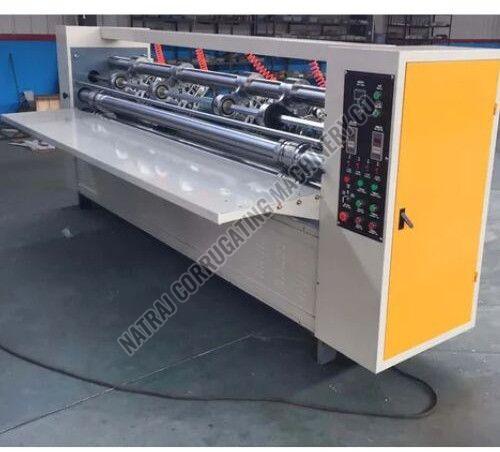

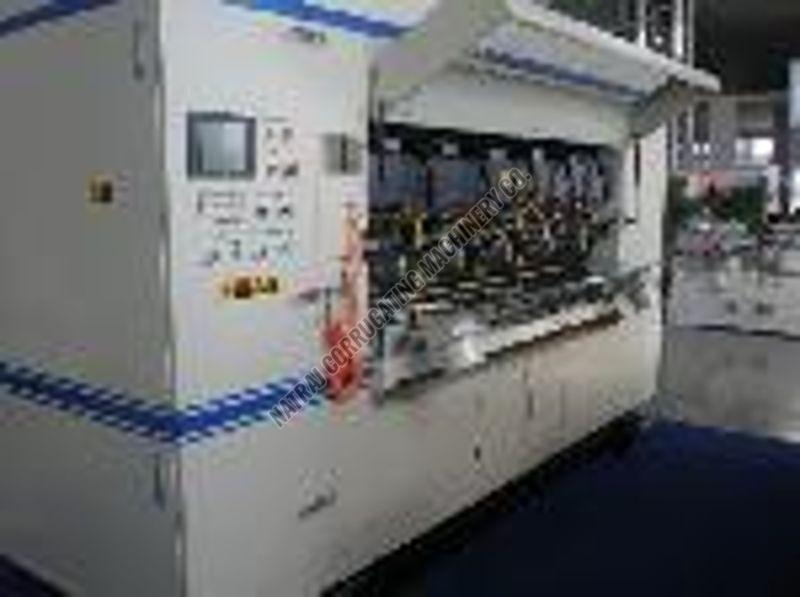

We offer a high-performance Thin Blade Slitter Scorer, designed for precision slitting and scoring of corrugated sheets. Built with advanced blade control and smooth cutting technology, it ensures clean edges and minimal board damage. Ideal for integration into automatic corrugated board production lines.

rnrn Main Features:rn

rn
1. rn

   Electric Blade Distance Adjustment
   Fast and accurate setup with automatic pneumatic locking system.

   rn
rn
2. rn

   Thin Blade Cutting Technology
   Uses a high-speed rotary blade that sharpens continuously via grinding wheels, ensuring a clean and smooth cut with no crushing or tearing.

   rn
rn
3. rn

   Multi-Function Operation
   Performs slitting, scoring, creasing, and paper feeding in one pass.

   rn
rn
4. rn

   Manual & Automatic Blade Sharpening Modes
   Choose between manual or timed automatic sharpening to maintain consistent cutting quality and prolong blade life.

   rn
rn
5. rn

   Independent Blade Structure
   Blade sets can be adjusted or switched based on the number of boards being cut, improving flexibility and operational efficiency.

   rn
rn

rn Applications:rn

rn
• rn

  Corrugated sheet slitting and scoring

  rn
rn
• rn

  Suitable for 3-ply, 5-ply, and 7-ply board

  rn
rn
• rn

  Ideal for use in automatic or semi-automatic box production lines

  rn
rn

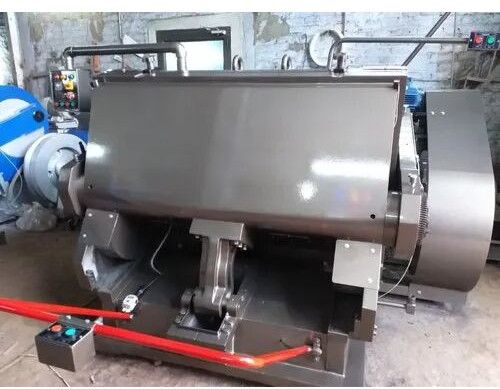

The Nagpal Heavy Duty Platen Press is a robust, multi-functional machine designed for die cutting, creasing, and embossing of paperboard and corrugated sheets. It delivers consistent high-precision performance, making it a perfect solution for carton manufacturers, printers, and packaging converters.

rn

Equipped with modern safety and automation features, it ensures operator comfort, minimal downtime, and maximum output.

rnrn Key Features & Accessories (Standard Supply):rn

rn
• rn

  Electro-Magnetic Clutch & Brake
  Ensures smooth start/stop operation and improved safety

  rn
rn
• rn

  Single \"Dwell\" Function
  Allows the platen to pause at the open position for safer and easier feeding

  rn
rn
• rn

  Wrap-Around Safety Device
  Full-length protective guard enhances operator safety

  rn
rn
• rn

  Centralized Lubrication System
  Provides consistent oiling to critical parts for low maintenance and long life

  rn
rn
• rn

  Delivery & Feeding Table
  For easy handling of sheets during operation

  rn
rn
• rn

  Impression Counter (Automatic)
  Tracks total operations for production monitoring

  rn
rn
• rn

  Two Normal Chases
  Heavy-duty chases for locking dies or formes

  rn
rn
• rn

  One Make-Ready Plate (MS)
  Used for underlaying to adjust die cutting depth

  rn
rn
• rn

  Set of Service Tools
  Includes basic tools for maintenance and operation

  rn
rn

rnrn Applications:rn

rn
• rn

  Carton box cutting and creasing

  rn
rn
• rn

  Embossing for branding and decorative finishes

  rn
rn
• rn

  Die-cutting for labels, tags, folders, and packaging components

  rn
rn

rnrn Why Choose Nagpal Platen Press?rn

rn

rn
• rn

  Trusted brand with decades of industry experience

  rn
rn
• rn

  Designed for heavy-duty, continuous production

  rn
rn
• rn

  Safety features that meet industrial standards

  rn
rn
• rn

  Supported with spares and service across India

  rn
rn

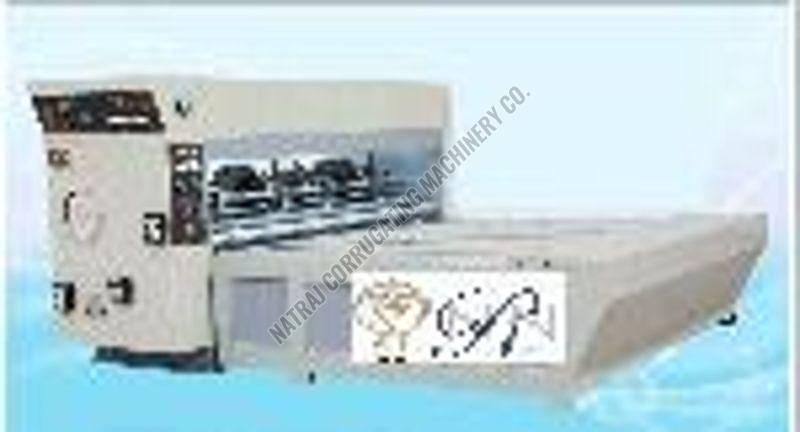

We are offering rs4 machine.Model no.Over paper areaslotting depthworking speedpcsminsnq 22002150 x 14703600-60snq 25002450 x 14703600-60snq 22002150 x 16504100-60snq 25002450 x 16504100-60 electric 360 degree phase adjustment, taiwanshowdown brake motor, coded pulse monitor, sensitive and accurate, microcomputer show, memory and automatic zero adjustment phase function

The HQJ-1600 is a precision automatic roll-to-sheet paper cutting machine, designed for high-speed, high-accuracy cutting of various paper materials including 40300g copy paper, double adhesive paper, and paper-plastic composite materials. With dual roll capability and intelligent control systems, it\'s ideal for packaging, printing, and stationery industries.

rnrnKey Features:rn

rn
• rn

  Material Compatibility:
  Handles a wide range of substrates copy paper, adhesive-coated paper, and laminated composite sheets.

  rn
rn
• rn

  High-Speed & Precision Cutting:

  rn
  rn
  • rn

    Cutting speed: 50200 cuts/min

    rn
  rn
  • rn

    Cutting accuracy: 0.2 mm

    rn
  rn
  • rn

    Cutting length range: 200500 mm

    rn
  rn
  rn
rn
• rn

  Advanced Control System:

  rn
  rn
  • rn

    Panasonic PLC for stable automation

    rn
  rn
  • rn

    Weinview touchscreen for user-friendly control interface

    rn
  rn
  • rn

    Real-time monitoring and parameter setting

    rn
  rn
  rn
rn
• rn

  Unwinding System:

  rn
  rn
  • rn

    Dual roll support

    rn
  rn
  • rn

    Max. roll diameter: 1400 mm

    rn
  rn
  • rn

    Pneumatic 3-inch air shaft discharger

    rn
  rn
  • rn

    Automatic tension control system

    rn
  rn
  • rn

    Ultrasonic EPC system for precise edge alignment

    rn
  rn
  rn
rn
• rn

  Drive & Motion Components:

  rn
  rn
  • rn

    Main traction motor: 1.5 kW (Shanghai brand)

    rn
  rn
  • rn

    Feed motor: 3.0 kW (Yaskawa, Japan)

    rn
  rn
  • rn

    Fan motor: 0.75 kW

    rn
  rn
  • rn

    Frequency converter: Guangdong SineE

    rn
  rn
  rn
rn
• rn

  Cutting & Slitting:

  rn
  rn
  • rn

    Revolving knife: HSS (High-Speed Steel), double-edge usable

    rn
  rn
  • rn

    Slitting knife: 7-position adjustable

    rn
  rn
  • rn

    Smooth, burr-free cuts for quality finish

    rn
  rn
  rn
rn
• rn

  Mechanical & Electrical Parts:

  rn
  rn
  • rn

    Bearings: Harbin brand

    rn
  rn
  • rn

    Pneumatic components: Taiwan Mindman

    rn
  rn
  • rn

    Electrical components: Schneider

    rn
  rn
  • rn

    Switch knobs: Schneider

    rn
  rn
  rn
rn

rnrnTechnical Specifications:rn

rn

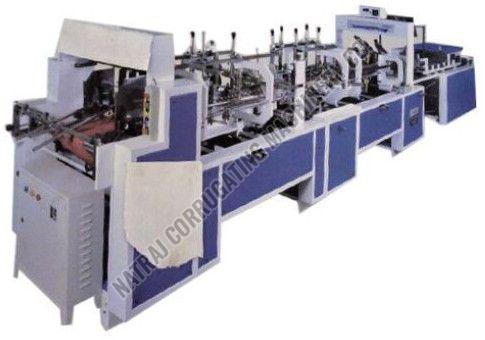

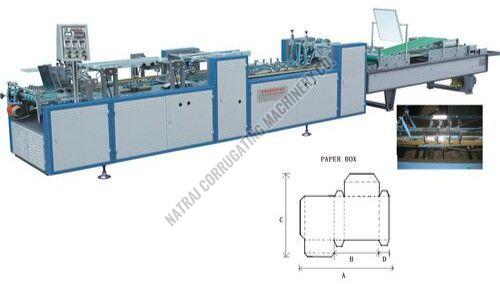

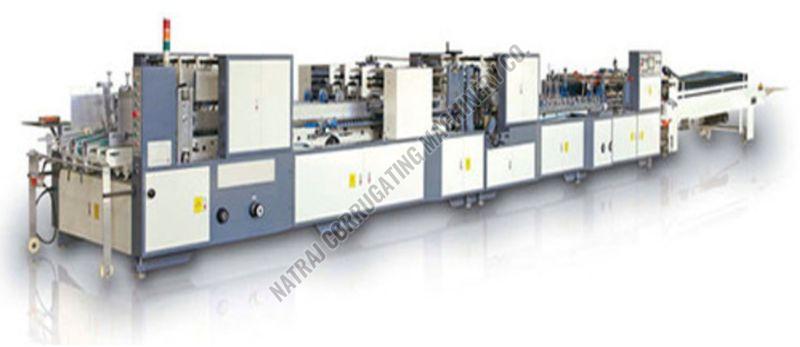

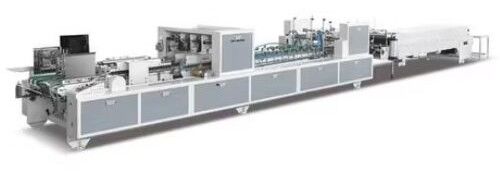

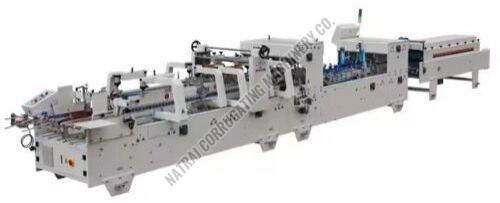

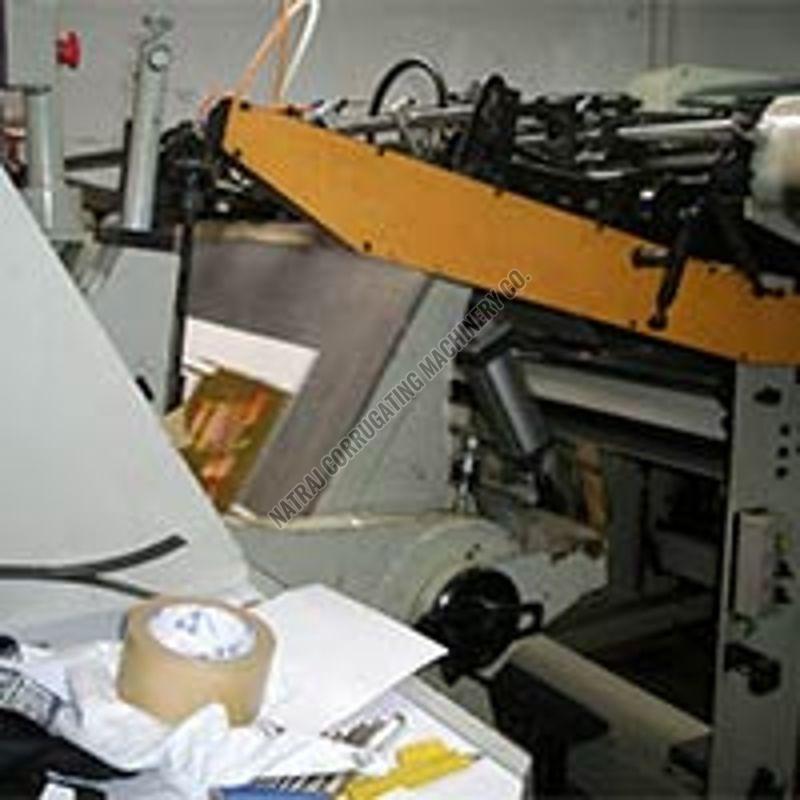

High-Performance Automatic Folder Gluer for Small Boxes Perfect Solution for Folding & Gluing Small Mono Cartons Boost Your Packaging Line with Speed, Precision & Reliability!

Presenting ourstate-of-the-art Automatic Folder Gluer, designedexclusively for small-sized mono cartons. Whether you're infood, beverage, pharma, cosmetics, or general packaging, this machine deliversseamless folding & gluingat lightning-fast speedswithunmatched accuracy.

Available Models:

ModelMax SpeedPowerDimensions (LWH)Weight

RNN-580	300 m/min	9.6 kW	11 1.2 1.5 m	4.5 Tons
RNN-850	300 m/min	9.6 kW	15 1.5 1.7 m	6 Tons
RNN-1100	250 m/min	14 kW	15.2 2.0 1.7 m	8 Tons
RNN-1480	300 m/min	20 kW	16 2.3 1.7 m	10 Tons

Top Features at a Glance:Precision Engineering

• Two-wheel gluing system foraccurate, consistent gluing

• Noise-freeperformance with premium motors & timing belts

User-Friendly Operation

• Smart HMI Panelfor easy control & quick troubleshooting

• PLC systemensures precision folding, gluing & speed regulation

Durability You Can Count On

• Robustaluminum conveyorsystem for long life & low maintenance

• Designed for24/7 operationwithout compromising quality

Advanced Monitoring & Automation

• Real-time sensors withPC displayfor live quality checks

• Fast changeover for differentcarton sizes and materials

Ideal For:

Mono cartonsPaperboard & Corrugated boxesBeer & Beverage packagingFood & Dairy boxesCosmetic & Pharma packaging

Why Our Folder Gluer Stands Out:

Maximize Productionwith up to300 meters/min speed
Reduce Downtimewith easy-to-adjust settings
Handle Multiple Carton Typesall in one machine
Built for Industrial-Grade Reliability & Long Life

Enquire Now Upgrade Your Packaging Process Today!

Fast Delivery Across India
Installation & After-Sales Support
Custom Setup Available Based on Your Carton Size

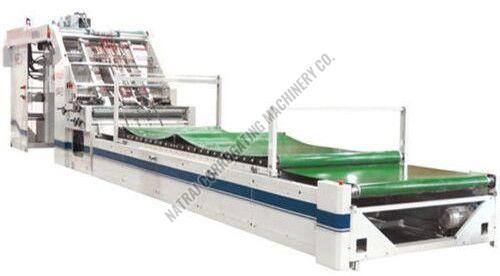

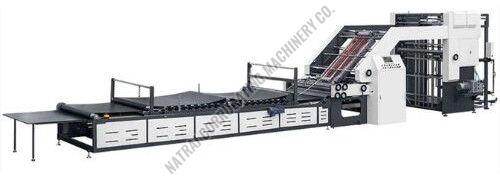

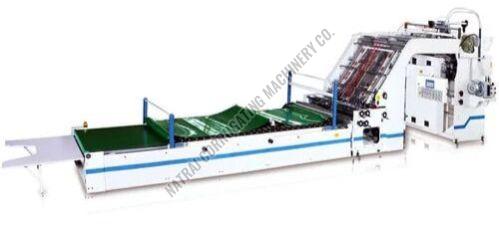

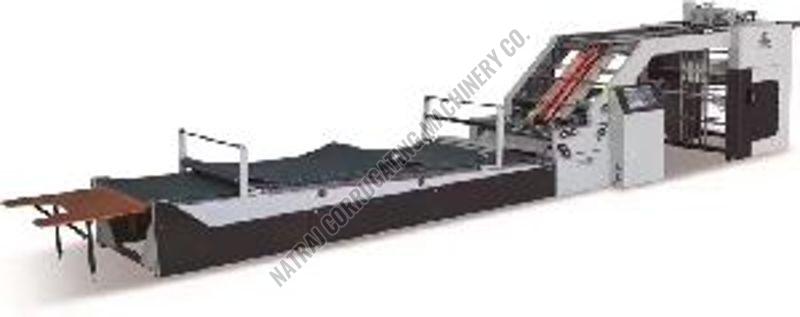

Application:

• Suitable for lamination of:

  • Cardboard to cardboard

  • Cardboard to corrugated paperboard

• Compatible with corrugated flute types: A, B, C, D, E, F, N

Key Features:

• Equipped with internationally renowned electrical and electronic components for reliable performance

• Delta brand touch screen interface for user-friendly operation and control

• Wide adjustment range to accommodate various material sizes and thicknesses

• Simple and intuitive controls for easy operation and quick setup

Benefits:

• Versatile lamination capability across multiple substrates and flute types

• Enhanced operational efficiency with advanced control systems

• Designed for high precision, stability, and ease of use in production environments

We are offering semi auto folder gluer.Features:one minute quick order change.easy operation, unnecessary for training.carton gluer min size 240 mmspecificationmax. Size(l + w) x 2mm2800min. Size(l + w) x 2mm340max. Size(w + h) x 2mm1515min. Size(w + h) x 2mm240high of feeder900mmpower4kwweight2300kgsspeed60mmin ---the electric spare parts use siemens and omron, to keeping long life use and running stable.---main motor and glue head import from taiwan, ---use more strong material on the machine, so the weight of machine heavy more 300kg.

We offer semi-auto corrugated box folder gluer.Modelsn- 580bsn-880bsn-1200bmaximum Speed240(mmin)240(mmin)240(mmin)sheet Applicablecard Board Corrugated Papercard Board Corrugated Papercard Board Corrugated Paperpasting Methodpasting By Two Sidepasting By Two Sidepasting By Two Sideautomatic Countingrandomly Choose Qty 0-9999 Pcsrandomly Choose Qty 0-9999 Pcsrandomly Choose Qty 0-9999 Pcselectric Power Single Phase220v 3kw220v 3kw220v 3kw max Paper in Size350mm580mm1050mmmin Paper Size70mm90mm180mmmax Finished Products in Size170mm320mm500mmmin Finished Products in Size 30mm40mm80mmlongest Paper500mm800mm1200mmshortest Paper50mm50mm80mmmin Pasting Side6mm6mm10mmoverall Dimension5800x800x1300mm6800x1100x1300mm9000x1500x1600mmweight of Machine2000kg2000kg35000kg featuresthere are Four Functions for the Casting Constructionoperation and Adjustment are Characterized By Fasting Speed.high-speed Production, Sound Stability (it is Not Easy to Produce Waste Products)the Machine is Difficult to Become Deformedthe Machine is Characterized By Less Troubles, Lower Noise and Long Services Life

We are offering super natraja punching machine, Die Cutting and Creasing Machine. electro magnetic clutch & brake single "dwell" facility, wrap around safety device, centralized lubrication device, two normal chases , 1 make ready plate (ms), delivery feeding table, automatic impression counter &a set of service tools.

Features:

Nagpal Semi automatic pressing type gluing machine, in recent years, small and medium-sized orders, according to user needs of heterosexual carton, carton production of the latest research and development of new environmental protection equipment.

Its small size to cover an area of little, operation is simple and does not require experience, very suitable for small batch production and varieties of replacement; wide application scope, ordinary cardboard boxes, special-shaped box sheet forming adhesive, double carton and earth covered carton;

Save the glue, the glue quantity is only equivalent to manual gluing 1 / 3; artificial equipment, a maximum speed of 56 M / min, efficiency is the manual operation of the 3-4 times;

Bonding firm, clean overflow of glue, patents are polished to remove UV optical coating, or coating plastic layer, improve the glue stick relay, lifting the carton plant in some seasonal carton easy open problem.

This machine adopts manual folding, improves the efficiency and is suitable for automatic processing of the indentation is not good, special and the paper surface with fenestration products.

The structure of this machine : the machine, paper feeding table, a conveying device, grinding device, coating device, conveying device, in the middle of the pressing device, the electrical control device.

Reliable, High-Quality Stitching for Corrugated Box Manufacturers

\n\n Product Overview:\n

We are recognized among the leading Manufacturers, Suppliers, and Exporters of Semi-Automatic Box Stitching Machines in India and abroad. Built for durability, precision, and ease of use, our machines are ideal for medium- to high-volume corrugated box production.

\n

Before delivery, each unit undergoes strict quality checks to ensure excellent performance, long service life, and user satisfaction.

\n\n Key Features:\n

\n
• \n

  High-Quality Stitching Output
  Produces neat, secure staples that enhance box strength and stacking capability.

  \n
\n
• \n

  Semi-Automatic Operation
  Offers a perfect balance between manual control and automation, improving productivity without the complexity of a fully automatic system.

  \n
\n
• \n

  Customizable Specifications
  Machines can be provided in various sizes and configurations to meet client-specific needs.

  \n
\n
• \n

  User-Friendly Design
  Simple setup and operation with low maintenance requirements.

  \n
\n
• \n

  Robust Construction
  Built with superior-grade materials for long-term durability and stable performance.

  \n
\n

\n\n Why Choose Us?\n



\n

\n
• \n

  Trusted exporter with a global client base

  \n
\n
• \n

  In-house manufacturing and quality control

  \n
\n
• \n

  Tailored solutions to suit various box types and production needs

  \n
\n
• \n

  Cost-effective pricing without compromising on quality

  \n
\n

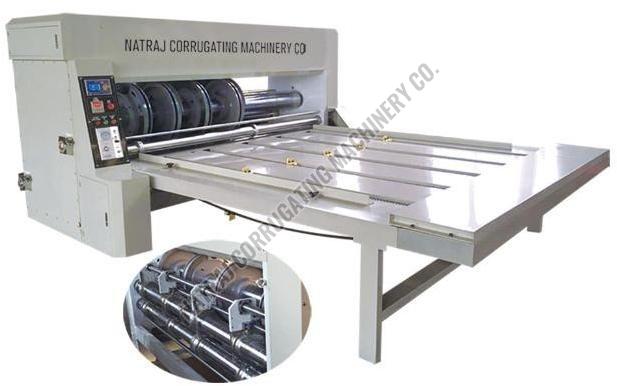

Precision Slotting & Creasing for Corrugated Box Production

\n\n Product Overview:\n

We are a trusted Manufacturer, Exporter, and Supplier of Rotary Creaser Slotter Machines based in India, delivering high-performance solutions for corrugated box making. Built for precision, durability, and efficiency, our machine ensures clean and accurate creasing and slotting with minimal waste.

\n\n Key Features:\n

\n
• \n

  Centralized Oil Lubrication System

  \n
  \n
  • \n

    Reduces operational noise

    \n
  \n
  • \n

    Enhances component life by ensuring consistent lubrication

    \n
  \n
  • \n

    Low maintenance and long-term reliability

    \n
  \n
  \n
\n
• \n

  Clean Slotting Performance

  \n
  \n
  • \n

    Produces smooth, flake-free edges, ensuring better box quality and visual appeal

    \n
  \n
  \n
\n
• \n

  High Precision Creasing & Slotting

  \n
  \n
  • \n

    Ideal for corrugated sheets of various thicknesses

    \n
  \n
  • \n

    Supports accurate alignment for sharp, defined creases

    \n
  \n
  \n
\n
• \n

  Heavy-Duty Construction

  \n
  \n
  • \n

    Designed for continuous operation in demanding box plant environments

    \n
  \n
  • \n

    Stable performance even at higher speeds

    \n
  \n
  \n
\n

\n\n Applications:\n

\n
• \n

  Corrugated carton manufacturing

  \n
\n
• \n

  Creasing and slotting of 2-ply, 3-ply, 5-ply, or 7-ply boards

  \n
\n
• \n

  Ideal for producing RSC (Regular Slotted Carton) and custom box styles

  \n
\n

\n\n Why Choose Us?\n



\n

\n
• \n

  In-house manufacturing with strict quality control

  \n
\n
• \n

  Proven track record in domestic and international markets

  \n
\n
• \n

  Custom configurations available upon request

  \n
\n
• \n

  Reliable post-sales support and competitive pricing

  \n
\n

We are offering corrugating roller refluting.India's first only company in collabration with china to start refluting in india for all 3/5/7 ply automatic paper corrugating machine imported from china and taiwan , with hard chrome plating process.

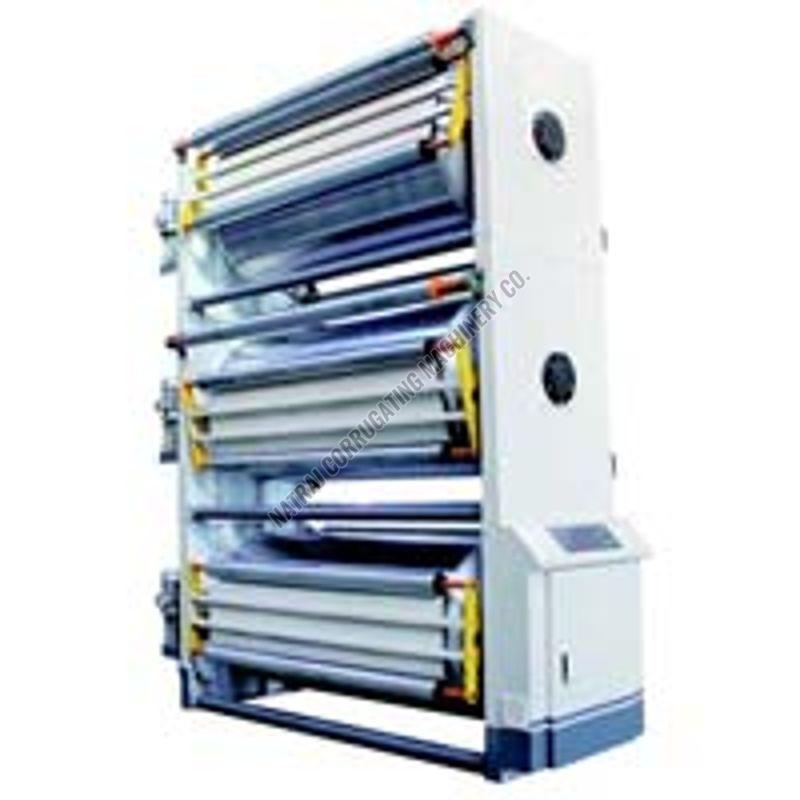

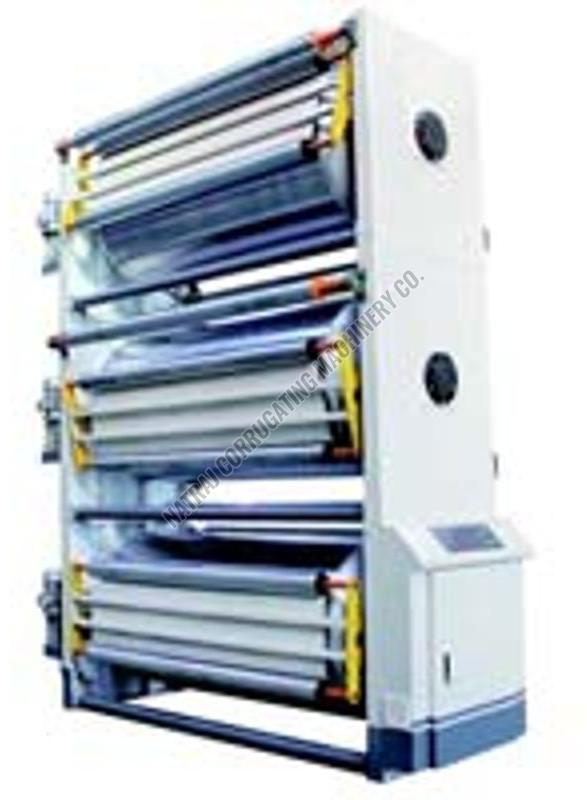

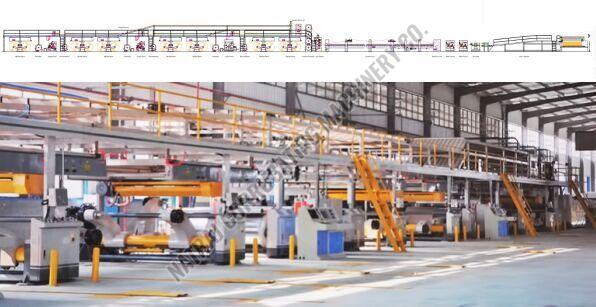

We are offering rnn-357 ply corrugated plant.1. Design speed: 150mmin2. Economic speed: 120mmin3. Expiry width: 1600mm4. Length of production line: (base on the groundsill drawing)note:the paper which test the speed of production line according to the request, as follows*reelpaper grade not less than b.*the moisture rate of reel paper: 11%1%*face paper: 140-180gm2*liner paper: 90-127gm2*corrugated paper: 90-127gm25. Flute: b.c optional (as per the clients request)6. Voltage and current frequency: 380v, 50hz three-phase four-wire system7. Equipment direction: left or right transmission will be according to clients request. note: customers self-provided part1. Compressed air pipeline and glue liquid pipeline2. Power supply, the wire link to operate box and circuitry pipeline3. Water source, water feeding pipeline and barrel.4. Groundsill plane installation project for water, electricity and air5. The material of paper, corn starch, caustic soda for industry and borax etc.6. The engine oil, lubrication, hydraulic oil, grease and high temperature lubricating grease for equipment.7. The food, hotel for technicians of installation and test. And provide the erectors to assist in installation.8. Steam boiler: 4th, pressure 1.25map

• 320C Design Speed: 150 m/min 360C Design Speed: 180 m/min
• Effective width: 1400 mm- 2200 mm
• Corrugated roller : 320 mm / 360 mm
• Drive reducer box with oil immersed type lubricating to reduce noise keeps running stable. Adopt gimbal transmission. Separate power. (optional)
• corrugated roller, the pressure roller and glue roller by pneumatic adjustment.
• Cardboard transmit adopt vacuum suction method with wind control system. Keep flute profiles stable of the lower roller in the condition of running up.
• Bearing of the corrugated and pressure roller to adopt high temperature lubricate grease.
• Glue parts auto supply glue circularly.

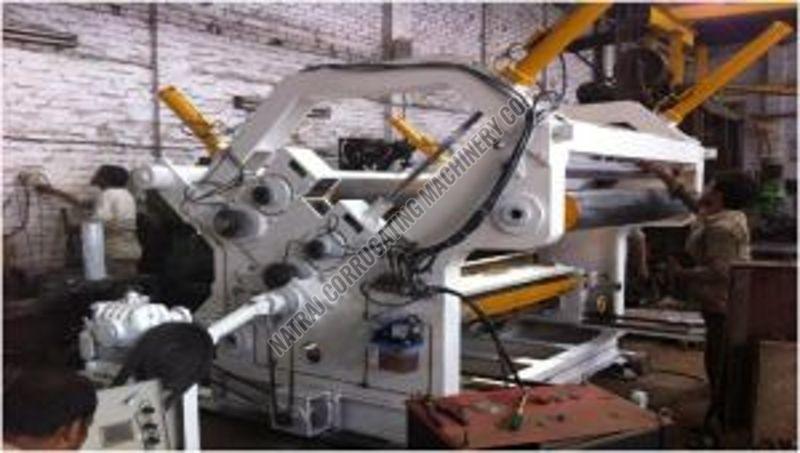

• The upper lower corrugating roller is made of 48 CrMo high-quality alloy steel after heat treatment. The hardness HV1200 the surface be grinded.
• The glue part surface is treated by special mesh snicked and chrome plated.
• Motorized or manual glue width dividing to match the proper width.
• Glue part can be running independently or non independently while stopped

Features

rn

rn
• rn

  One-minute quick order change

  rn
rn
• rn

  Easy operation no training required

  rn
rn
• rn

  Minimum carton gluer size: 240 mm

  rn
rn

rn

Specifications

rnrn

Remarks (Compared to Old Model)

rn

rn

rn
• rn

  Increased Max. Size: Upgraded from 2460 mm to 2800 mm

  rn
rn
• rn

  Electrical Components: Upgraded to Siemens and Omron for extended durability and stable operation

  rn
rn
• rn

  Imported Components: Main motor and glue head imported from Taiwan

  rn
rn
• rn

  Reinforced Structure: Uses stronger materials, increasing machine weight by 300 kg

  rn
rn

The Single Facer is the core unit in a corrugated board production line. It directly determines the flute quality, bonding strength, and overall board precision. Our Vacuum Suction Type Single Facer offers high-speed performance with excellent forming accuracy, making it ideal for 3/5/7 ply corrugated board plants.

rnrn Key Characteristics:rn

rn
1. rn

   Vacuum Suction Type Design
   Ensures precise paper adhesion and perfect flute formation, even at high speeds.

   rn
rn
2. rn

   High-Quality Corrugating Rolls
   Made from 48CrMo alloy steel, hardened with medium-frequency induction and chrome-plated
   Surface hardness: HRC 5560, offering long wear life and stable performance

   rn
rn
3. rn

   Pneumatic Glue Roll Lifting
   Easy and fast operation for cleaning and maintenance

   rn
rn
4. rn

   Durable Roll Surfaces
   All preheating rolls, pressure rolls, and dancing rolls are chrome-plated and ground for smooth operation and long-term reliability

   rn
rn
5. rn

   Pressure Roll Treatment
   Medium-frequency quenched and chrome-plated to ensure wear resistance and precise pressure control

   rn
rn
6. rn

   Thermal & Pressure Standards
   All heating components meet national pressure vessel standards
   Working steam pressure: 1.1 MPa

   rn
rn
7. rn

   High-Temperature Grease Lubrication
   Ensures long service life of bearings under continuous high-heat operation

   rn
rn

rn Technical Specification:rn

rn
• rn

  Effective Working Width: 1400 mm

  rn
rn
• rn

  Suitable Flutes: B, C, or optional A/E

  rn
rn
• rn

  Steam Pressure: Up to 1.1 MPa (as per safety standard)

  rn
rn
• rn

  Drive Type: Independent motor or line-shaft compatible (configurable)

  rn
rn

rnrn Applications:rn

rn

rn
• rn

  Used in 3-ply, 5-ply, or 7-ply corrugated board production lines

  rn
rn
• rn

  Ideal for producing high-precision corrugated sheets for packaging industries

  rn
rn

We are offering sheet cutting machine. rotary reel to sheet cutter as well as 2 ply board cutter fitted with p.i.v. Gear box ratio 1:5 consisting of imported chain and auto tensioning device, with variable speed attachment with eddy current coupling and a.c.drive motor & master control for synchronizing the speed of sheet cutter & corrugation machine.
