Electric 100-1000kg Mobile Concrete Batching Plant Retailer in Mahesana Gujarat India

Electric 100-1000kg Mobile Concrete Batching Plant, Certification : ISO 9001:2008

Sold By : Shitla Road Equipments

Product Specifications

Automatic GradeAutomatic
Driven TypeElectric
CertificationISO 9001:2008
Power1-3kw
Total Carbohydrate1year
Availability100-1000kg
Country of Origin110V
Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

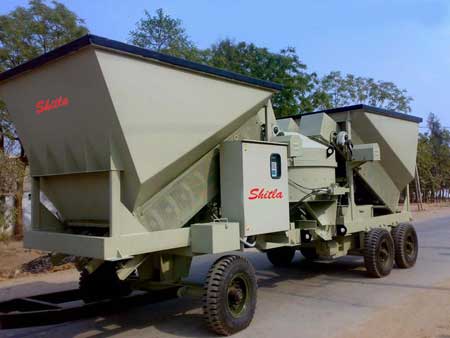

We are engaged in Manufacturing and Supplying of Mobile Concrete Batching Plant that produces concrete in different capacities from 12m3/hr to 20m3/hr and is highly used in construction industry. As a renowned Concrete Batch Plant Exporter, we cater to the demands of clients across the world. Our range of Mobile Concrete Batching Plant is manufactured in compliance with international standards. Buy Concrete Batching Plant in different specifications from us at competitive rates. Being a reliable Mobile Concrete Batching Plant Manufacturer, we provide top quality batching plants that are easy to install and require minimum maintenance. These Mobile Concrete Batching Plants are automatically operated and are widely used for construction of canals, bridges, roads, dams, etc.

Features

Automatic operation
High performance
Low maintenance cost
Dimensionally accurate
Longer service life
Useful for site work like
- Bridges
- Dams
- Concrete Roads
- Canals
- Other Civil Works
Easy to install Mobile Plant with necessary storage & mixing facilities
Installed within 8 hours
Sand & Aggregate Feeding through Front End Excavator or Loader
No Foundation Required
Cement Silo with Screw Conveyor & Platform Provided
P L C Based Fully Automatic Functional Panel
Electronic Weighing of Raw Material
Mixed Concrete discharge by Load Out Conveyor
Accommodates 5 different Mix Recipes & up to 99 cycle continuation

Used For Weighing

Fly ash
Additives
Boom scrappers
Cement

Specificcations

Particulars	SRE-15	SRE-20	SRE-25
Output Capacity	15 M3/Hr	20 M3 / Hr	25 M3 / Hr
Mixer	Turbo Pan Type Mixer	Turbo Pan Type Mixer	Turbo Pan Type Mixer
Mixer Motor	25 HP	30 HP	35 HP
Mixing Arrangement	Spring Backed Arm	Spring Backed Arm	Spring Backed Arm
Sand + Agg. Hopers	4 No	4 No	4 No
Each Hopper Capacity	2 M3	2.5 M3	3.5 M3
Cement Silo Capacity	30 Bag	40 Bag	50 Bag
Weight Approx	8 Mt	11 Mt	12 Mt
Operation	Fully Automatic	Fully Automatic	Fully Automatic
Connected Power	50 HP	60 HP	65 HP
No of Tyre	4 No	6 No	6 No

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Retailer Of Bitumen Sprayer, Water Tank, Four Bin Feeder, Asphalt Mechanical Paver Finisher, Asphalt Batch Mix Plant, DM - 50 Stationary Asphalt Drum Mix Plant, DM - 45 Stationary Asphalt Drum Mix Plant, DM - 35 Stationary Asphalt Drum Mix Plant, Ldo Storage Tank, Control Panel Board, Asphalt Boiler, Bitumen Pressure, Asphalt Storage Tank, Vibrating Screen, Load Out Conveyor.
