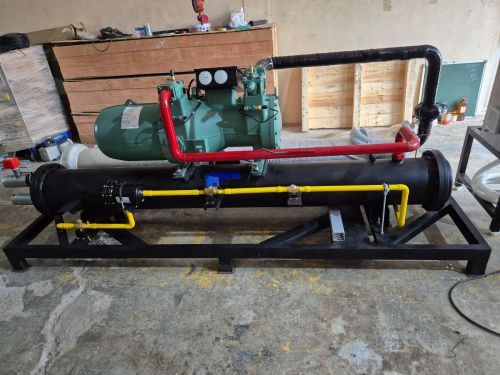

60 TR Water Cooled Scroll Chiller - Mild Steel Construction

Technical Specification Sr.No. Parameter Details 1 Model FMWCS-60-407 2 Cooling Capacity 210KW / 60 TR 3 Power Supply 400V-50Hz 4 Refrigerant R407C/R22 5 Refrigerant Control Thermostatic Expansion 6 Evaporating SST 3°C 7 Condensing SDT 35°C 8 Working Temperature Range -20 TO +10 9 Chilled Flow Of Water 25000 LPH , ΔT 5°C 10 Condenser Water Flow 30 M3/hr 11 Compressor Types Screw 12 Compressor power 46 KW 13 Start mode Star – Delta 14 Capacity control 0,25,50,75,100 %15 Evaporator Types Shell And Tube PLOT-74, SHREE KHODIYAR PARK ,SHAAT HANUMAN TEMPLE, RUDA TRANSPORT NAGAR , KUVADVA HIGHWAY, RAJKOT (GUJ) INDIA. Cell +919924172504 Email : chillers@ Cell +917211100451 16 Evaporator pipe connection 3” 17 Evaporator Shell MOC MS. Powder Coted 18 Evaporator Tube Copper (IGT) 19 Condenser types Shell and tube 20 Condenser Pipe Connection 3” 21 Condenser Shell Moc MS. Powder Coted 22 Condenser tube Copper (IGT) 23 Safety Protection Inner Thermostat for compressor motor, unit overload relay, high and low pressure switch , reverse phase protection relay, discharge gas thermostat, flow switch , Antic Freeze protection 24 Electric control panel HMI, PLC, protection relay, contactor, MCB, preventer, pressure transmeter, timer. 24 Dimension(length/width/height) 2750/780/1650 mm 25 Running weight 1800 kg
