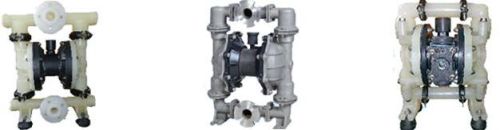

Aodd Pumps

ApplicationsSolvents, Acids, Caustics, High viscous Liquids, Abrasive Media, Hazardous & Flammable Liquids
Available InInvestment Cast CF 8M(SS-316), Aluminum, Polypropylene(PP), Polyvinaylidene(PVDF)
FeaturesNo electrical motor required - non sparking, No mechanical seal or gland packing, The pumps can run dry indefinitely without damage, Safe-priming from a dry start, Gentle non-shearing action, Quick assembly and dis-assembly
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

AODD-150 SBP

Max Flow Rate : 40 LPM
Part Size :
In let :12.70mm(1/2" BSP)
Discharge : 12.70mm(1/2" BSP)
Air Inlet : 6.85mm(1/4" BSP)
Air Exhaust : 12.70mm(1/2"BSP)
Suction List :
Dry : 1.45(4.75') Wet : 2.83m(9.28')
Teflon :
Dry : 0.50m(1.64')
Wet : 0.90m(2.95')
Max Particle Size(Dia) : 2mm(0.078")

AODD-300 SBP

Max Flow Rate : 135 LPM
Part Size :
In let :25.40mm(1" BSP)
Discharge : 25.40mm(1" BSP)
Air Inlet : 12.70mm(1/2" BSP)
Suction List :
Dry : 3.05(10') Wet : 4.89m(16')
Teflon :
Dry : 2.14m(7')
Wet : 3.98m(13')
Max Particle Size(Dia) : 217mm(0.0125")

AODD-400 SBP

Max Flow Rate : 270 LPM
Part Size :
In let :38.10mm(1 1/2" BSP)
Discharge : 38.10mm(1 1/2" BSP)
Air Inlet : 9.64mm(3/8" BSP)
Air Exhaust : 12.70mm(1/2"BSP)
Suction List :
Dry : 4.57m(15') Wet : 7.62m(25')
Teflon :
Dry : 3.05m(10')
Wet : 6.09m(20')
Max Particle Size(Dia) : 4.76mm(0.188")

AODD-500 SBP

Max Flow Rate : 586 LPM
Part Size :
In let :50.80mm(2" BSP)
Discharge : 50.80mm(2" BSP)
Air Inlet : 12.70mm(1/2" BSP)
Air Exhaust : 12.70mm(3/4"BSP)
Suction List :
Dry : 4.57(15') Wet : 7.60m(25')
Teflon :
Dry : 3.05m(10')
Wet : 6.09m(20')
Max Particle Size(Dia) : 6.35mm(0.250")
