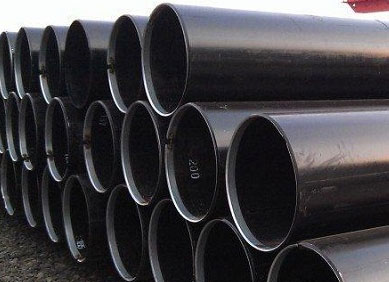

API 5L X70 PSL 2 Line Pipes

Sold By : Chemtech Alloys Pvt. Ltd.

Product Specifications

FinishingPolished
ShapeRound
ApplicationConstruction
FeatureFine Finishing, Excellent Quality, High Strength
Outer Diameter48mm-610mm
ConditionNew
Supply TypeManufacturer, Exporter

Preferred Buyer From : All over the world

Product Overview

To prevent any kind of mechanical and chemical damages, we wrap our products in superior-grade packaging materials that are waterproof as well. Additionally, we print product information on it as well. Our well-maintained and capacious warehouse helps us in managing systematically arrangement of goods and meeting massive requirements of the clients at a time.

Details :

Unless otherwise agreed, the sum of th niobium & vanadum concentrations shall be = 0.06%
Unless otherwise agreed, 0.50% maximum for copper, 0.30% maximum for nickel, 0.30% maximum for chromium, & 0.15% maximum for molybdenum.
The sum of th niobium & vanadum & titanium concentrations shall be =0.15%
Unless otherwise agreed, 0.50% maximum for copper, 0.30% maximum for nickel, 0.30% maximum for chromium, & 0.15% maximum for molybdenum.
Unless otherwise agreed g unless otheriwse agreed the sum of th niobium & vanadum & titanium concentrations shall be =0.15%

Technical Specifications 01

Chemical Composition
Mass fraction, based upon heat and product analysis % maximum										Carbon Equivalent A
										% Maximum
Cb		Si	Mnb	P	S	V	Nb	Ti	Other	CEIIW	CEPcm
Seamless & Welded Pipes
L485Q or X70Q	0.18f	0.45f	1.8f	0.025	0.015	g	g	g	h	0.43	0.25
Welded Pipe
L485M OR X70M	0.12f	0.45f	1.7f	0.025	0.015	g	g	g	h	0.43f	0.25

Technical Specifications 02

Mechanical Requirements
Y.S	T.S	Elongation
Mpa(psi)	Mpa(psi)	Elongation
min	min	min
485(70 300)	635(92 100)	f

Impact Test

AVG. ABSORBED ENERGY	IND. ABSORBED ENERGY
Min.(joules)	Min.(joules)
27	20

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry
