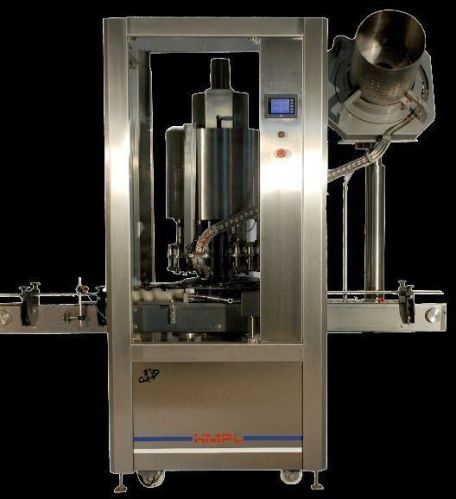

Automatic Bottle Cap Sealing Machine

Dimensions2100 mm (L)x 950mm (W)x 2000mm(H) Approx.
ModelHMPL–PRE–RBS
650 Kg Approx.
30 to 150 Products/Minute
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

30 to 150 Products/Minute
Air SupplyN.A.
Working Height
Product Size15 mm Ø to 90mm Ø
Net Weight
850mm ± 50 mm Adjustable.
Sealing Head1/ 4 / 6 / 8 Head
Cap Size
Power Consumption2.5 KVA
Dimensions2100 mm (L)x 950mm (W)x 2000mm(H) Approx.
ModelHMPL–PRE–RBS
Power Supply
Output speed
3 Phase + Neutral + Earthing /415 V /50Hz
650 Kg Approx.
22 mm to 28 mm Cap (with the help of change part)

The mechanical driven system of the whole machine is through flange mounted motor and gear box. There is no usage of V belt, pulley. This ensures less breakages and thereby easy maintenance and high trouble free production output.The complete synchronized mechanism is designed on spur gears instead of chains and chain wheel. This feature avoids time for machine setting frequently.No products and no caps are detected by the sensors and give the alarm alert and machine stop itself.
