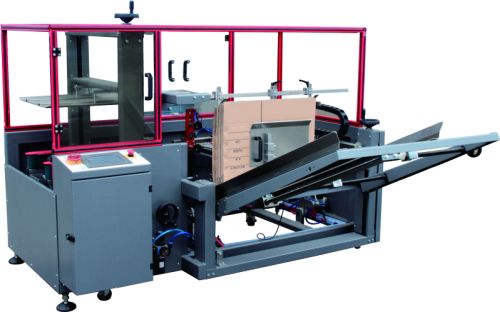

SPEED PACK Motor driven Automatic Case Erector, Condition : Penumatic

Spk-01 shanghai speed carton erector is mainly used to open cartons, and sealing the bottom, which can operate alone and also can be equipped into production line.it is especially applied to continuously open cartons in different sizes, which is used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine ,chemical industries . Automatically opening carton,flap the bottom cap and tape the bottom. Automatic case erector is large quantities of automatic opening carton, automatic folding bottom cap, automatic sealing tape line equipment, this machine using plc + screen control, greatly facilitate the operation, reduce production and labor intensity, is essential for automated mass production equipment.easy to operate,reduce packaging costs.
Technical parameters
model:spk-01
forming and sealing speed:8-10ctnsmin
carton storage quantity:100pcs (1000mm)
carton size；l200-450×w150-400×h100-350mm
power supply:220380v, single phase,5060hz, or specified by client.
Pneumatic:5-6kgcm2 150nl min
tape width:48-75mm (alternative use)
height of table:610-650mm
machine size:l2300×w2000×h1450mm
machine weight:600kg
