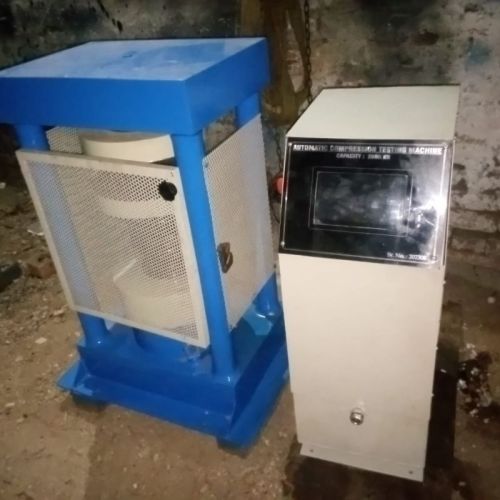

Ale Color Coated Automatic Compression Testing Machine for Industrial

•      Large key catching display - 7” touch Screen operation

•      Capacity 100 KN - 3000 Kn

•      Load Least Count 0.1 kN

•      Spherical seating arrangement on upper platen for self-centering to apply load in equal proportion on the sample

•      Type of pumping: Reciprocating Pump servo motor controlled for precise load

•      Automatic Release the load after performed the Test through Software.

•      accuracy of ± 1%

•      Pace rate controlled through dedicated software from 0.5 kn/s to20 kn/s.

•              Facility to access data through USB

•               Load v/s Time graph generating automatic on Touch Display directly

•               Automatic report generation after test, hue storage capacity of 10000 logs

•               Facility to insert different shapes and area in the Touch screen  controller to calculate direct reading in KN

•               Comes with Flexural & Aggregate testing mode

•      4 Pillar Type Heavy Duty Load Frame.

•      Platen with hardness is 55 HRC and flatness tolerance 0.03 mm, 305 mm Gap between Platens.

•      Max. pressure valve to avoid machine overloading·

•      Piston  travel limit switch, Travel limit 50 mm·

•      Emergency stop button.

•      And Door Close Safety Switch

4 Pillar Type Heavy Duty Load Frame having a top cross head, base  with precision ground hydraulic piston fixed to the base

Heavy duty spherical seating arrangement allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.

Hardened, ground & polished platens. Heavy duty upper platen with oil filled ball seating arrangement for high stability.
