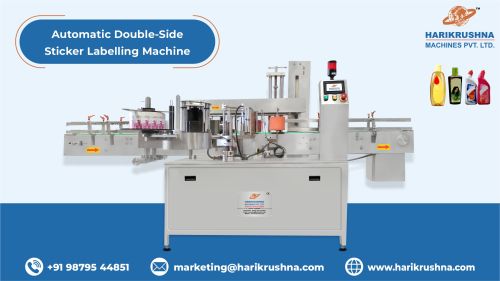

Automatic Double Side Sticker Labelling Machine

Key Features

• tures
• Features of PLC System With HMI
• Technical Data

• The machine is manufactured or developed accordance with GMP standards.
• Structure made of SS 304
• All moving parts of the machine covered by safety guards of SS
• All expose parts of MS are powder coated / electro less nickel plated.
• Conveying system to convey the product with easy adjustable side guide
• Conveying system equipped with imported AC frequency variable drive for variable speed with constant torque
• Unique in-feed screw to ensure uniform distance between two products
• Top Conveyor to holding product at the time of labelling
• Machine suitable for product like Round / Rectangular / Flat / Oval /Square
• Imported AC frequency variable drive for variable speed with constant torque
• Specially designed drive mechanism for Label Release
• Dispensing Unit to dispense labels
• Various label position adjustment with the help of sliding pipe assembly
• Label affixing on the product with the help of nylon brush and sponge roller
• All moving parts of the machine covered by safety guards of SS
• Reel mechanism (Size: 305 mm) to hang the roll with core ID of 76 mm (3″)
• Label release mechanism
• Break assembly to avoid variation during releasing of roll
• Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC Drives, Delta make PLC & HMI (keypad), MCB & relay “CE” certified.

Feature Of PLC System With HMI

• No Product No Labelling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made compact design & user friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI function like Product Delay & Pre dispensing Length For makes easy machine setting.
• Label dispensing speed can set digital by using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type, or size press REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• Total counter facility is available with password protected reset button.
• PPM (Product per machine) facility is available.
• HMI with keypad for operating.
• Capacity to speed control AC drive from HMI.
• Multiple program facility.
• Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in compact design & easy serviceable/Removable.
