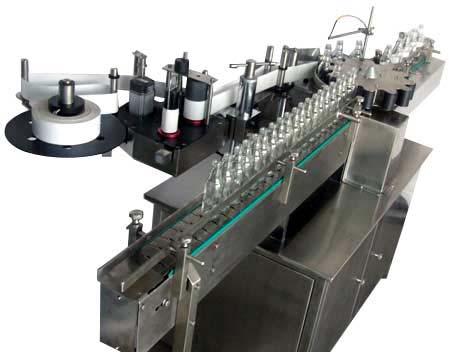

Automatic Sticker Labelling Machine

Description
we are one of the leading manufacturers and suppliers of semi-auto gum labeling machines. Our clients can avail from us, a wide range of automatic sticker labeling machines that are widely used in pharmaceutical & chemical industry and bulk drugs manufacturing
application
machine is suitable for labelling on round bottles, jars, tins, cans, containers and other round objects. It is capable of labelling up to 40 units per minute depending on products and label size
features
labelling capacity : 80 to 100 bott. min (depending upon size of bottles )
s.s. Gmp model.
stepper motor : 60 kg.cm2 –
programmable mmi unit. – standard - our own programming.
Imported sensor for label & container. ( banner make )
ac frequency drive for conveyor & pressing device. ( dealta make allen bradly make )
gear box & motors are imported. ( bonfigliolli make )
total synchronised with stepper motor and ac motors with single speed variator port.
In-built speed indicator & counter.
Pressing unit for round container labelling.
No change parts required.
No bottle no labelling system.
Specification
labelling capacity 80 to 100 bott. min
stepper motor 60 kg.cm2
power 230 volts. ( single phase ) ac 50 hz.
Machine dimensions 1828 mm (l) x 610 mm (w) x1200 mm (h)
case dimensions 2030 mm (l) x 760 mm (w) x 1325 mm (h)
label height 10 mm to 160 mm
label length 12 mm to unlimited.
Gap between two lables minimum 5 mm.
Label roll dia 300 mm maximum.
Label core dia 75 mm.
Material used s.s. – 304.
Conveyor belt s.s. – 304 - 6 feet
