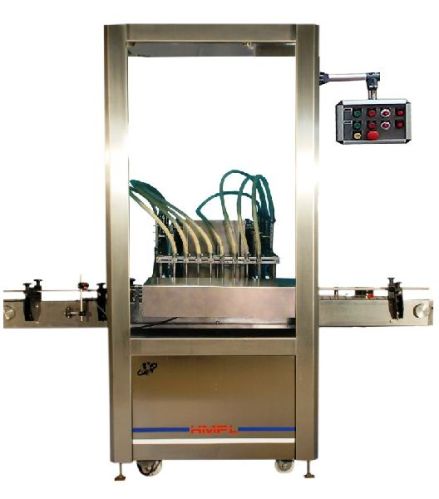

Automatic Volumetric Liquid Filling Machine

Power SupplyThree Phase / 415V AC / 50 Hz
Height of Conveyor850 ± 50 mm Adjustable
Bottle size (Ø)15mm Ø to 70mm Ø
Fill Size30 ml to 240 ml Round PET Bottles
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Fill Size30 ml to 240 ml Round PET Bottles
Net Weight Approx.600 Kg
ModelHMPL-VLF
Power SupplyThree Phase / 415V AC / 50 Hz
Filling Volume30 to 200 ML
Output speed30 to 120 Bottles/Minute
Number of Head/Syringe4 / 6/ 8 / 10 / 12 Nos.
Bottle size (Ø)15mm Ø to 70mm Ø
Height of Conveyor850 ± 50 mm Adjustable
Air Supply4 to 6 Kg/Cm² (pneumatic operated stopper)
Direction of MovementLeft to Right
Dimensions Approx.2135 mm (L)x 1150mm (W)x 1610mm(H)

The unit is made compact & versatile as per GMP norms,Rigid vibration free construction for trouble free performance,All interlock must be shown on control panel,Elegant and easy control panel for total control on operation,Self-lubricating UHMW-PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying,Synchronized two nos. AC drives for main motor & conveyor belt,Inbuilt protection against over current, voltage fluctuation, short circuit in AC frequency drive.
