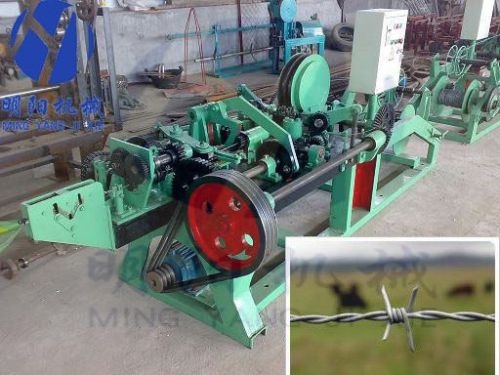

Barbed Wire Machine

We are offering barbed wire machine.
Barbed wire mesh machine:
it is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality with compact structure, small volume, easy operation and regulation, convenient maintenance and low power consumption, which is suitable for producing all kinds of barbed wires. The material can be galvanized wire, pvc coated iron wire. The products are most used in highway, railway, grassland parapet and other places.
types of the machines:
cs-a double twisted barbed wire machine.
cs-b straight and reverse twist barbed wire machine
cs-c single twisted barbed wire machine
csa double twisted barbed wire machine
motor 3kw
weight 1500kg
overall dimension 1900mm×1300mm×980mm
wire collection part size 1800×750mm×750mm
barb pitch spacing 76mm 102mm
number of twists 3/4
barbed wire diameter 1.7-2.6mm
strand wire diameter 2.0-3.0mm
csb barbed wire machine for two-strand wire with two way twists
motor 2.2kw
weight 1200kg
overall dimension 3000mm×1000mm×1200mm
wire collection part size 1300×800mm×700mm
barb pitch spacing 76mm 102mm
number of twists 4 or 6
barbed wire diameter 1.6-2.3mm
strand wire diameter 1.6-2.8mm
