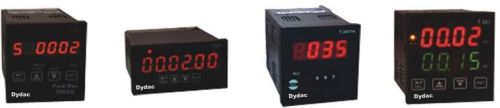

Fully Automatic Electronic Digital Counter Retailer in Delhi India

Fully Automatic Electronic Digital Counter, For Industrial, Feature : Easy To Use

Sold By : Dydac Controls

Product Specifications

Frequency66Hz
Automatic GradeFully Automatic
Puncture Voltage11000V, 220V, 25000V, 33000V, 440V, 5000V
Power SourceElectric
ApplicationIndustrial
FeatureEasy To Use
Total Carbohydrate1year
Operating CurrentDouble Phase
Number Of FlowerElectronic Counter
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer

Preferred Buyer From : All over the world

Product Overview

Made from the qualitative basic materials and cutting edge technology, our Electronic Digital Counters always remain high in demand. We are prominent Manufacturer, Exporter and Supplier of Electronic Digital Counter based in Delhi, India. Our offered Electronic Digital Counters are also available in different specifications, at the most reasonable prices. With us stay assured for timely deliveries.

Details

Digit	4,6 Digit, Dual Display
Display	3-½ Digit, 7 Segment .56" Height; Red/Green L.E.D.
No. of Stages	1, 2 Stage
Count Setting By	Front Keyboard
Reset	By Switch Provided on Front Panel (Pulse Width 1µ Sec.(Min.)
Sensor Supply	DC 12V ± 10% 50mA max. (Ripple 5% Max.)
Input Signal System	Contact, Opto Coupler, Proximity Switch, Limit Switch, High/Low Voltage
Input Signal Scaler	Signal can be multiplied or divided through software
Max. Counting Speed	5 KHz
Resolution	1 Count
Relay Contact	10 Amp. Max. at 230V AC (Non Inductive)
Count Mode (output)	Programmable (optional)
Backup Power for Memory	10 Years (Semi-permanent)
Count Mode (input)	Up Counting/Down Counting or Both (optional)
Power Supply	180 - 230V AC ± 10% 60/50Hz
Ambient Temp. / Humidity	0 - 50^oC, 35-85% RH.
Dimensions	48×96, 72x72, 96 ×96
