BTU 200 Insertion Ultrasonic Flow Meter for Industrial Water Systems

BTU 200 – BTU Metering System

(Clamp-On / Insertion Ultrasonic Flow Meter Based)

Features

• Highly accurate and reliable metering system
• Flow meters calibrated at in-house NABL Accredited Flow Calibration Facility
• Precise temperature measurement using high-performance temperature sensors
• Network-compatible communication protocols
• Multiple engineering units available for displaying measured parameters
• User-friendly interface with display and keypad
• Simple installation and commissioning
• Data storage and log view facility

  Description

Electronet Series BTU 200 is a high-precision BTU metering system designed for measuring thermal energy flow and energy consumption in water-based systems.
It is ideal for industrial, commercial, and domestic applications, offering accurate flow measurement using either Clamp-On Ultrasonic Flow Meter or Insertion Type Ultrasonic Flow Meter.

The system includes:

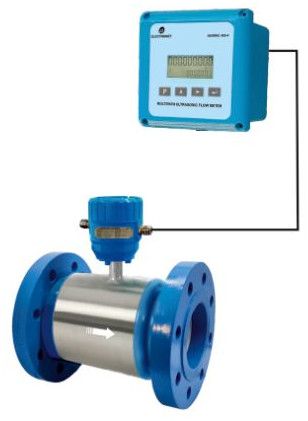

• Ultrasonic Flow Meter (Clamp-On / Insertion)
• Pair of PT-100 Temperature Sensors (inlet & outlet)
• BTU Calculator / Indicator with LCD Display

BTU 200 is a reliable choice for measurement and indication of fluid flow and net thermal energy consumption.

  Applications

Suitable for Chilled & Hot Water Systems in:

• Industrial water systems
• Domestic & commercial complexes
• Office buildings
• Central plant monitoring
• Institutional energy cost allocation
• Educational campus monitoring
• Water management systems

  Technical SpecificationsPerformance CharacteristicsPower

• Power Supply: 90–270V AC / 24V DC

Units

• Power Unit: BTU/hr or kW
• Energy Unit: BTU or kW/hr

Display

• Type: LCD display

Accuracy

• Overall Accuracy: ±0.1% of measured value

Inputs

• Flow Meter Input: 4–20 mA DC
• Temperature Input: Set of two PT-100 sensors

End Connection Options

• DIN
• ANSI 150
• BS Standard
• Threaded

Outputs

• Analog Output: 4–20 mA DC
• Digital Output: 2 Nos. Potential-free relay (1 C/O), 1 Amp @ 230V
• Communication Interface: RS-485

Energy Functions

• Heat / Cool
• Selectable display units: W, BTU, Cal, J

Sampling Period

• 1 second

  Environmental Conditions

• Ambient Temperature: Up to 65°C
• Water Temperature: 0 to 180°C
• Enclosure: IP-65 protection class

Mechanical

• Mounting: Panel or Pipe
• Dimensions: 155 mm (H) × 155 mm (W) × 126 mm (D)
