Dongguan Tianjin Carton Pasting Machine

We are offering carton pasting machine
semi-automatic carton pasting machine: it is the equipment used for the final procedure of carton manufacturing, and is mainly used for adhesion of single-sheet corrugated carton board to meet the production demands of several varieties and medium and small batches, it is applicable to such products as food and cotton textile packing requirement, and is fairly ideal carton equipment presently. The machines has such advantages as high production efficiency, low labor intensity, simple operation, stable performance and reliable operation, and is the necessary equipment for packing carton industry.

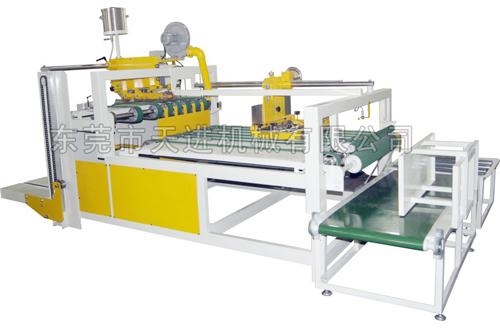

Semi-automatic carton pasting machine tj-ha
details of major parts

1gear reduction unit is gear reduction unit from taiwan.
2taiwan tiande button switch, travel switch, terminal desk

3�taiwan yangming photoelectric switch and counter, taiwan shilin contactor
4conveying belt from taiwan

5pasting head assembly is precisely fabricated with imported material, is wearing-resistant and corrosion-resistant
6�automatic counting for later section, the finished product sheet number (1-99 sheets) can be laminated and conveyed to the end of the conveyer based on the setup quantity and bundling is convenient.
7bower provides auxiliary air drying function, speed up adhesion of the carton and reduce poor products.
8�it only two operators from adhesion of semi-finished product to placing the finished-product, operation is simple and convenient, and it can reduce salary.
9�paper feeding part can achieve automatic counting, it will automatically feed out the paper sheets that has been laminated for bundling, it can reduce the salary for carton counting worker

10it can provide additional bundling function in middle section to effectively prevent scissors clamping for cartons.

applicable scope machinery specification
ma�(l+w)�2 2460mm
power 5hp
min(l+w)�2 340mm
length 4500mm

ma�(l+w)�2 1515mm
width 2100mm

min (l+w)�2 240mm
weight 2000kgs
high of feeder
