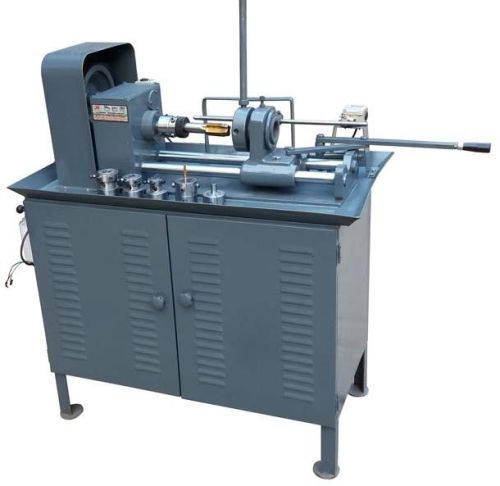

Horizontal Tapping Threading Machine

Electric Automatic Horizontal Tapping Threading Machine, Certification : CE Certified, Voltage : 220V

Listing ID #1485172

Get Latest Price
  • TypeHorizontal
  • CertificationCE Certified
  • Weight100-1000kg
  • Voltage220V
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

J.B. Engineering Works verified-icon
Bawana, Delhi
08048114291
  • Member Since 16 Years
  • Nature of Business Retailer
  • Year of Establishment 1967

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Type Horizontal
  • Certification CE Certified
  • Weight 100-1000kg
  • Voltage 220V
  • Automatic Grade Automatic
  • Power 1-3kw
  • Driven Type Electric
  • Warranty 1 Year

We Introduce ourselves as manufacturers of 'JBEW' Horizontal Tapping Threading Machine. These Machines are suitable for Inside & Outside threading (Go-Not-Go Accuracy) with taps and round split dies respectively. These machines will give good quality & production of your job. These machines run with the help of gear and provided with auto reversing system for the long life of your tools. These machines are easy in operation. Even helper can operate the machine. In all these machine, thread length can be controlled to the desired position & automatically reserved by a built-in stopper. All the shafts hardened, tempered and ground. Tail Stock moves with gun metal bushes on the hard chromed shafts. The machine is fitted on the sheets cabinet and the cast iron base plate. For holding the job traub collets (Type A-25) in its collect fixture. You can cut left & right threading with these machines.
Standard Accessories :

  • 3 Phase electrical motor, Reversing switch, Two Speed pulley, V belt
  • 2 Nos. die holders (1" & 1 1/2), 2 Nos. Top holders, top holder's spanner.


Range :
Tapping-Threading Machines Model (Horizontal)

  • Model TR-20/25 (Capacity 25mm Fine Thread)
  • Model TR-20/40 (Capacity 42mm Fine Thread)
  • Model TR-20/60 (Capacity 60mm Fine Thread)
  • Model TR-20/25 Limit Switch (Capacity 25mm)
  • Model TR-20/40 Limit Switch (Capacity 40mm)
  • Model Tr-20/60 Limit Switch (Capacity 60 mm)


Optional Accessories (At Extra Cost) :

  • Extra
  • Die Holders
  • Top Holders
  • Pulley
  • Thru Chuck Fitting
  • Jig Fixtures for holding diffcult job
  • Coolant Pump
  • Collets
  • Wooden Box
  • Lighting Lamp etc.


Download


Download Detail File : Click Here

Specifications

Model TR-20/25 TR-20/25 (Limit Switch) TR-20/40 TR-20/40 (Limit Switch) TR-20/60 TR-20/60 (Limit Switch)
Capacity 25mm (Fine Thread) 25mm (Fine Thread) 40mm (Fine Thread) 40mm (Fine Thread) 60mm (Fine Thread) 605mm (Fine Thread)
R.P.M 100 to 300 200 to 700 50 to 200 100 to 400 50 to 500 50 to 300
Thread Length 5mm to 125mm 5mm to 125mm 5mm to 150mm 5mm to 150mm Range upto 100mm Range upto 100mm
Driving Motor 1 H.P., 1400 R.P.M. 1 H.P., 1400 R.P.M. 1 H.P., 960 R.P.M. 1 H.P., 960 R.P.M. 2 H.P., 960 R.P.M. 2 H.P., 960 R.P.M.
Collect Fixture A-25 A-25 A-25 or A-42 A-25 or A-42 A-25 or A-60 A-25 or A-60
Length Size L.40"xB.20"xHt.42" L.40"xB.20"xHt.42" L.41"xB.22"xHt.50" L.41"xB.22"xHt.50" L.41"xB.22"xHt.50" L.41"xB.22"xHt.50"
Weigth 150 kg. (Approx) 150 kg. (Approx) 175 kg. (Approx) 175 kg. (Approx) 200kg. (Approx) 200kg. (Approx)
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

We proudly welcome you to the flourishing world of j.b. Engineering works, one of the leading manufacturers and exporters of superlative engineering machines. Reliability, quality and high authenticity are the synonymous of our company. Our consistency and work ethics has helped us to become one of the overriding manufacturers of production machineries. The quality of our machineries always meets the international quality standards, thus they are highly valued in the quality cautious market. With the passage of time, we have achieved a distinct edge in the manufacturing of automatic lathe machine, micro lathe machines etc. We are widely well renowned as the most preeminent tapping threading machine manufacturer and supplier in india. Our highly prestigious entity was incorporated in the year 1967, with an objective to design and develop superior quality machineries. It was incepted by honorable mr. Bhupinder singh, the ceo of the company, who gave a new dimension to the company. Due to his diligent efforts and vast experience in this field, we are able to achieve a reputed name in the international market.
team and management
the basic strength of the company is our highly qualified and experienced team of experts, who consistently works hard to develop superb quality machineries. With the assistance of our talented team, we are able to maintain our high reputation in this domain. They always endeavor to keep themselves abreast and updated with the changing market requirements and needs.
infrastructure
we have robust and sound infrastructural base, which is well equipped with innovative techniques and latest machines, which meet the international quality standards. We have one of the best r & d centers and in house manufacturing units, to ensure the quality of our products.
quality
we are a quality centric company and give topmost priority to the quality of our machines, so that we can satisfy our clients. Genuine quality of our machineries has assisted us to stand in the midst of supreme machineries manufacturers. Stringent quality checks are conducted at various stages, starting from the procurement of the raw materials to the finished product. Each and every machine is tested before dispatching them to our esteemed clients. Reliability, integrity and trustworthy are some of the chief hallmarks of our organization. Our main motto is to optimize client’s satisfaction level, by providing them nonpareil machines. The optimum quality of our machines has helped us to earn a huge list of valuable clients, based in india as well as in other foreign countries. We always endeavor to develop and maintain a long lasting relationship with our valuable clients.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees Below 20
  • Year of Establishment 1967
