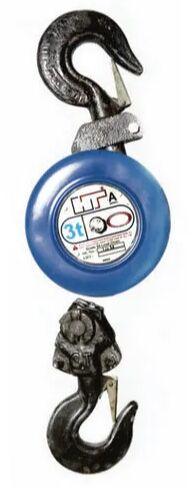

HT Chain Pulley Block

Price:

3,500 / Piece Get Latest Price

Sold By : Honest Traders

Product Specifications

Brand NameHT
Capacity3 ton
Hand Chain Length52 meters
Weight A Three Meter Lift21 Kgs
Number Of Fall1 (GR-80)
Extra weight2.9 Kgs
Pull On Hand Chain13 Kgs
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader

Preferred Buyer From : All over the world

Technical Specifications
Capacity in Metric Tonnes	1	2	3	5	7.5	10	15	20
Number of falls GR-80	1	2	2	2	3	4	6	8
Number of falls GR-30	1	2	2	3	4	5	-	-
Hand chain required to be passed over for lifting load through one Meter... Meters (Appx)	52	104	104	152	228	228	408	528
Pull on hand chain.... kgs.	26	28	43	47	50	57	68	120
Weight a 3 metr lift.... kgs	21	30	36	66	102	144	280	400
Extra weight per additional meter lift.... kgs	2.9	4.3	4.3	5.2	7	14.4	24	33
