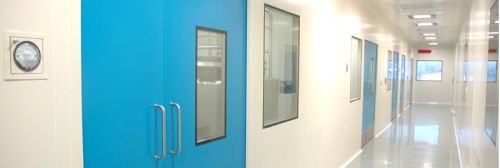

Lennox Clean Room Clean Room Partitions

Lennox Clean Air Technologies Modular Clean Room Systems interface with floors, ceilings, and mechanical components to provide clean room environment with effective control of airflow, pressure, temperature, humidity and filtration. They can be customized to match specific requirements and provide a cost-effective alternative to conventional construction without compromising quality, durability or efficiency. Modular clean rooms also utilize a flexible design that allows for fast, easy installation in a system that can be expanded or relocated as need be

• CGMP certified clean room design
• Full compatibility with chemicals used for cleaning and sanitizing
• Easy clean room installation
• State-of-the-art clean room technology
• Flush surfaces everywhere!
• Scratch-resistant materials
• Easy to modify during wall installation
• Wall system suitable for ISO 5 (class 100) to ISO 8 (Class 100,000)

Modular Clean Room Walls, Panels & Flush Doors

Lennox Clean Air Technologies Modular Wall panels are made out of Double Skin Panels of PPGI (Pre-coated Gl) both sides with 0.6 to 0.8 mm as standard thickness. The wall panels are of 1200 mm as standard width. Panel Thickness varies from 50mm / 60mm / 80mm / 100mm with provision for PVC conduits for Electrical cables and panels of 80mm/100mm are specially designed to carry return Air Ducts / Built in Risers. Panel height can be adjusted to 4000mm with provision for stackable panels.

Lennox Clean Air Technologies Modular Ceiling panels are made up of 50mm / 60mm thickness depending upon the type of application. Ceiling panels are mounted with specially designed suspension members and linkages for every application. Walkable & Non Walkable ceiling panels are made as per client's requirement with specially designed stiffening systems for walkable load bearing ceilings

Polyurethane PUF Foam (CFC Free) with closed content of 90 to 95%.

This foam is injected under high Pressure with Precise Ratio & Proportion to maintain the PUF density between 38 to 42 Kg/m3. OR Bonded Mineral wool or Rockwool insulation of various thicknesses ranging from 50mm to 100mm is sandwiched between the outer & Inner skins and is properly sealed from the exterior by Aluminium or G.I. Profiles.

All the internal & external corners of Modular Wall panel systems are covered with Aluminium covings having special Male & Female profiles with locking system and are fixed from Wall Panel to Floor, Ceiling to Wall panel & Wall to Wall panel. Aluminium covings are powder coated in various colours as per client's requirement
