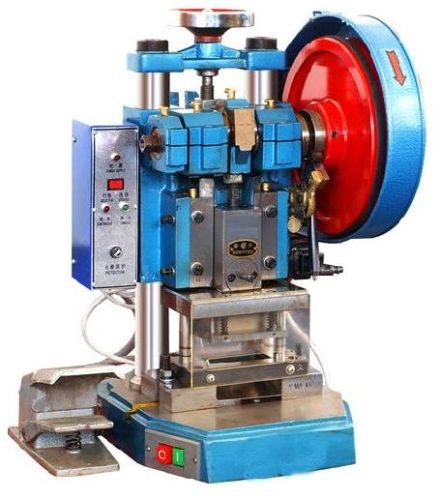

Electric CNJ-D5-1 Punching Machine, Brand Name : sinocard

Product introduction:
cnj-d5-1 punching machine adopts the major driving manner is that the electromotor drives the fly wheel ,through the function of clutch to punch the cards.we use premium materials and highly precise devices to produce this kind of machine. It has the characters of good rigidity,high precision, refined structure,top quality,stable, performance and safe and convenient operation. The speed is fast and the power is strong,the edge of the cards is smoothly cut.the machine is designed with precise automatic punching location holes. It’s the indispensable device for punching pvc cards. You can change the mold according to your demands.
Features :
1. Our mould is good rigidity,high precision
2. Precise automatic punching location holes.
3. Structure is reasonable ,we can make non-standard mould according to customers’request.
Technical specification
specification cnj-d5-1 punching machine
punching size international credit cards standard size（ 85.7×54mm ）
feeding size 105 mm
punching thickness 0.3 mm－1.2mm
punching method electric driven
punching action single
power 220v
power supply 220v　ac 50hz
working power 370w
production speed 1500cardshour
outline dimension 640 mm*450mm *700 mm
gross weight 110kg
wooden package 640mm*460mm*700mm
