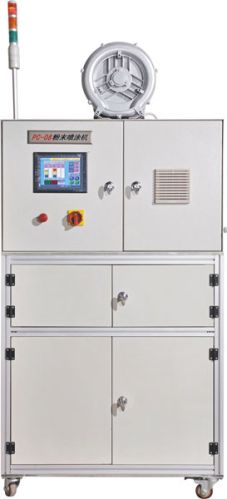

Coating Machine

We are offering coating machine.
this powder coating machine use the static to spray the plastic powder onto the welding line of can body line, then use the heat to melt the powder to form an anti-corrosive film to cover the welding line to protect the welding line from being corroded. This machine adopts the advanced plc and pneumatic components to make the powder to be absorbed and adhered onto the welding line surface more reliably and steadily, and keep higher utilizing rate of the powder, it is the ideal equipment for can welding line coating and coverage.
main feature:
1. The powder coating machine can be combined with any type of welding machines to form a automatic can production line.
2. The powder supply can be controlled automatically, the machine will alarm and stop automatically when powder use up.
3. Powder is available to be vacuum callback and recycled.
4. The highly auti-abraded and anti-static quality material is adopted to the machine, and the static pressure can be controlled automatically.
technical paremeter:
transfer speed: 10-70m/min
production capacity: 80-500can/min
coating width: 8-12mm
applicable can diameter:52 - 280mm
powder material: polyester,epoxies
comperessed air: 0.4mpa,0.5m3/min.
