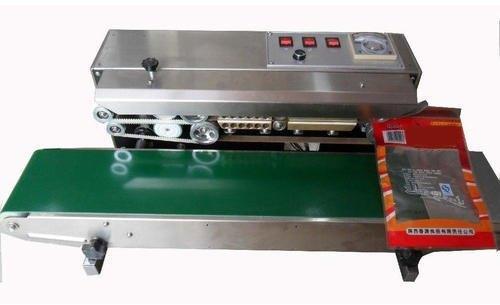

Sepack Continuous Pouch Sealing Machine

₹ 15,700 / Piece

Product Details

Brand NameSepack
Sealing Width12 mm
Power240 V
Automation GradeSemi-Automatic
Speed0 - 12 m/min
FeaturesAdjustable temperature /micro controller models suitable for a wide spectrum of materials,Variable speed conveyor,Vertical /Horizntal mountable models,H-horizontal model
Available conveyor load Capacity3 kg,15 kg,30 kg
I Deal InNew Only
Max. Conveyor Load3 kg
Operational ModeHorizontal

Sl No	Parameter	SCS 3H Smart	SCS 15V Smart without HAM	SCS 30V Smart
1	Conveyor Table Length (Including Work Table)	850mm	850mm	1400mm
2	Conveyer Table width	155mm	200mm	250mm
3	Conveyer belt width	135mm	170mm	220mm
4	Conveyor - Max Load supported	3Kg at a time (1Kg x 3 No's)	15Kg at a time (5Kg x 3 No's)	30Kg at a time (10Kg x 3 No's)
5	Max Conveyor Speed	14 Mtr/min @ 240VAC Input	14 Mtr/min @ 240VAC Input	8 Mtr/min @ 240VAC Input
6	Conveyor - Adjustable Height Range	N/A	N/A	500mm to 1090mm
7	Height Between Conveyor & Sealing Head	107mm to 276mm (with Vertical Kit Only)	205mm to 417mm	150mm to 760mm
8	Motor Details	60W PMDC Motor	90W PMDC Motor	-----

		750W	800W	900W
