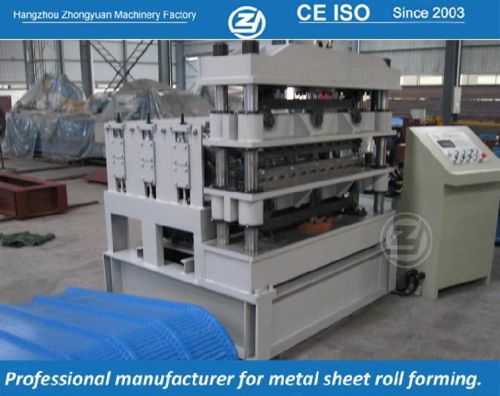

Crimping Machine

Crimping machine
technical data of crimping forming machine
raw material corrugated steel sheet (235-345mpa)
material of roller 45# steel being quenched treatment
material of crimping device cr12 mould steel with quenched treatment, hrc58-60
material of shaft high quality 45# steel with heat treatment.roller grinder milling.
Crimping speed about 10times minute
power requirement main motor power: 2.2kw(depend on final design)
hydraulic station power: 5.5kw (depend on final design)
diameter of shaft for rollers 72mm
controlling system mitsubishi plc & converter
quantity of feeding rollers about 3 stations for main rollers
weight of machine   about 3000kgs
size of machine about  1600mm×1600mm×1750mm
product application of crimping forming machine
the product from the roll forming machines is used as roof of building.
