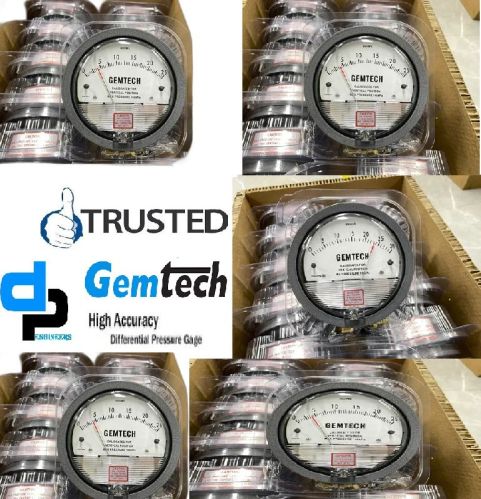

Differential Pressure Gauges GEMTECH Dpengineers 0-100 Pascal

Differential Pressure Gauges GEMTECH Dpengineers 0-100 Pascal

Having Vast Experience in The Relevant Industries,We Are Engaged in Providing a Broad Assortment of GEMTECH Gauge that is assemble in order to meet specific Demands of Customers. Moreover, a series of quality tests is performed on offered gauge to ensure a defect free delivery at client’s end. Clients can avail the Offered Range From us at Market Leading Prices within Stipulated time Frame.

Features:

Accuracy

High functionality

Long service life

Specifications:

We provide GEMTECH Magnehelic Gauge of series which is low in cost,diaphragm operated and differential pressure gauge

Owing to these features these are used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%

Besides,these are also applied for monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, cabinet purging and many others

We offer GEMTECH magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas

In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover

These have exterior finish with grey color to withstand 168 hour salt spray corrosion test

Technical Specifications:

Accuracy: ±2% of full scale (±3% on – 0, -100 Pa, -125 Pa, 10MM and ±4% on – 00, -60 Pa, -6MM Ranges), Throughout Range at 70°F (21.1°C)

Pressure Limits: -20 Hg. To 15 PSIG.† (-0.677 Bar to 1.034 Bar); MP Option

HP Option: 35 PSIG (2.41 Bar), 80 PSIG (5.52 Bar)

Over Pressure: Relief Plug Opens At Approximately 25 PSIG (1.72 Bar), Standard Gages Only

Temperature Limits: 20 to 140°F.* (-6.67 to 60°C)

Size: 4 (101.6 MM) Diameter Dial Face

Mounting Orientation: Diaphragm In Vertical Position, Consult Factory For

Process Connections: 1/8 Female NPT Duplicate High And Low Pressure Taps One Pair Side And One Pair Back

Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)

Other Position Orientations

Applications:

Filter Status

Duct Static Pressure

Clean Room Pressure

Building Pressure

Fan and Blower Pressure

Paint Booths

Dust Collectors

Glove Box Pressure

Bubbler Systems

Cabinet Purging
