guidance of our experts. Our offered printing machines are checked on diverse parameters so as to dispatch fault free range to the end user. Also, we are offering these printing machines to our customers on numerous specifications as per the needs of customers.
Improved function deployment
Patent technology to ensure 100% achievement in large printings combination;
The whole printer takes eco solvent printer�s mechanical precision and technology as production standard;
Printhead heating system, suitable for low temperature working environment in winter;
Adopt 4 or 8 pcs KM1024 printheads, with speed 80 square meter /h or 160 square meter/h;
Intelligent infrared heating system to speed up picture drying (optional).
Specifications

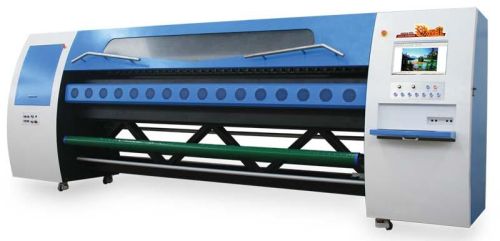

Model UltraColor K1024
Print head KONICA 1024 42 PL/14PL
Number of print head 4/8
Maximum print width 3.2M (126 inch)
Colour CMYK
Media Advertising banner, PVC, Mesh fabrics, Vinyl
Maximum print quality 360 x 720dpi/360 x 1440dpi
Auto media system Equipped
Auto cleaning system Positive pressure cleaning spray in ideal function
Image format Bitmap, TIFF, Quark Xpress
Colour management Superior ICC profile
Work flow RIP and print at the same time/Print after RIP
Print interface USB2.0
Ink type Solvent based ink
Software Allwin RIP, Photo print
Work station Microsoft Windows 2000 / XP
Operating environment 220V~(+10%)>15A, 50Hz/60Hz
Machine dimension 15ft x 3ft x 5ft
Wooden case dimension 17ft, 4ft, 6ft
Firing frequency 7.6Khz/12.5Khz
Print speed 2Pass 180 x 720dpi 160m2/h 240 x 720dpi 120m2/h
3pass 180 x 1080dpi 104m2/h 240 x 1080dpi 80m2/h
4Pass 180 x 1440dpi 80m2/h 240 x 1440dpi 60m2/h
