Dock Leveler

Listing ID #1994688

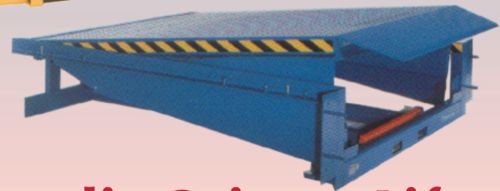

we introduced hydraulically operated dock leveler which includes
economically priced hydraulically dock leveler with manually operated
lip and the deluxe model with hydraulically operated lip. in the
standard design the dock has a travel of 300 mm above & 300 mm below
horizontal level. The standard platform sizes are 2150 x 1800mm,
2150mm x 2100mm, 2750mm x 1800mm, 2750mm x 2100mm.
usha self supporting dock leveler significantly improves your
transport efficiency. It bridges the gap between loading platform & the
different heights of lorries. A pit is made in loading dock in which
dock leveler fits. Various loading capacities from 3 tons to 20 tons are
available. dock leveler with 10 ton capacity can facilitate quick
loading operations by allowing forklifts with materials to travel
directly from loading platform into lorries / containers.
the lifting operation is by single or double circuit 415 v ac
hydraulic power pack fitted inside the leveler. The controls are by
up/down push button pendant.
while specifying dock leveler care should be taken regarding max
gradient (slope) of the dock leveler. This should be suitable for the
equipment e.g. hydraulic stacker which is to be used for loading
operation. where gradients are not suitable too high, scissor type dock
lifts will be more suitable. For our recommendation please send us the
detailed application at the address below :-
