Main Features :-

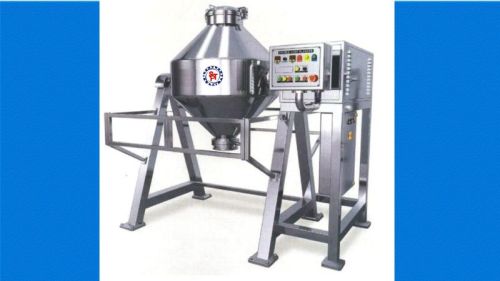

All Contact Parts SS 316 / 316L as per cGMP Standard.Double Cone shaped with cylindrical shell at centre & conical shape at both ends.Well balanced to avoid any excessive load on gearbox or motor.Baffle is provided for better mixing.Manhole with gasket is provided to fix the baffles and for ease of cleaning the shell.Charging and discharging is through a butterfly valve.A conical adaptor can be provided for fixing charging drum after butterfly valve.Inching arrangement can be provided.All Moving parts are enclosed in guards.A safely railing with a limit switch is provided for operator safety.ACVFD for variable speed
| Model | DCB- 50 | DCB- 100 | DCB- 250 | DCB- 500 | DCB- 1000 | DCB- 1500 | DCB- 2000 | DCB- 5000 | DCB- 6000 |
|---|---|---|---|---|---|---|---|---|---|
| Gross Volume in Ltrs | 50 | 100 | 250 | 500 | 1000 | 1500 | 2000 | 5000 | 6000 |
| Working Volume in Ltrs | 35 | 40 | 175 | 350 | 700 | 870 | 1400 | 3500 | 4200 |
| Motor (H.P.) | 1 | 1 | 2 | 3 | 5 | 7.5 | 15 | 20 | 20 |
| Speed rpm | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 |
| Discharge Valve inches | 4" | 6" | 6” | 6" | 6" | 10" | 12" | 12" | 12" |
| Overall width in mm | 1100 | 1400 | 1700 | 2000 | 2400 | 3200 | 3700 | 3900 | 4500 |
| Overall Depth in mm | 400 | 500 | 700 | 900 | 1100 | 1200 | 1300 | 2000 | 2500 |
