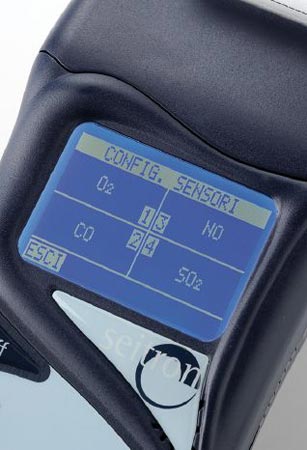

Automatic Electric Flue Gas Analyzer (Chemist), Feature : Accuracy, Battery Indicator, Digital Display

Driven TypeElectric
Automation GradeAutomatic
ApplicationCombustion Gas Anlysis
FeatureAccuracy, Battery Indicator, Digital Display
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location India only

Product Details

Number Of FlowerPortable Gas Analyzer
Availability0-5kg
ApplicationCombustion Gas Anlysis
Driven TypeElectric
FeatureAccuracy, Battery Indicator, Digital Display
Detected gasCO
Automation GradeAutomatic
Voltge6-9VDC

The company is one of the leading Manufacturers and Suppliers of Flue Gas Analyzer (Chemist) in Mumbai. The Flue Gas Analyzer (Chemist), offered by the company, is studded with numerous attractive features that not only enhances its performance but also makes it a widely popular product among the clients.
Up To 4 Gas Sensors For Measurement Of

O₂
CO (H₂ compensated)
NO
NO₂
SO₂

Flue Gas Analyzer (Chemist) Also Measures

Flue gas Temperature
Outdoor air temperature
Room temperature
Differential temperature
Draft and differential pressure
Ambient CO and NO

Values Calculated By Flue Gas Analyzer (Chemist)

CO₂
NOX
Boiler efficiency
Excess air
Heat stack loss

Features Of Flue Gas Analyzer (Chemist)

Compliant with EN 50379-1
Up to 4 measurement cells : O₂, CO/H₂, NO, NO₂ and SO₂
CO measurement cell with 1 PPM resolution and built in NOX/SOX filter
Pre-calibrated gas sensors, field replaceable
Flue gas and outdoor air temperature measurement
Draft and differential pressure measurement
Boiler efficiency calculation
Automatic detection of condensing boiler with efficiency calculation
CO₂, heat stack loss, excess air calculation
Ambient CO and NO measurement
Gas pipe tightness test
High accuracy (Â± 0.5 Pa) and resolution (0.1 Pa) draft measurement with external accessory
3 consecutive analyses with average calculation and result printout
Built in impact printer on plain paper (non thermal)
Internal memory for 300 analyses
Big blue (42 Ã� 60 mm) graphic LCD backlit with zoom feature
Rechargeable Lithium Ion batteries
External Charger/Power Supply with AC plug
Recharging time : 2 hours up to 90%
Up to 15 hours autonomy of continuous operation (no printouts)
Up to 40 analysis autonomy (with printouts)
Additional dilution pump for CO cell auto range, measurement up to 50,000 PPM
Automatic auto-zero with sampling probe in the stack
PC software on USB pen drive and USB cable for unlimited data storage on PC
Optional Bluetooth communication
Self diagnostic function with alarms on gas sensors end-of-life
180, 300, 750 mm flue gas sensor probes
220 mm flexible flue gas sensors sampling probe
External condensation trap and dust filter
Unbreakable stainless steel probe and hose connections
7 preprogrammed fuels, including pellets and wood
9 additional programmable fuels
7 different languages preprogrammed
Neoprene magnetic holster
User manual and calibration certificate
Dimensions : 307 Ã� 105 Ã� 96 mm
Weight : 1.1 Kg.

Additional Features Of Flue Gas Analyzer (Chemist)

Gas piping tightness test
High accuracy draft measurement
Firmware updates available for free

Range Available

CHEMIST 400N (O₂, CO/H₂, NO, NO₂) with built in impact printer, rechargeable Li-Ion batteries and dilution pump
CHEMIST 400S (O₂, CO/H₂, NO, SO₂) with built in impact printer, rechargeable Li-Ion batteries and dilution pump
Both Kits feature also: hard ABS case, power supply with plug, 300 mm flue gas sampling probe with 3 meters hose, water trap with dust filter, Pt 100 outdoor air temperature sensor, differential pressure kit, neoprene holster with magnets, printer paper roll, USB pen drive with software, USB PC connection cable, user manual and calibration certificate

Warranty

Chemist Analyzers offer 2 years warranty, including gas measurement cells which can be easily replaced by the user
With initial extra price it is possible to lengthen warranty term of 1 or 2 years, up to maximum of 4 years

Calibration Certificate

Chemist Analyzers are supplied with calibration certificate, 1 year validity
Customer may buy calibration certificates in each following year

Specifications

Measurement	Sensor	Range	Resolution	Accuracy
O2	Electrochemical sensor	0 .. 25.0% vol	0.1% vol	±0.2%vol
CO H₂ compensation	Electrochemical sensor	0 .. 8000 ppm	1 ppm	±10 ppm 0 .. 200 ppm ±5% measured value 201 .. 2000 ppm ±10% measured value 001 .. 8000 ppm
CO diluted	Electrochemical sensor	0.15 .. 5.00% vol	0.01 % vol	±20% measured value
NO	Electrochemical sensor	0 .. 5000 ppm	1 ppm	±5 ppm 0 .. 100 ppm ±5% measured value 101 .. 5000 ppm
NOX	Calculated	-	-	-
SO₂	Electrochemical sensor	0 .. 5000 ppm	1 ppm	±5 ppm 0 .. 100 ppm ±5% measured value 101 .. 5000 ppm
NO₂	Electrochemical sensor	0 .. 1000 ppm	1 ppm	±5 ppm 0 .. 100 ppm ±5% measured value 101 .. 1000 ppm
CO₂	Calculated	0..99.9 % vol	0.1% vol	-
Air temperature	Pt100 sensor	-20.0 .. 120.0 ^oC	0.1 ^oC	±0.5 ^oC (2)
Flue gas temperature	TcK sensor	-100.0 .. 1250.0 ^oC	0.1 ^oC	±0.5 ^oC 0 .. 100 ^oC ±0.5% measured value 101 .. 1250 ^oC (3)
Pressure (draught & differential)	Piezoelectric sensor	-10.00 .. 200.00 hP(4)	0.01 hpa	±1% measured value -10.00 .. -2.01 hPa ±2 Pa -200 .. 200 Pa ±1% measured value 2.01 .. 200.00 hPa
Differential Temperature	Calculated	0 .. 1250.0 ^oC	0.1 ^oC	-
Air index	Calculated	0.00 .. 9.50	0.01	-
Excess air	Calculated	0 .. 850 %	1 %	-
Stack loss	Calculated	0.0 .. 100.0 %	0.1 ^oC	-
Efficiency	Calculated	0.0 .. 100.0 %	0.1 ^oC	-
Efficiency (condensing)	Calculated	0.0 .. 120.0 %	0.1 ^oC	-
Smoke index	External instrument	0..9	-	-
