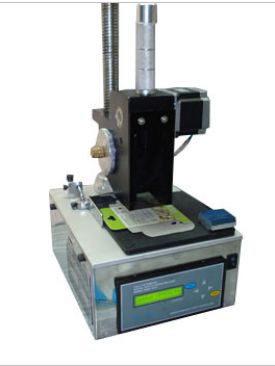

Electro Mechanical Table Top Coder

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

This is compact motorized intermittent coder for on-line or table top registered printing of Batch. No., Mfg. Date, Max Retail Price, etc. On any Intermittent. Specifications LCD based....

View More Details

Send Enquiry

Product Details

This is compact motorized intermittent coder for on-line or table top registered printing of Batch. No., Mfg. Date, Max Retail Price, etc. On any Intermittent.

Specifications

LCD based controller for DC stepper motor makes this model more reliable.
The design ensures trouble free printing with lowest maintenance.
Does not require pneumatic compressor for operations.
Can be printed on flat surfaces only like labels ,carton tin lid
Operation is manual or automatic depends upon operators efficiency.
Highly sophisticated stepper motor and accessories provide reliability, long life & speed up to 80 Impressions per minute.

Details

Coder Model	EMC-35- H	EMC-100- H
Supply Voltage	230 Vac + 10%, 15 VA	230 Vac + 10%, 30 VA
Printing Area	4 to 6 lines ( 35 X 35 mm)	6 to 8 lines (50 X 100 mm)
Printing Speed	Max. 80 imprints/min	Max. 60 imprints/min.
Printing Using	Easily changeable grooved/flat, rubber/ nylon stereos
Inking Medium	Special rechargeable ink cartridge / inkpot.
Printing Medium	Quick drying ink (Black, Violet, Red, Green, White*, etc)
Impressions	15,000 per 20 ml. Charge	10,000 per 60 ml. Charge
Weight	7 Kgs, 3 Kgs (Only head)	11 Kgs, 6 Kgs (Only head)
