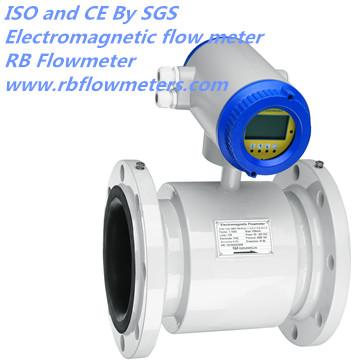

Electromagnetic flow meter, Brand Name : R&B

We are offering magnetic flow meter converter
rbefc series electromagnetic flow meter converter
general features
programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption
implementing 16 bits mcu, providing high integration and accuracy
full-digital processing, high noise resistance and reliable measurement
low emi switching power supply, providing wide mains range adaptability, high efficiency and low temperature rising
user-friendly operation interface
high definition lcd display with backlight and -20℃ - +70℃ temperature range
forward and reverse measurement
three independent 10-digit totalizer: forward, reverse and net totalizer, convenient for metering or billing
rs485 interface supporting up to 2km distance at 14400 bps communication
intelligent empty pipe detection and electrodes resistance measurement diagnosing empty pipe and electrodes contamination accurately.
implementing ‘rate-of-change limit’ technology to eliminate sharp electrical noise contained in the flow signal and stabilize the display and outputs
totalizer remote control function, providing a contact for starting and stopping totalizing which is convenient for calibration synchronization or batch processing
system self-diagnosis function
non-volatile memory, securing parameter settings and measurement data
optional real-time clock, power-failure and history data logging function ,storing up to 30 days measurement records
two versions available: remote and compact
