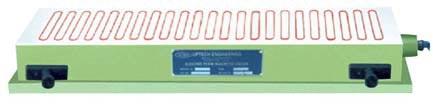

ELECTROMAGNETIC RECTANGULAR CHUCK

Work holding device for surface grinding machines.
Magnetic flux is generated by one or two coils.
Accuracy as per IS : 8710 - 1978.
Magnetic pull is as per IS specification.
Mag - D - Mag with variable control unit allows to
neutralize the residual magnetism precisely , using a
microprocessor based control circuitry.
Variable supply to vary power which helps in alignment & removing of warpages of thin jobs.
Chuck is tested for Slippering force, Waterproof test,
Temperature rise test, Electrical & Demagnetizing tests.
We also manufacture Special chucks to suit individual requirements.
Good quality & standard electrical accessories.
Sr. No. Size (mm) Pole Gap (mm) Pole Pitch Cat No.
1. 450 L x 150 W x 100 H 15 40 UC-71401
2. 500 Lx 200 W x 100 H 15 40 UC-71402
3. 600 Lx 200 W x 100 H 15 40 UC-71403
4. 600 Lx 250 W x 100 H 15 40 UC-71404
5. 750 Lx 250 W x 100 H 15 40 UC-71405
6. 900 Lx 250 W x 100 H 15 40 UC-71406
7. 600 Lx 300 W x 100 H 15 40 UC-71407
8. 750 Lx 300 W x 100 H 15 40 UC-71408
9. 900 Lx 300 W x 100 H 15 40 UC-71409
10. 1000 Lx 250 W x 110 H 15 40 UC-71410
11. 1000 Lx 300 W x 110 H 15 40 UC-71411
12. 1500 Lx 250 W x 110 H 15 40 UC-71412
13. 1500 Lx 300 W x 110 H 15 40 UC-71413
14. 1500 Lx 400 W x 110 H 15 40 UC-71414
15A. MAG d- MAG WITH VARIABLE Upto 1000L 2 Amp.
CONTROL UNIT Upto 1500L 3 Amp.
15B. MAG d- MAG WITH VARIABLE Upto 1000L 2 Amp.
CONTROL UNIT & BATTERY BACK UP (20MIN) Upto 1500L 3 Amp.
