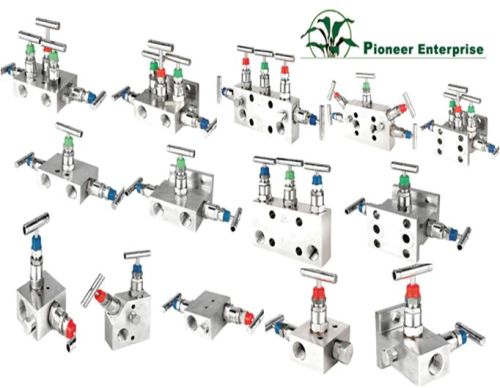

FAV (TM) Manifold Valves

We offer manifolds valves.

introduction

pioneer instrumentation manifold valves is designed for regulation and management of instrumentation, process and control systems. The functions of manifold valves include pressure isolation, process equalizing, draining and venting and custody transfer,

variety

a wide array of configurations are available such as 2 way manifold valves , 3 way manifold valves and 5 way manifold valves we also manufacture customized manifold valves in various styles , shapes and sizes.

how does instrumentation manifold valves work ?

pioneer instrument manifold valves comprises of isolation, drain vent and equalizing valve which are use to control instrumentation system. Different configurations of manifold valves offer different options for isolation, drain vent and equalizing.

materials available

the most widely used instrumentation manifold valve are ss 316 .they is also available in stainless steel 304, monel, high duty bronze, and hastelloy.

manufacturing process

instrument manifold valves are manufactured from stainless steel barstock with choice of choice of ptfe packing. Shroud with colour identification help in identification of spindle in manifold valves

application

instrumentation manifold valves are used in almost all application that involves fluid power for instrumentation and process control. Pioneer instrument manifold valves has been specifically designed for use on instrumentation, process and control systems, together with equipment employed in oil and gas, marine and shipping, chemical, chromatography, petroleum, power generation and pulp & paper plants.

advantages of pioneer instrumentation manifold valve ?

bar stock construction
bonnet-to-body-seat, metal-to-metal seal eliminates the need for o-ring seals.
Shroud with colour identification
handle: t-bar metal (standard) or circular plastic optional.
Double bonnet or single bonnet (optional)
optional high temperature packing for compatibility to 1000 °f on certain models.
