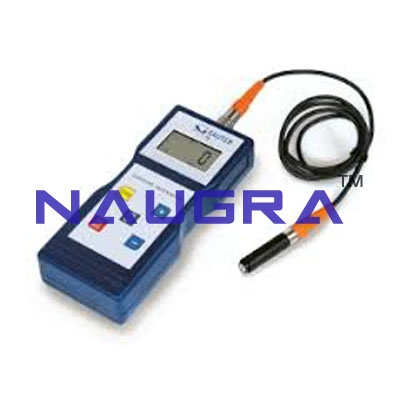

Ferrous Digital Coating Thickness Gauge

Description and Specification for Lab Tenders

Digital Coating Thickness Gauge (Ferrous / Non Ferrous).

Application : Used to check the coatings as chrome, paint, galvanizing, electroplating on Non Ferrous work peices. Used to check non ferrous coating on ferrous work peices. Used to check non ferrous coatings on non ferrous work peice as aluminum, copper, brass etc.

Technical Details: Alternate names Dry Film Thickness Guage ( DFT Meter ) Alternate Name Elcometer Oerating principle magnetic induction/eddy current (F/NF) Measuring range 0-1000um Resolution 0.1/1 Accuracy ±1-3%n or ±2.5um Min. measuring area 6mm Min. sample thickness 0.3mm Battery indicator low battery indicator Metric/ imperial convertible Power supply 4x1.5V AA (UM-3) battery Auto power off Operating conditions 0 to 45o Dimensions 160x68x32mm weight 250g(not including battery) Optional accessories other range 0-200um to 15000um   Packing Plastic Box Packing Guarantee 6 Months Calibration Optional
