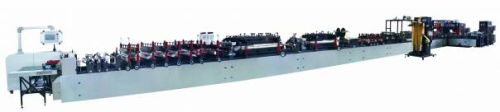

BOPP Flat Bottom Pouch

Function: 2lane quad flat bottom pouch with zipper bags with pocket zipper bags.
2lane quad flat bottom pouch without zipper bags.
4 side seal with zipper bags
4 side seal without zipper bags
2lane 3-side-seal with zipper bags
3-side-seal without zipper bags
double unwind catch pictures automatically
imported robot arm transport sides gusset film
speed：80shorts for one minute.
Min. To max. Bag size:200--1100mm(height), 100--400mm(width), side gusset and bottom gusset open size:40--220mm.
Yield: more than 96%.
System: japan panasonic plc, two separate control system and automatic touch screen,controlled with 14 servo motor and imported robot arm feeding side gusset
model no.jdm1200-sfl main specification
scope of application function: 2 lane quad flat bottom pouch with zipper pocket zipper,
2 lane quad flat bottom pouch without zipper,
4 side seal with zipper bags.
Material: bopp, cpp, pet, pe, nylon, aluminum-plated paper-plastic laminated film
original film size: max. Width 1220mm, max. Diameter: ¢800mm(paper core diameter ¢76mm)
dimension of side film, bottom film: width 380mm,max. Diameter: ¢ 600mm
size and speed of bag-making bagging speed:10~80 shotsmin(depending on bag size, film materials, and other factors to set reasonable speed)
bag size:
single lane : length=280~1100mm,width=90~400mm, wide side=25~110mm,bottom depth=25~110mm
double lane: length=180~530mm,width=90~400mm, wide side=25~70mm,bottom depth=25~70mm
driving type(total: 14sets panasonic servo motor driving, 1set imported robot arm) main drive: shaft eccentricity
main motor: 5kw japan panasonic servo motor
infeeding:9 groups of japan panasonic servo motor
double cutter:2 groups of japan panasonic servo motor
side film infeeding :2sets of japan panasonic servo motor
