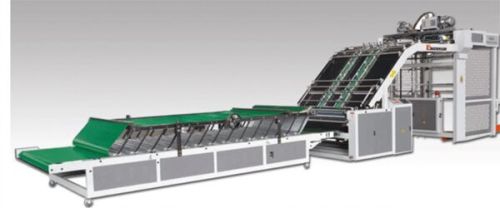

Flute Laminator Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

SPECIFICATIONS The machine adopts unique pressing spring front lay registration design complan with PLC control system with makes run at high lamination precession and low rate of breaking down. The machine uses frequency on verter for speed regulation, PLC central simulation to digit program system. Double servo motors are used to control bottom sheets to get to the front lay timely and accurately. Thus the machine accuracy is ensures even in operation adjusting condition.

View More Details

Send Enquiry

Company Information

AEC Machinery Company Pvt Ltd

Focal Point, Amritsar, Punjab

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MODEL	BZJFL 1300	BZJFL 1450	BZJFL 1600
Max Sheet Size	1300 X 1100 mm	1450 X 1300 mm	1600 X 1300 mm
Min Sheet Size	400 X 400 mm	400 X 400 mm	400 X 400 mm
Max Speed	5000 Sheets / h	5000 Sheets / h	5000 Sheets / h
Total Power	13 Kw	13 Kw	13 Kw
Overall Dimension	12000 X 2250 X 2855 mm	12000 X 2250 mm X 2855 mm	12000 X 2250 X 2855 mm
