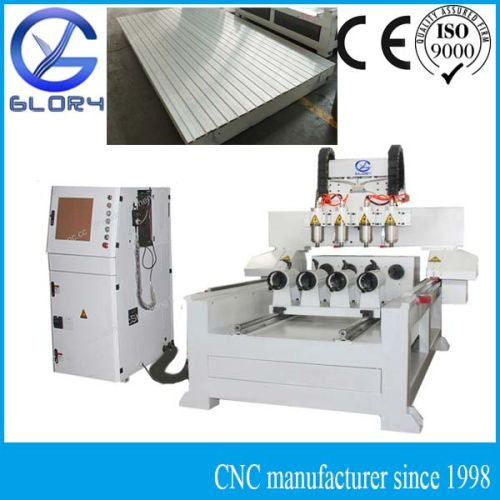

Four Head Multi Function CNC Router

We are offering four head multi function cnc router.
Highlight:
t-slot table is added above the rotary axes. So when you need to engrave the cylinders, just unscrew and remove the t-slot table. When you need to engrave the plane board or some other rare shaped work piece, just put the rotary axes to the end side and install the t-slot table. Combined two functions together, this machine is quite worthwhile.
Key features:
1. Seamless steel lathe bed
2. Germany ball screw
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Manual oil-injection system
8. Dsp operating system
9. Gantry movement
10. High soft electric cables
11. French schneider for small electric parts
12. Water-cooling system
13. Four rotary axes can work independently or synchronously
ideal for:
1. Timberwoodfoambamboo cylinders, etc.
2. Plane board and rare shaped work piece with material like timber, mdf, plastics, soft metal, acrylic and so on.
Processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
Specification gy-k1212-4
working diameter 125mm
working length 1000mm
clearance
(z axis) 300mm for rotary axis
200mm for t-slot table
machine dimension 1800*1450*1450mm
spindle 2.2kw
spindle speed adjustable 0-24,000 rpm
tool change manual tool-change
drive system
(x & y axes) helical rack & pinion
linear guide taiwan hiwin
drive system
(z axis) germany ball screw
drive motors stepper motors
inverter fuling
driver yako
command g code
cutter diameter φ3.175-φ12.7mm
maximum idling speed 35mmin
resolution 0.01mm
fixing by clamp
cooling mode water-cooled
controller dsp handle
power requirements 3-phase 380v50hz
custom sizes and upgrades for the components are available on request.
