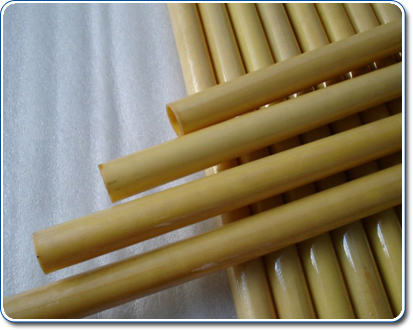

VOLCO FRP Tube

Get Latest Price

Sold By : VOLCO INDUSTRIES.

Send Inquiry

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Product Overview

Preferred Buyer From : All over the world

FRP TUBE are use in Dry type / Power / transformers, Switchgear, Chocks, Cable trays, power resistor, operating discharge rod, for electrical insulation application for Winding applications as insulation properties. Available in Polyester and Epoxy resin With class F 155 °C

Class H in epoxy resin available on customize requirements

Matrix	Units	Epoxy	Epoxy
Reinforcement		Glass Cloth	Glass Cloth
Standards	IEC 61 212-3-1 NEMA LI-1	EPGC 22 G11	EPGC 21 G10
Form of delivery (mm) Dia		1220 to 6000 mm length 10 mm to 1000 mm dia	1220 to 6000 mm length 10 mm to 1000 mm dia

Density		1.8	1.8
Water Absorbtion %		0.3	0.4
Axial compressive Strength MPa		180	160
Cohesion between layers, MPa		300	200
Dissipation factor		0.02	0.03
Permittivity at 250V/50Hz/25⁰C		3.1	3.5
Electrical Strength Flatewise KV/MM Edgewise KV		10 40	6 40
Insulation Resistance Ohms		1 x 10^8	1 x 10^4
